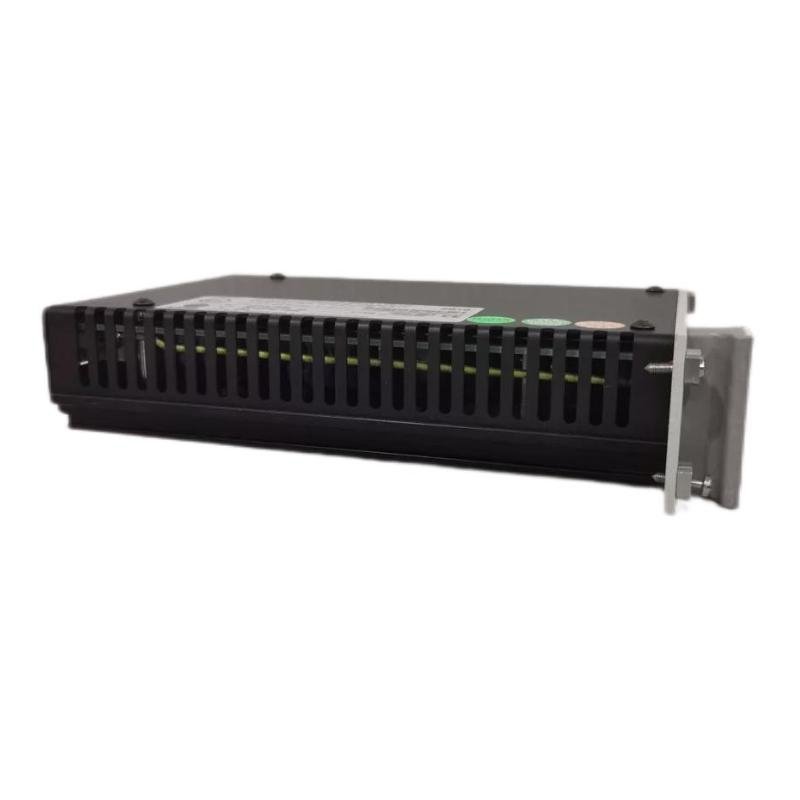

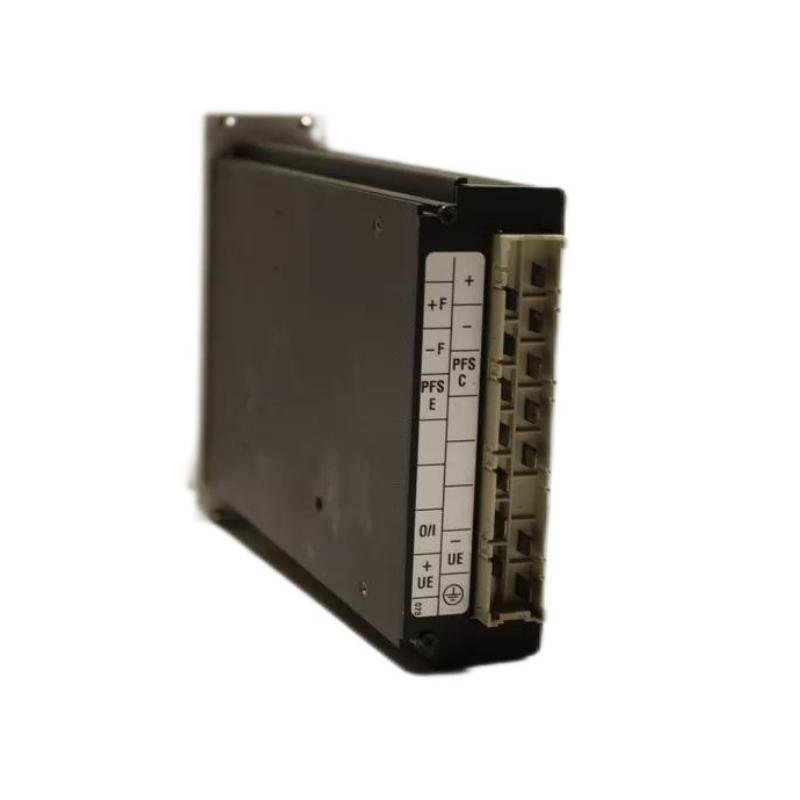

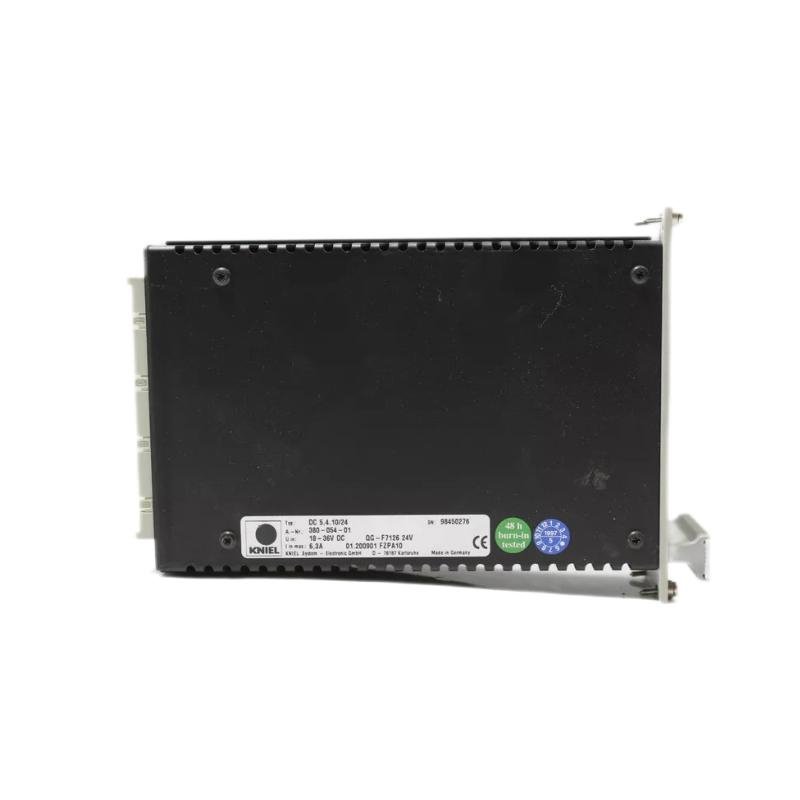

Hima F7126 Power Module
Manufacturer: HIMA
Product Number: F7126
Category: Power Module (H51q safety systems)
Type: DC/DC converter
Input Voltage: 24 VDC
Output Voltage: 5 VDC
System Compatibility: HIMA H51q safety systems
Product Description
The HIMA F7126 Power Supply Module is a high-performance DC/DC converter designed to supply 5 VDC power to automation systems from a 24 VDC input source. Engineered for use in HIMA’s H51q safety systems, this module ensures reliable and stable power delivery, featuring galvanic isolation between input and output, overvoltage protection, and current limitation. Its robust design and safety features make it ideal for critical industrial applications requiring dependable power supply solutions.
Key Features
-
DC/DC Conversion with Galvanic Isolation–Provides safe isolation between input and output voltages, enhancing system safety.
-

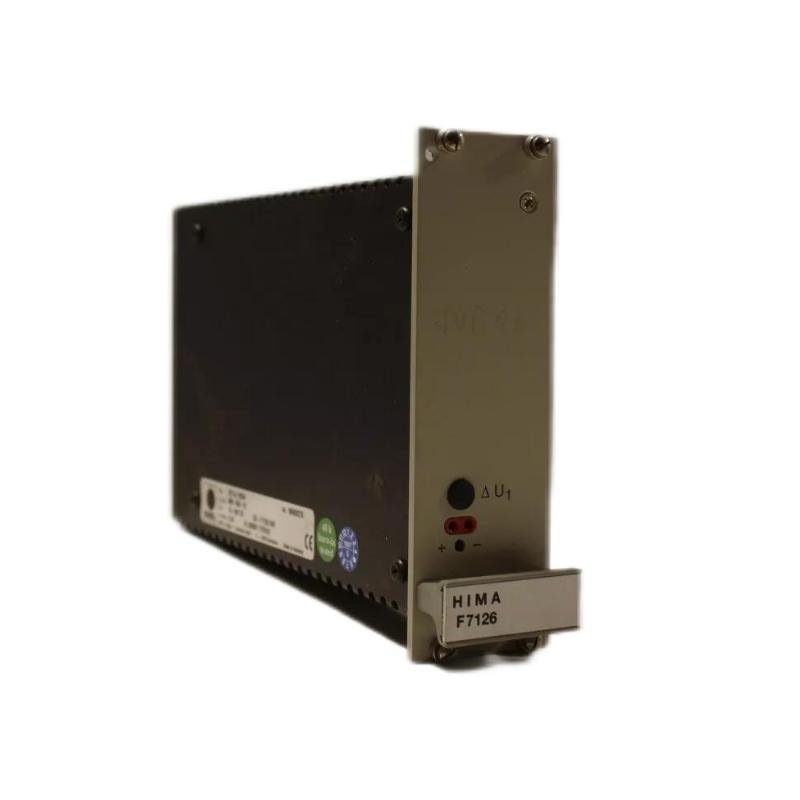

Adjustable Output Voltage–Front panel includes a test socket and potentiometer for fine-tuning the output voltage.
-
Overvoltage Protection–Protects connected equipment by limiting output voltage to a safe threshold.
-
Current Limitation–Prevents damage by limiting output current during overload conditions.
-
Short-Circuit Proof Output–Ensures continuous operation even in the event of output short circuits.
-
Redundant Operation Compatibility–Designed for use in redundant configurations with minimal output voltage deviation.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Space requirement：8 TE |
| Weight | 0.58 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (tolerance: -15% to +20%) |
| Input Ripple | < 15% |
| Primary Fuse | 6.3 A slow-blow |
| Output Voltage | 5 VDC ± 0.5 V (adjustable) |
| Factory Adjustment | 5.4 VDC ± 0.025 V |
| Output Current | 10 A |
| Current Limitation | Approx. 13 A |
| Overvoltage Protection | Set to 6.5 V ± 0.5 V |
| Efficiency | ≥ 77% |
| Interference Limit | Class B according to VDE 0871/0877 |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | HIMA H51q safety systems |
| Mounting | Rack-mounted (8 SU width) |
Industry Applications
-
Industrial Automation–Supplies stable power to control systems in manufacturing and processing industries.
-
Safety Systems–Integral component in safety-related control systems requiring reliable power supply.
-
Energy Sector–Powers control modules in power generation and distribution facilities.
-
Chemical and Petrochemical–Ensures reliable operation of safety and control systems in hazardous environments.
-
Transportation–Supports control systems in railways and other transportation infrastructure.
The HIMA F7126 Power Supply Module is a reliable and efficient solution for supplying 5 VDC power in industrial automation and safety systems. Its robust design, safety features, and compatibility with HIMA’s H51q systems make it a preferred choice for critical applications requiring dependable power delivery.
