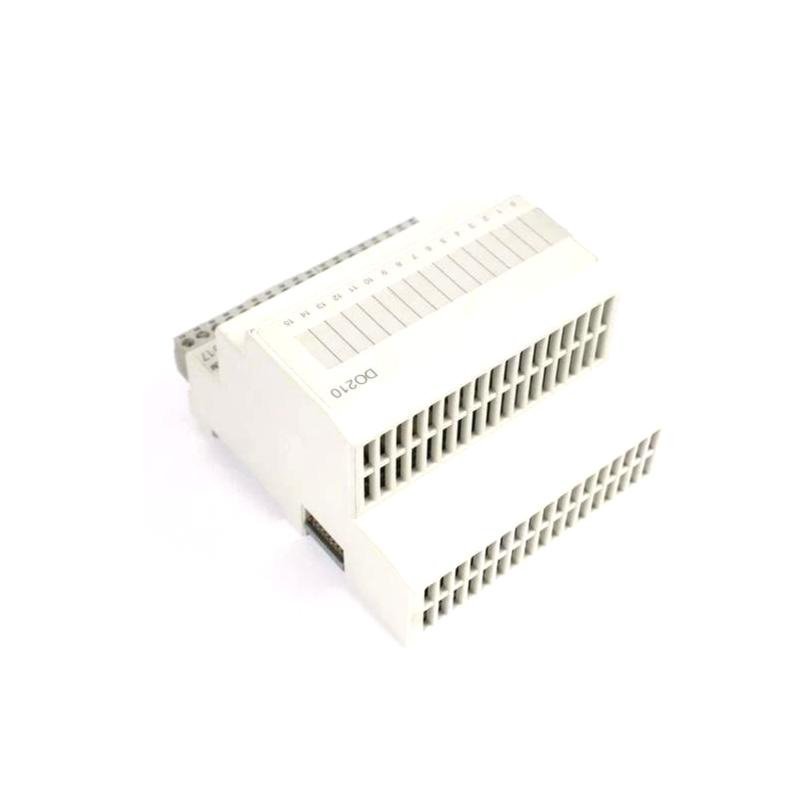

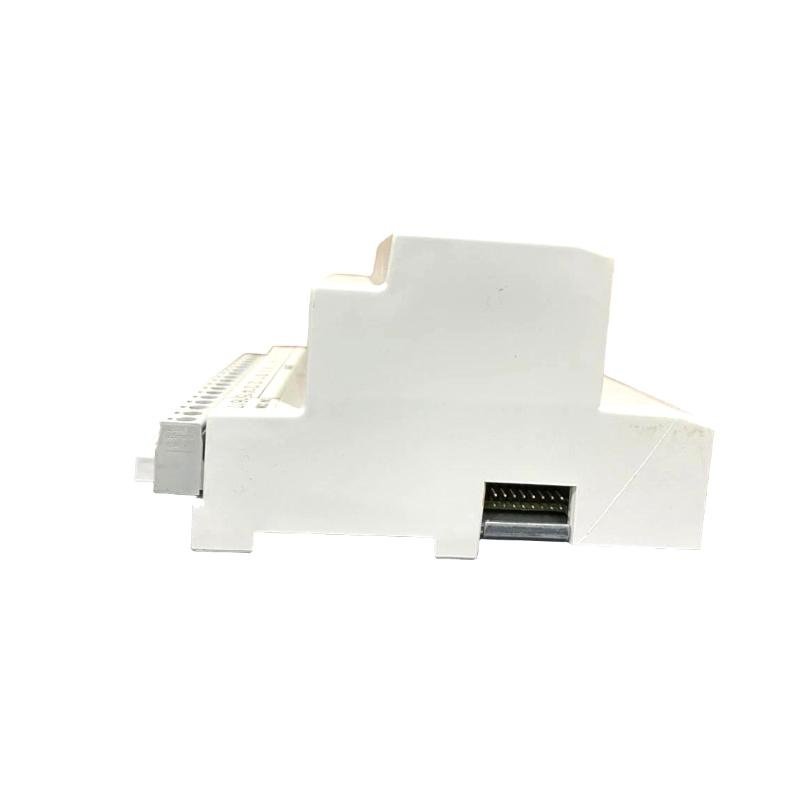

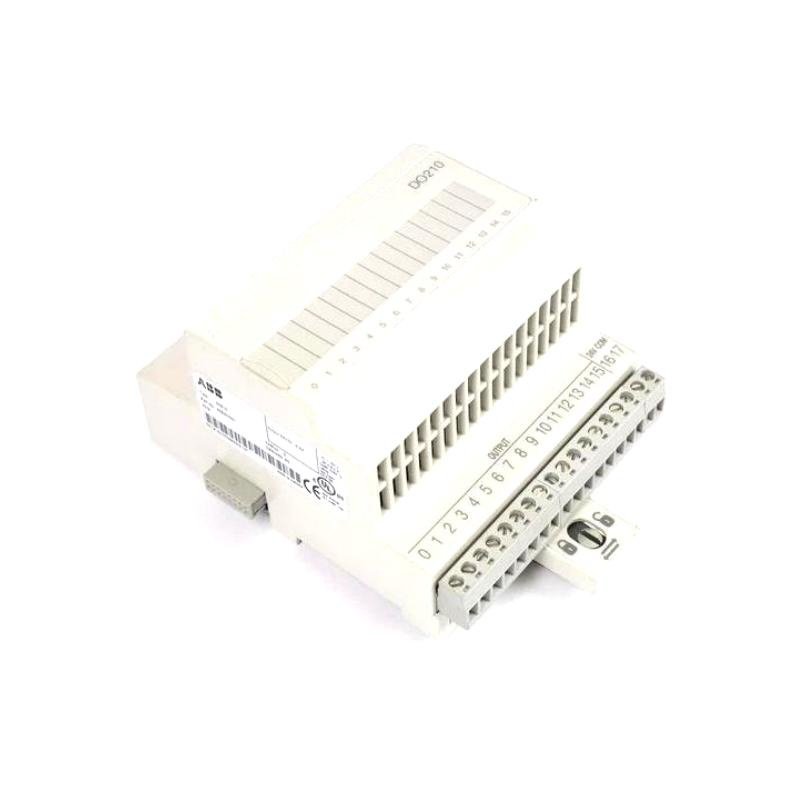

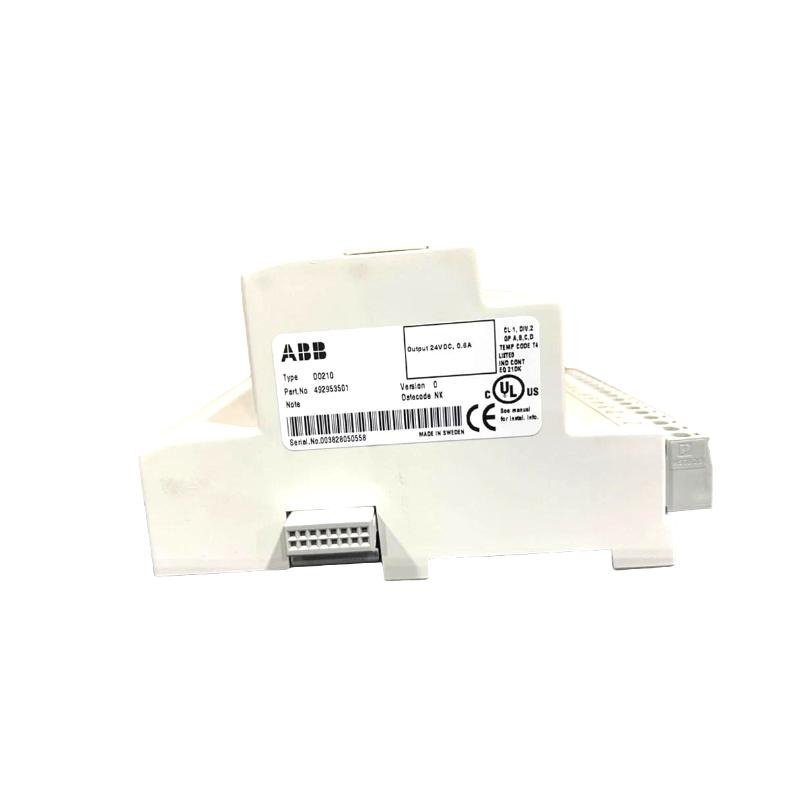

ABB DO210 Digital Output Unit

The ABB DO210 Digital Output Unit is a 16-channel digital output module designed for use within ABB’s Advant Controller family and other compatible automation systems. It provides reliable and isolated output switching for digital signals used in industrial control applications. This unit is capable of controlling actuators such as solenoids, contactors, and indicator lamps with high precision and response speed. The DO210 ensures robust performance in demanding environments and offers clear channel diagnostics for enhanced maintainability.

Key Features

• 16 Digital Output Channels–Supports high-density signal output in a compact form

• Galvanic Isolation–Ensures electrical separation between control logic and field circuits

• High-Speed Switching–Suitable for time-critical automation tasks

• Output Protection–Includes overvoltage and short-circuit protection per channel

• Status Indicators–Channel-level LEDs for quick diagnostics and monitoring

• Advant System Integration–Fully compatible with ABB Advant Controller systems

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Power Generation–Controls breakers, contactors, and logic interlocks in turbine systems

• Process Automation–Drives solenoids, alarms, and output devices in chemical and refining plants

• Water Treatment–Manages pump and valve actuators in treatment facilities

• Metals & Mining–Controls relays and signaling devices in rugged field conditions

• Manufacturing Automation–Interfaces with machinery and factory automation outputs

The ABB DO210 Digital Output Unit delivers reliable and efficient control of field devices in a wide range of industrial applications. Its robust design, electrical isolation, and system compatibility make it a dependable choice for digital output signal control within ABB automation architectures.
