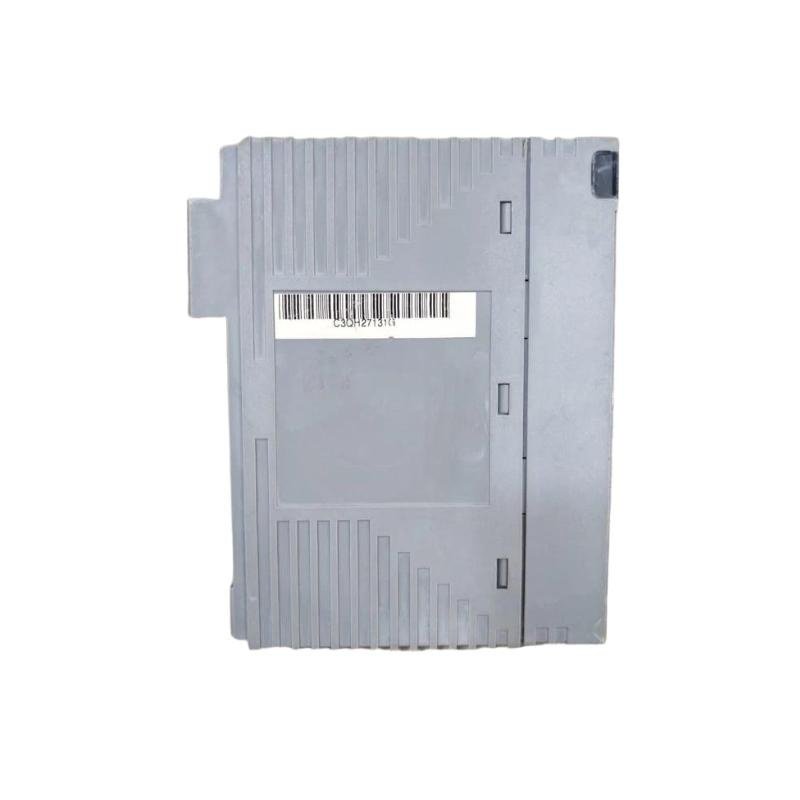

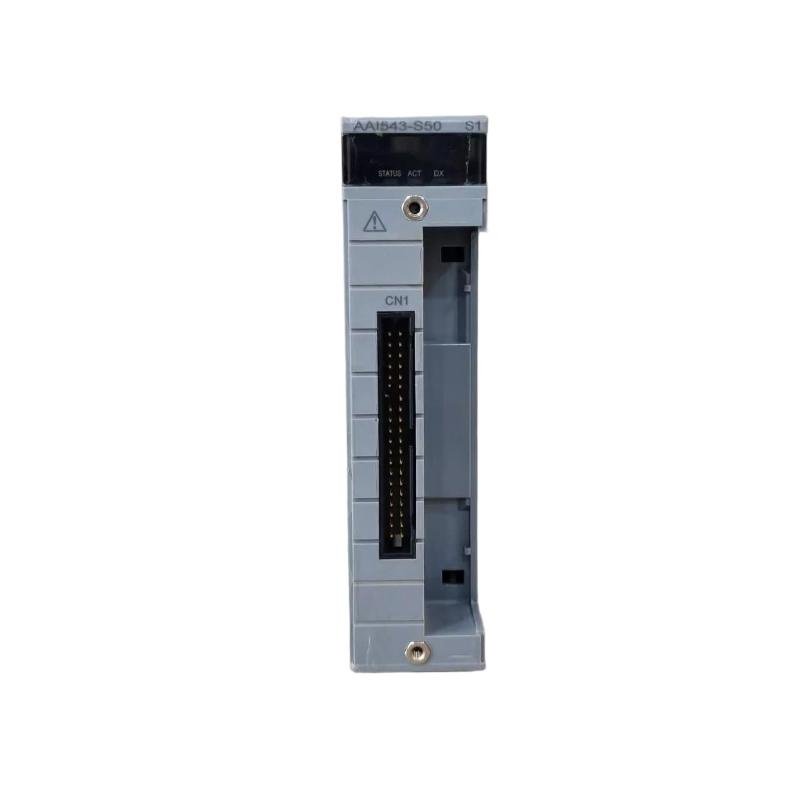

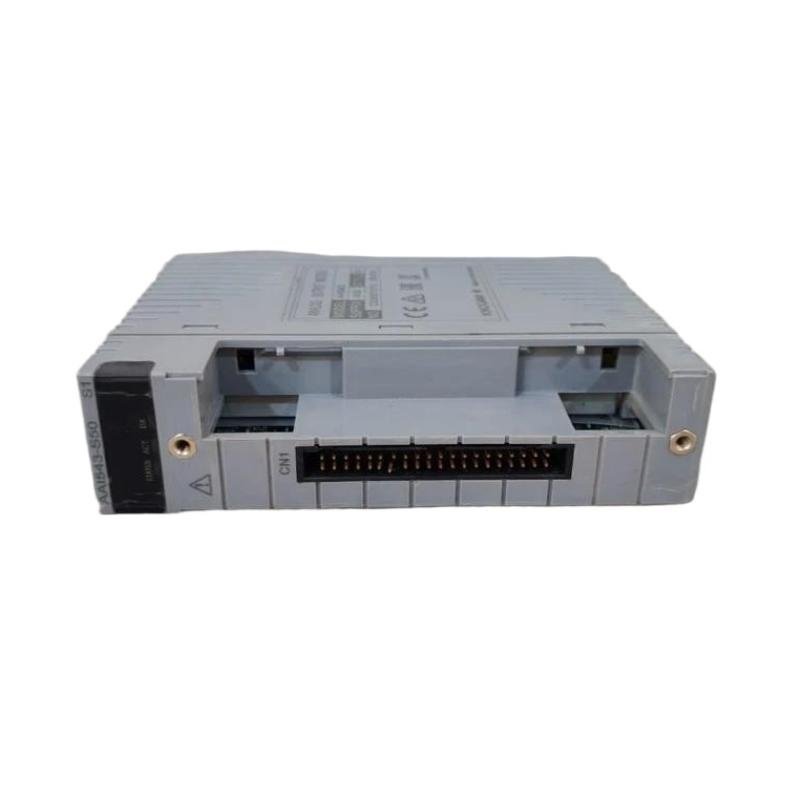

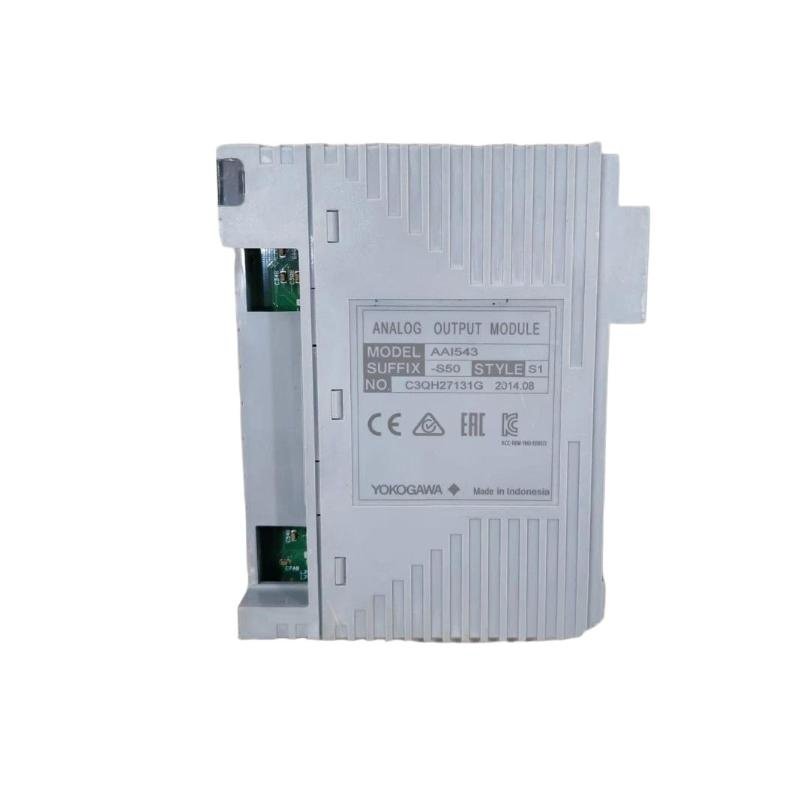

Yokogawa AAI543-S50 S1 Analog Output Module
Manufacturer: Yokogawa
Product Number: AAI543-S50 S1
Category: 8-channel Analog Output Module (CENTUM VP, ProSafe-RS)
Number of Channels: 8
Output Signal: 4-20 mA
Resolution: 16-bit
Application: Controlling valves, actuators, and other field devices requiring precise analog control
Product Description
The Yokogawa AAI543-S50 S1 is an 8-channel analog output module designed for use with CENTUM VP and ProSafe-RS control systems. It delivers accurate and stable 4–20 mA analog current outputs for controlling valves, actuators, and other field devices requiring analog signals.
Featuring high resolution, excellent isolation, and robust diagnostics, this module supports reliable operation in harsh industrial environments and safety-critical applications.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
Output Specifications
| Item | Specification |
|---|---|
| Number of Channels | 8 |
| Output Type | Analog current output (4–20 mA) |
| Load Resistance | 0 to 600 Ω |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Update Cycle | 20 ms (per channel) |
| Isolation | Channel-to-channel and channel-to-ground isolated |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10 to 57 Hz, 0.075 mm amplitude |
| Shock Resistance | 15 G for 11 ms (half sine pulse) |
Power Requirements
| Item | Specification |
|---|---|
| Power Supply | Supplied from baseplate |
| Power Consumption | Approx. 4.5 W |
Industry Applications
| Industry | Use Case |
|---|---|
| Process Automation | Precise control of valves and actuators in process plants |
| Oil & Gas | Reliable analog output for field device control |
| Power Generation | Accurate actuator control for turbines and auxiliary equipment |
| Chemical Processing | Stable analog outputs for reaction and flow control |
| Water and Wastewater | Control of pumps, valves, and treatment processes |
The Yokogawa AAI543-S50 S1 Analog Output Module provides a reliable and precise 8-channel analog current output solution for CENTUM VP and ProSafe-RS systems. Its robust design and advanced diagnostics ensure stable operation in demanding industrial and safety-critical environments.
