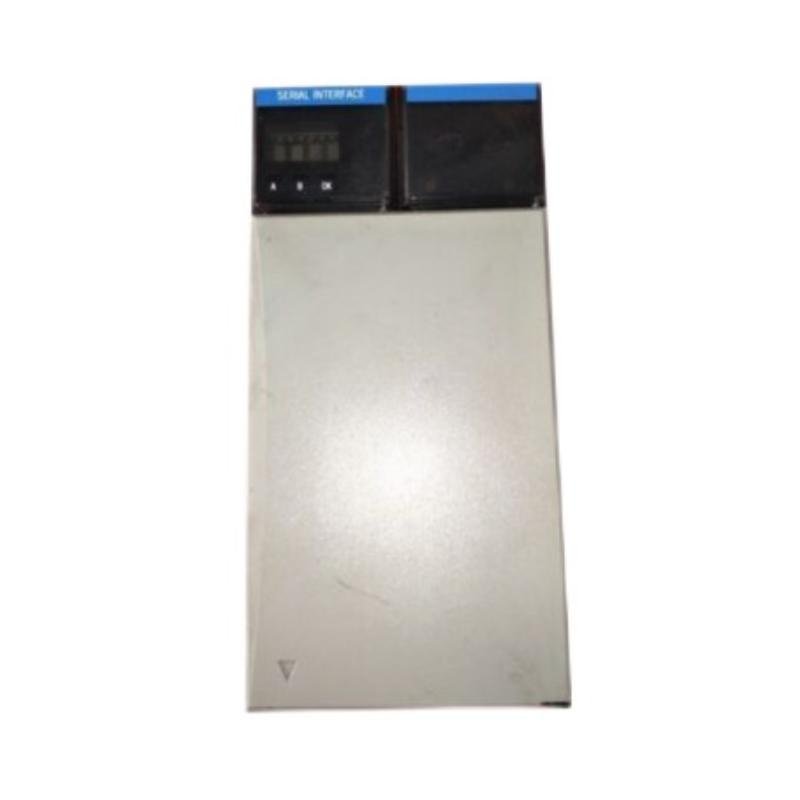

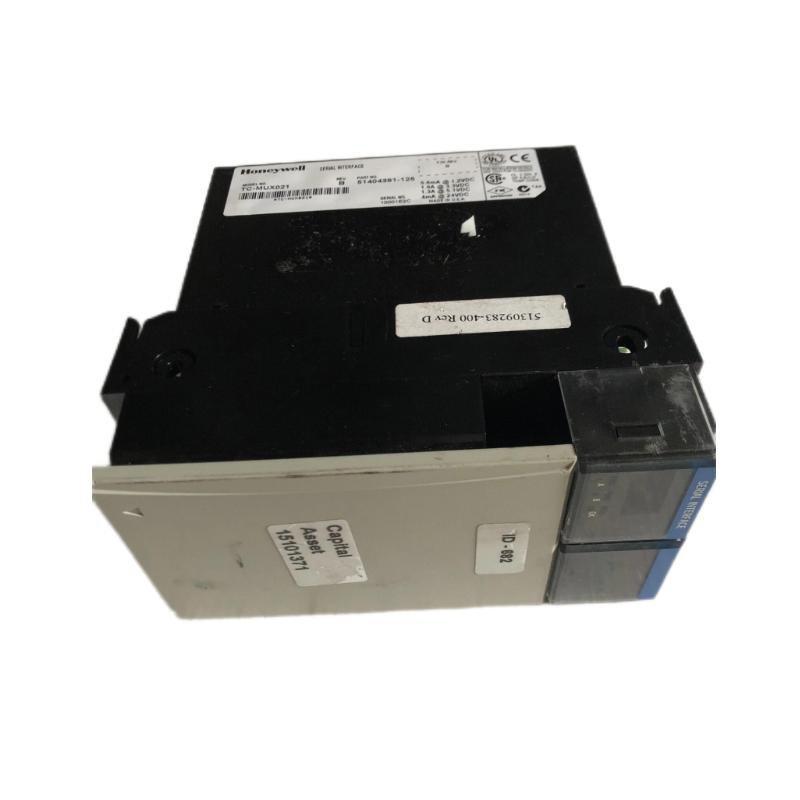

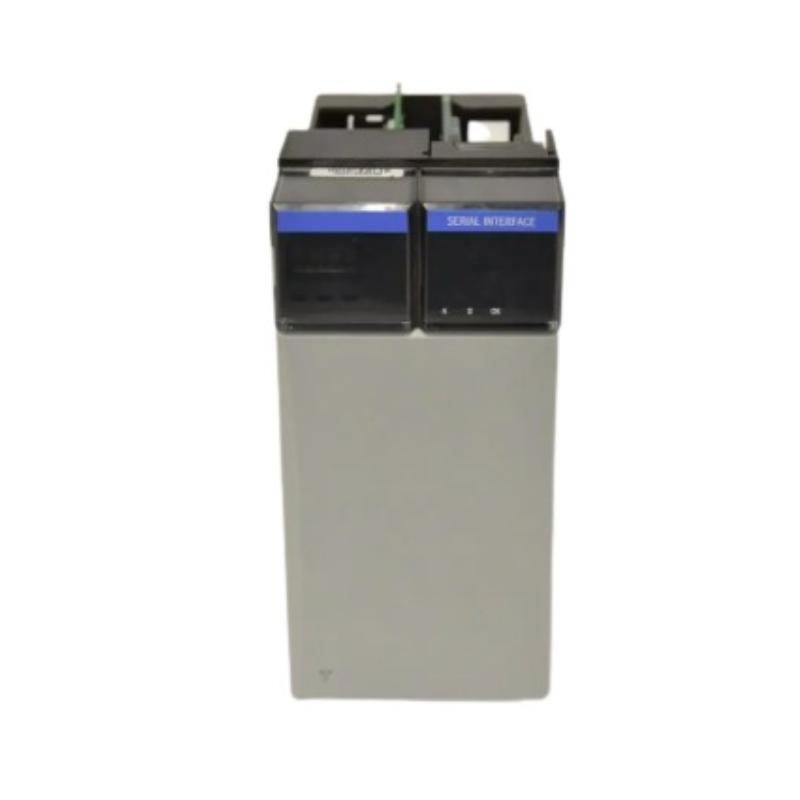

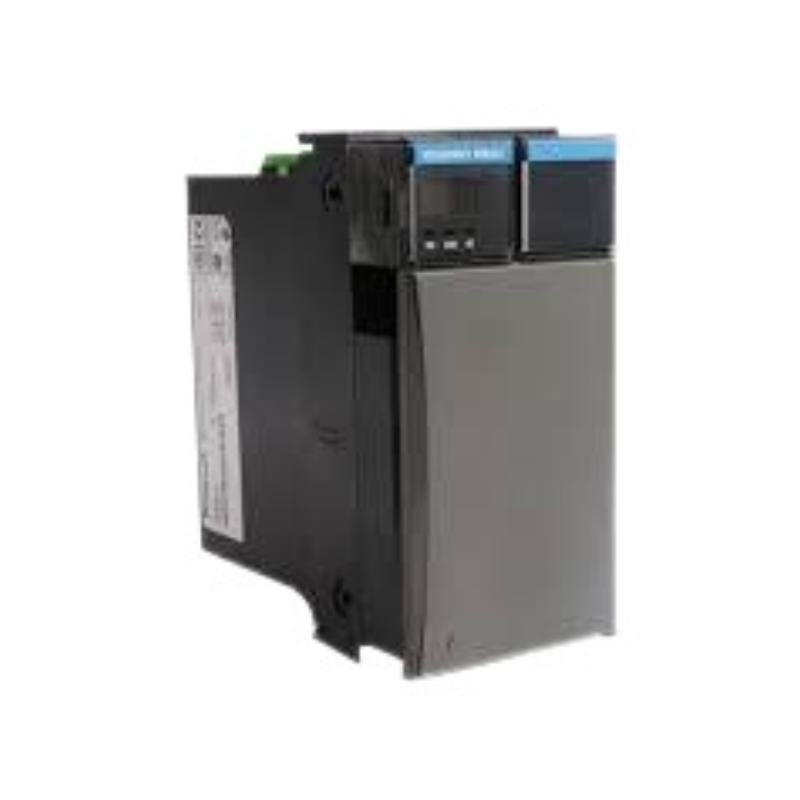

Honeywell TC-MUX021 Experion LS Serial Interface Module
Manufacturer: Honeywell
Product Number: TC-MUX021
Category: Experion LS Serial Interface Module
System Compatibility: Honeywell Experion LS (Legacy Systems) platform
Function: Integrates serial communication devices, enabling seamless data transfer between serial devices and control system
Product Description
The Honeywell TC-MUX021 Experion LS Serial Interface Module is an essential component designed for integrating serial communication devices into Honeywell’s Experion LS (Legacy Systems) platform. This module allows seamless data transfer between the Experion LS control system and external serial devices, ensuring reliable, real-time monitoring and control for various industrial applications. It supports multiple serial communication protocols, including RS-232, RS-485, and Modbus, allowing for flexible interfacing with a wide range of field devices such as sensors, actuators, and programmable logic controllers (PLCs).
With a robust and compact design, the TC-MUX021 is built to meet the demanding requirements of industrial environments. It is ideal for applications where multiple serial devices need to be connected to the control system, ensuring continuous and accurate data exchange.
Key Features
-
Multi-Protocol Support: Compatible with RS-232, RS-485, and Modbus protocols for versatile device integration.
-
Real-Time Data Transfer: Ensures reliable, real-time communication with serial devices, enhancing system performance and data accuracy.
-
High Channel Density: Supports up to 8 serial communication channels for maximum flexibility.
-
Compact and Rugged Design: Built for harsh industrial environments, ensuring reliable operation in a variety of settings.
-
Seamless Integration: Easily integrates with Honeywell Experion LS and other control systems for efficient data management.
-
User-Friendly Configuration: Simple configuration and management using Honeywell’s configuration tools, reducing setup time and complexity.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 108 × 87 × 78 mm |
| Weight | 0.59 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | TC-MUX021 |
| Part Number | – |
| Module Type | Serial Interface Module |
| Channels | 8 Serial Channels |
| Mounting | DIN Rail or Panel Mount |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | –40°C to +70°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell Experion LS |
| Communication Protocol | RS-232, RS-485, Modbus |
| Configuration Tool | Honeywell Engineering Tools |
| Firmware Upgradeable | Yes |
Industry Applications
-
Manufacturing: Facilitates communication with serial devices such as PLCs, SCADA systems, and remote I/O devices in automated manufacturing systems.
-
Oil & Gas: Enables data exchange with field equipment like flow meters, pressure transmitters, and controllers for monitoring and control.
-
Power Generation: Connects serial communication devices in power plants, ensuring accurate monitoring of critical systems.
-
Water & Wastewater Treatment: Integrates with sensors and controllers in water treatment facilities to monitor and manage operations.
-
Building Automation: Supports communication with HVAC, lighting, and security systems for integrated building management.
The Honeywell TC-MUX021 Experion LS Serial Interface Module is a versatile and reliable solution for integrating serial devices into Honeywell’s Experion LS systems. Its multi-protocol support, real-time data transfer, and compact design make it an ideal choice for a wide range of industrial applications, ensuring seamless communication and enhanced system performance.
