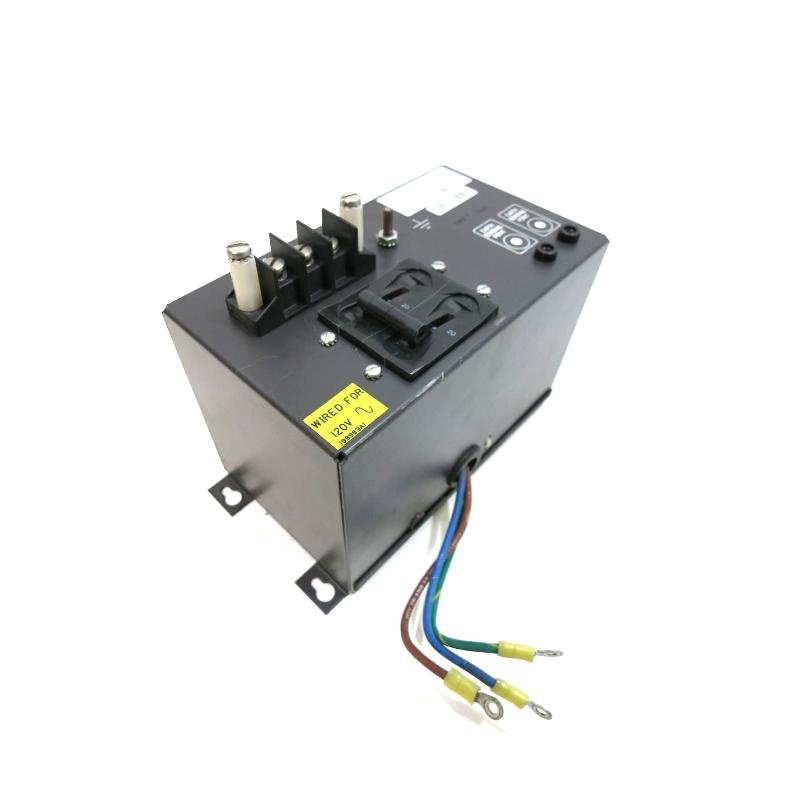

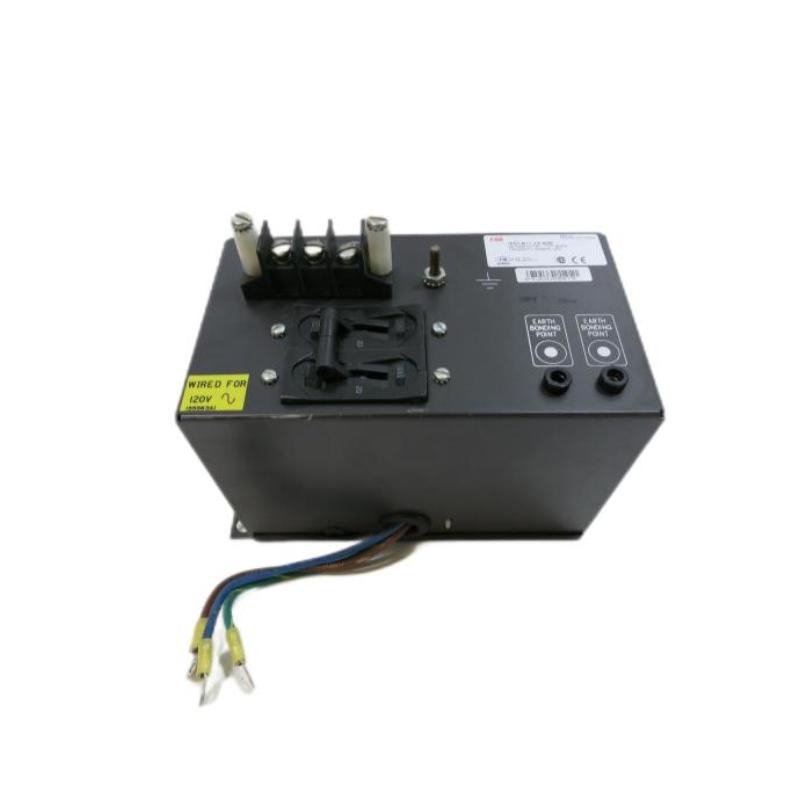

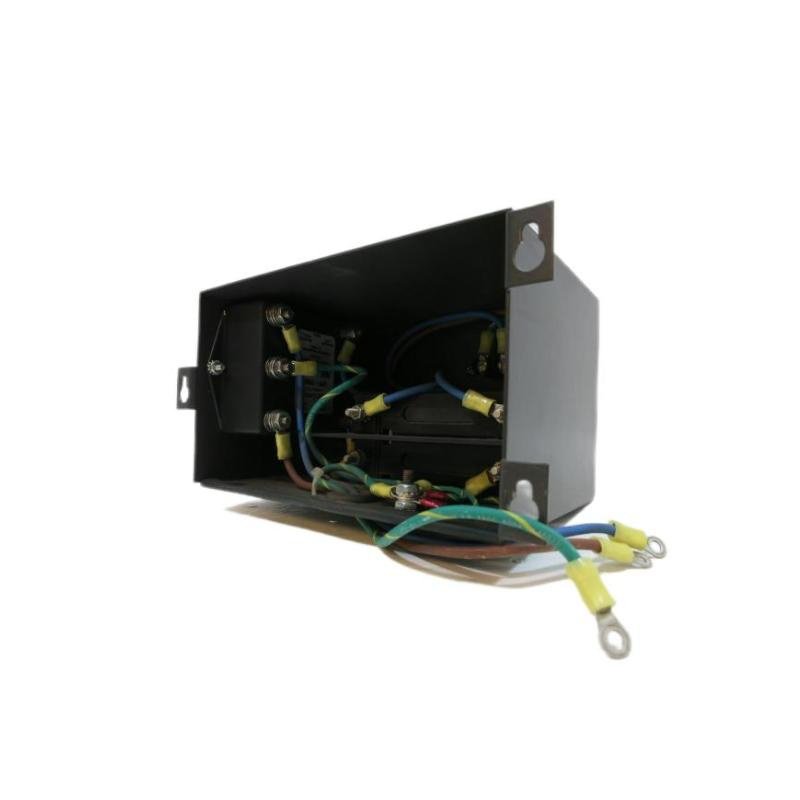

ABB Bailey IPECB11 Power input Circuit Breaker
Manufacturer: ABB (Bailey)
Product Number: IPECB11
Category: Power Input Circuit Breaker (Infi 90, Net 90 DCS)
Voltage Rating: 120/240 VAC
Current Rating: 20A
System Compatibility: ABB Bailey Infi 90 and Net 90 process control systems
Function: Provides overcurrent protection and power distribution
Product Description
The ABB Bailey IPECB11 is a power entry circuit breaker designed to provide overcurrent protection and power distribution for ABB Bailey Infi 90 and Net 90 process control systems. Operating at 120/240 VAC with a 20A rating, it ensures safe and reliable power input, safeguarding critical control modules from electrical faults. Its robust design and compatibility with ABB’s legacy systems make it a dependable choice for industrial applications.
Key Features
-
20A Current Rating–Suitable for standard industrial power input requirements.
-
120/240 VAC Operation–Compatible with common voltage standards in industrial settings.
-
Overcurrent Protection–Prevents damage to control systems by interrupting excessive currents.
-
Compact Design–Facilitates easy integration into existing control panels.
-
Compatibility–Designed for use with ABB Bailey Infi 90 and Net 90 systems.
-
Durable Construction–Built to withstand the rigors of industrial environments.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 x 193.04 x 162.56 mm |
| Weight | 2.55 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 120/240 VAC |
| Current Rating | 20 A |
| Frequency Range | 47 to 63 Hz |
| Voltage Drop | Approximately 2 V at 20 A nominal |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | ABB Bailey Infi 90 and Net 90 systems |
| Application | Power entry and overcurrent protection |
Industry Applications
-
Process Control Systems–Ensures reliable power delivery to control modules.
-
Industrial Automation–Protects automation equipment from electrical faults.
-
Power Generation–Maintains safe operation of control systems in power plants.
-
Chemical and Petrochemical–Provides dependable power protection in hazardous environments.
-
Manufacturing–Safeguards machinery and control systems in manufacturing facilities.
The ABB Bailey IPECB11 Power Entry Circuit Breaker delivers reliable overcurrent protection and power distribution for ABB’s legacy control systems. Its robust design and compatibility with Infi 90 and Net 90 platforms make it an essential component for maintaining system integrity in various industrial applications.
