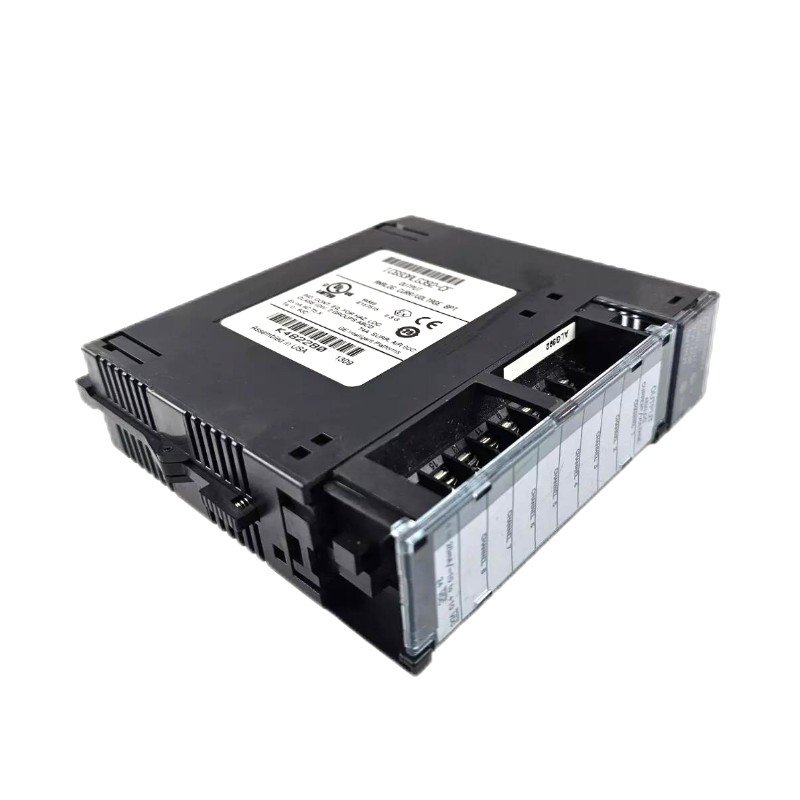

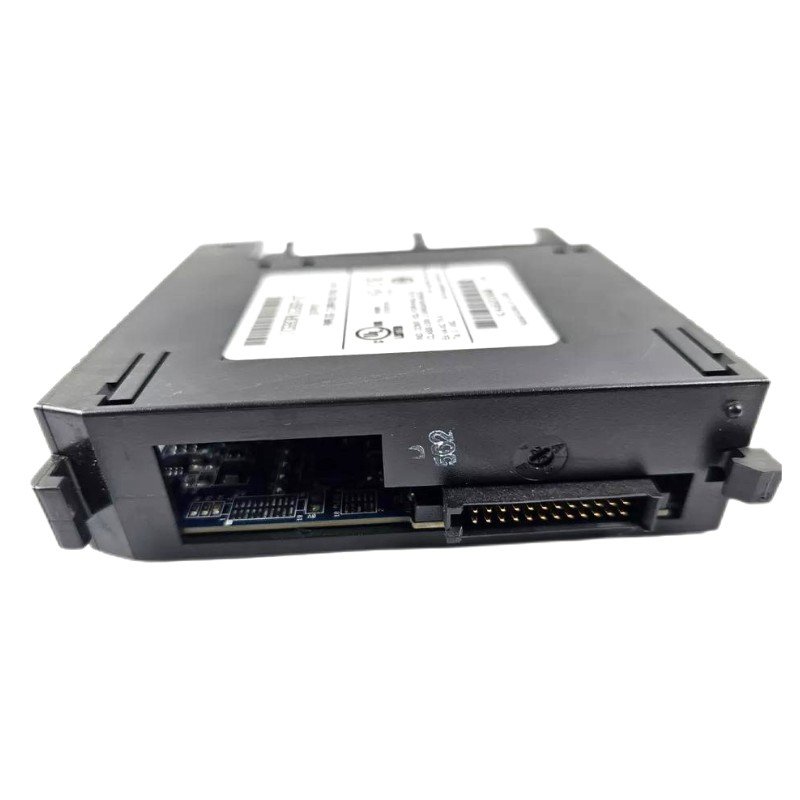

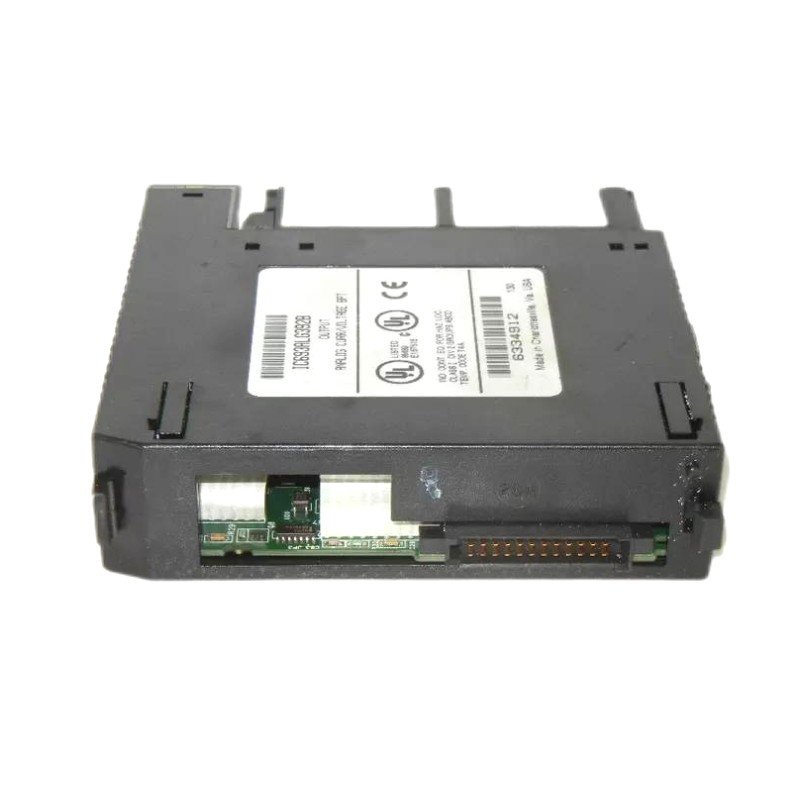

GE Fanuc IC693ALG392 Analog Output Modules
Manufacturer: GE Fanuc
Product Number: IC693ALG392
Category: Analog Output Module (Series 90-30 PLC)
Number of Channels: 2
Resolution: 16-bit
System Compatibility: GE Fanuc Series 90-30 PLC platform
Function: Converts digital control signals into analog voltage or current outputs for controlling field devices
Product Description
The GE Fanuc IC693ALG392 Analog Output Module is a high-resolution 2-channel analog output module designed for the GE Series 90-30 PLC platform. It converts digital control signals from the CPU into analog voltage or current outputs for controlling field devices such as actuators, valves, and variable speed drives. With robust performance, precise output control, and flexible signal range options, the IC693ALG392 is well-suited for applications requiring accurate analog signal generation in industries such as water treatment, process automation, and manufacturing.
Key Features
-
Dual Analog Output Channels–Provides two independent analog outputs for precise control of field devices
-
Voltage and Current Output–Supports both 4–20 mA current and ±10 V voltage outputs, allowing flexibility for a range of applications
-
High Resolution and Accuracy–12-bit digital-to-analog conversion ensures fine signal control and smooth analog output response
-
Flexible Configuration–Each channel can be independently configured for current or voltage mode via user programming
-
Diagnostics and LED Indicators–On-board status LEDs and diagnostic feedback assist in monitoring module health and output conditions
-
Galvanic Isolation–Isolation between outputs and system logic enhances signal integrity and system safety
-
Compact Design–Easily fits into Series 90-30 PLC racks without consuming excessive panel space
-
Wide Application Compatibility–Compatible with a broad range of analog control devices across various industries
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 51 x 127 x 127 mm |
| Weight | 0.349 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 2 |
| Output Ranges | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 12 bits |
| Load Impedance | 0–750 Ω (current), ≥2 kΩ (voltage) |
| Accuracy | ±0.5% of full scale |
| Isolation | 1500 V RMS (field to logic) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when mounted) |
System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc Series 90-30 PLC |
| Compatible CPUs | All Series 90-30 CPU models |
| Module Type | Analog Output |
Industry Applications
-
Process Automation–Delivers smooth analog control for valves, actuators, and dampers in chemical, oil & gas, and water treatment systems
-
Manufacturing–Controls variable speed drives and analog-controlled machinery in automated production lines
-
HVAC Systems–Provides proportional analog control for heating, ventilation, and cooling equipment
-
Water/Wastewater Management–Enables precise dosing, flow, and level control in treatment plants
-
Energy and Utilities–Supports analog regulation of generators, transformers, and grid control equipment
The GE Fanuc IC693ALG392 Analog Output Module is a robust and flexible solution for delivering analog signals from the PLC to field devices. Its dual-mode output, high resolution, and reliable performance make it a preferred choice for analog control in industrial automation environments. Designed for seamless integration with the Series 90-30 platform, it ensures accurate and consistent output in a wide range of applications demanding analog precision.
