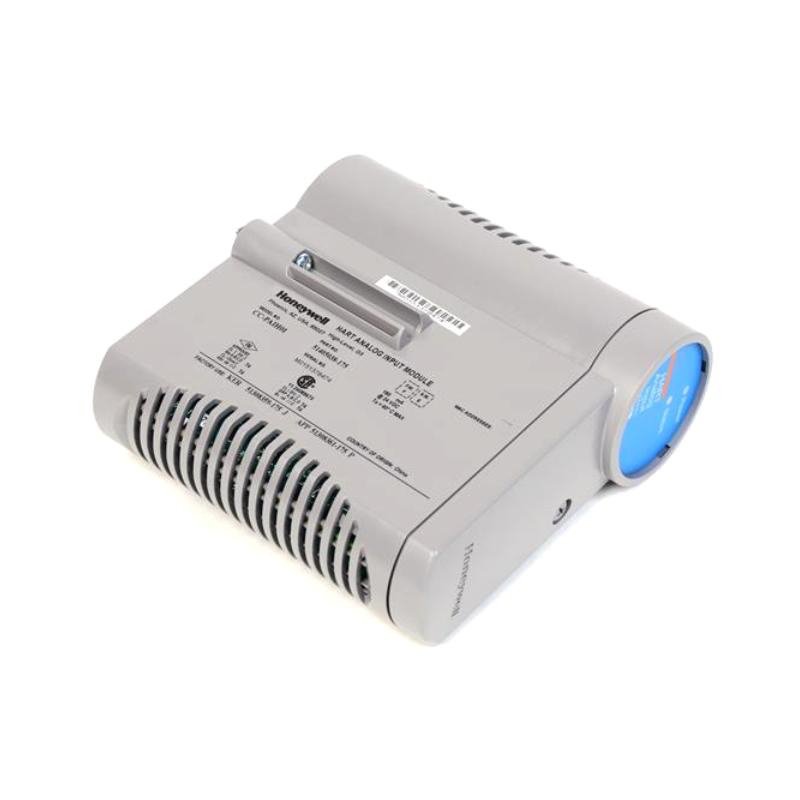

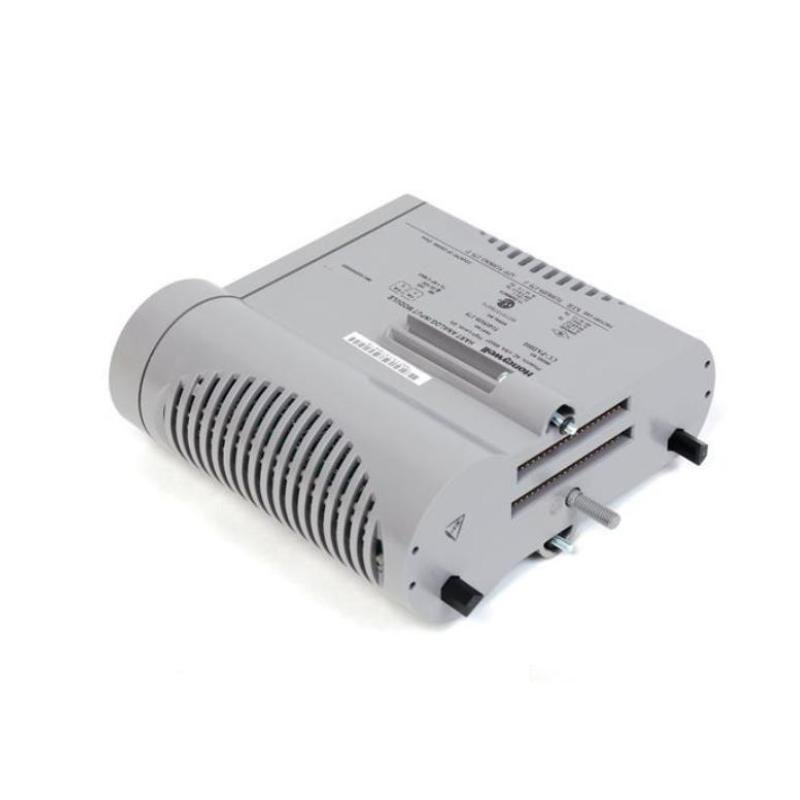

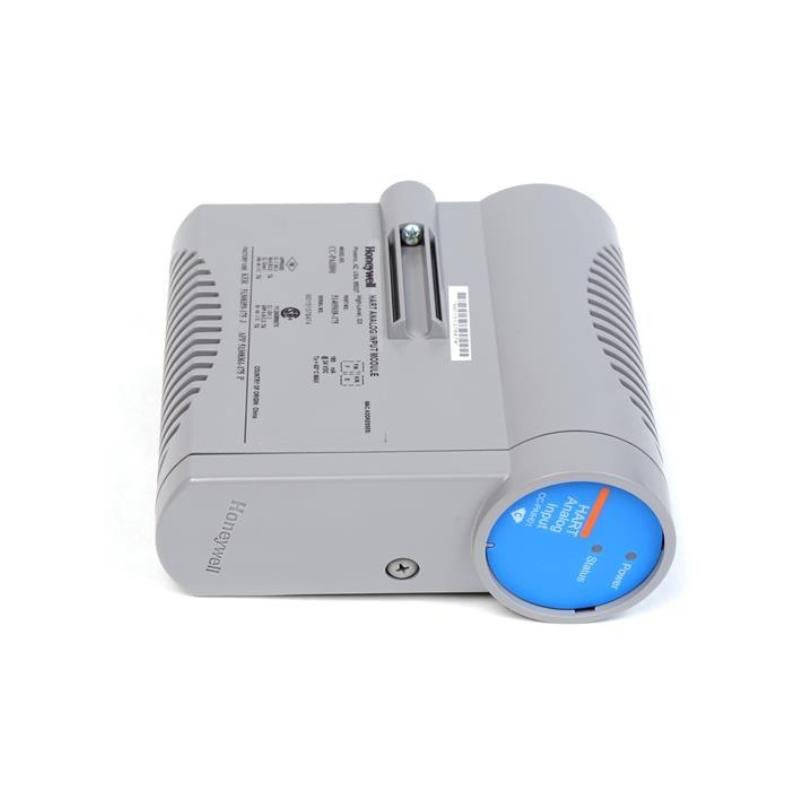

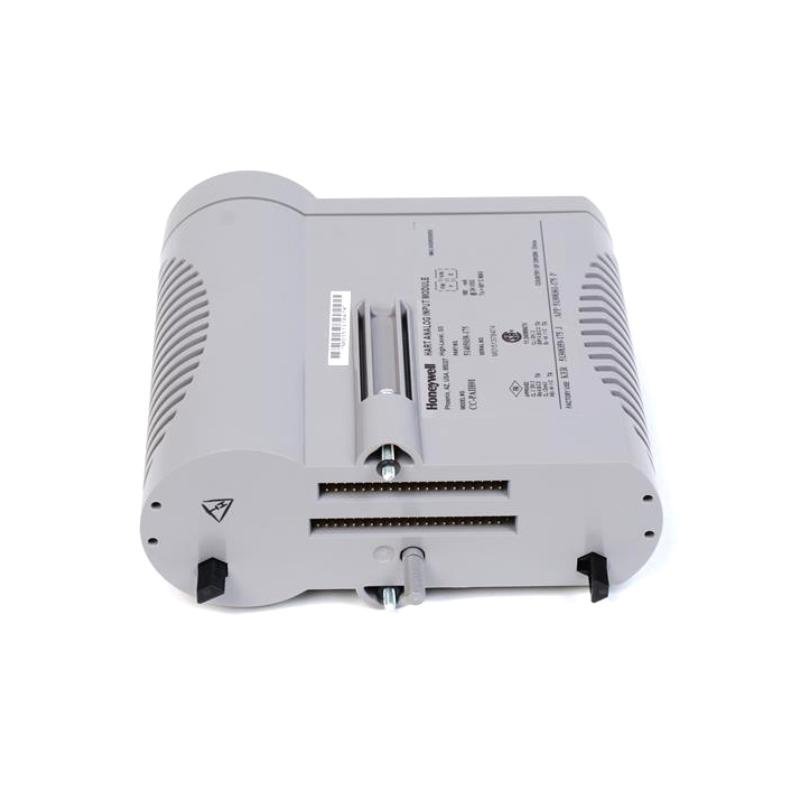

Honeywell CC-PAIH01 51405038-175 Analog Input Modules

The Honeywell CC-PAIH01 51405038-175 Analog Input Module is a high-performance module designed for accurate and reliable analog data acquisition in industrial control systems. It is part of Honeywell’s modular I/O solution, engineered to integrate seamlessly into automation systems for monitoring and controlling various process variables, such as temperature, pressure, flow, and level. The CC-PAIH01 module ensures precise signal conversion from field instruments into a form that can be easily interpreted by control systems, delivering real-time data for process control, monitoring, and optimization.

Key Features

• High-Accuracy Measurement–Provides precise analog input processing for accurate monitoring of process variables such as temperature, pressure, and flow

• Wide Signal Compatibility–Accepts a broad range of input signals, including 4–20 mA, 0–10 V, and other common industrial standards

• Seamless Integration–Easily integrates with Honeywell’s Experion® Process Knowledge System (PKS) and other automation systems for real-time data acquisition and control

• Flexible Configuration–Supports flexible channel configuration, allowing users to configure input channels to match specific requirements of the application

• High Channel Density–Offers a high number of input channels in a compact design, optimizing space in control cabinets and reducing system complexity

• Rugged Design–Built to withstand harsh industrial environments with high reliability, offering robust protection against vibration, temperature fluctuations, and electromagnetic interference (EMI)

• Redundant Power Supply–Provides redundant power supply options for increased reliability in mission-critical applications

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Process Control–Used for monitoring and controlling temperature, pressure, flow, and other critical process variables in industries like chemical, petrochemical, and pharmaceuticals

• Energy Generation–Supports analog signal acquisition in power plants, including monitoring boiler pressure, turbine speed, and fuel levels

• Oil & Gas–Ensures precise measurement of key parameters in upstream, midstream, and downstream processes, such as flow rates and pressure levels in pipelines and refineries

• Manufacturing–Facilitates real-time data collection for industrial processes, including machine monitoring, assembly line control, and packaging processes

• Water and Wastewater Treatment–Monitors critical parameters like pH, turbidity, and chlorine levels to ensure the quality and safety of water treatment processes

The Honeywell CC-PAIH01 51405038-175 Analog Input Module delivers reliable, high-accuracy analog input capabilities for demanding industrial applications. With its robust design, wide signal compatibility, and easy integration into existing control systems, this module ensures optimal performance in industrial automation and process control.
