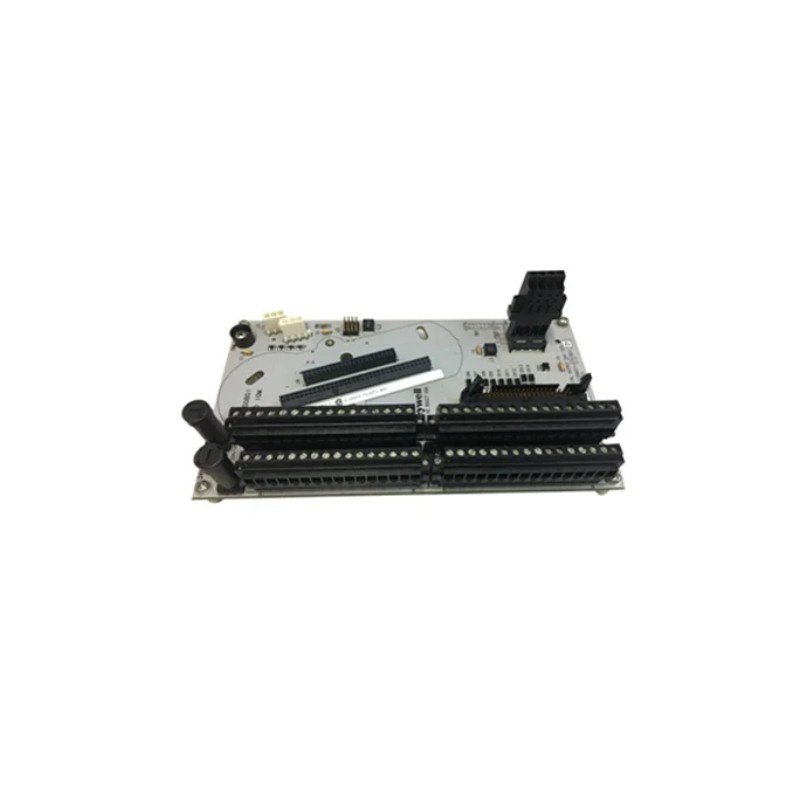

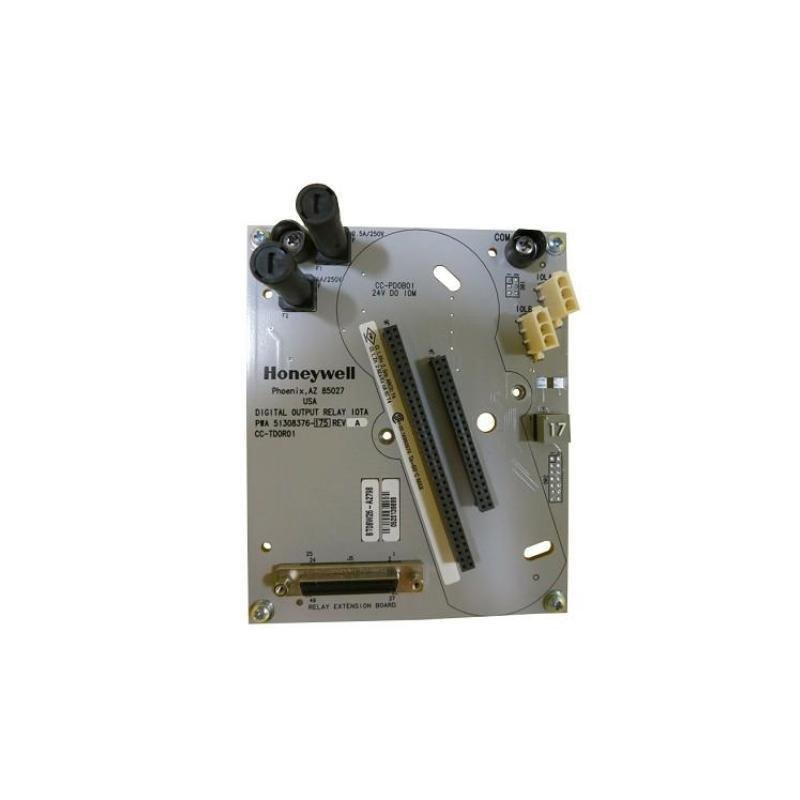

Honeywell CC-TDOR01 51307087-175 Digital Output Modules
Manufacturer: Honeywell
Product Number: CC-TDOR01 (51307087-175)
Category: Digital Output Module (Experion, TDC control systems)
Number of Outputs: 16 (typical)
Output Type: Discrete ON/OFF signals
System Compatibility: Honeywell Experion and TDC control systems
Product Description
The Honeywell CC-TDOR01 51307087-175 is a high-performance digital output module used in Honeywell’s Experion and TDC control systems. This module is designed to interface control systems with field devices by providing discrete ON/OFF signals. It delivers robust performance and reliable operation, ensuring precise actuation of devices such as relays, solenoids, and indicators in a wide range of industrial automation and safety applications.
With its fault-tolerant architecture and built-in diagnostics, the CC-TDOR01 enhances system reliability and simplifies maintenance. It is well-suited for use in critical industries such as power generation, petrochemical, water treatment, and process manufacturing where system integrity and dependable control outputs are essential.
Key Features
-
High Channel Density–Provides multiple digital output channels in a compact module design
-
Reliable Operation–Engineered for high availability and consistent performance in industrial environments
-
Field Interfacing–Directly controls actuators such as solenoid valves, contactors, and alarm indicators
-
Diagnostic Capabilities–Built-in self-checking and fault detection features enhance maintenance efficiency
-
Hot-Swappable Design–Allows module replacement without system shutdown, reducing downtime
-
Integrated with Honeywell Systems–Seamlessly integrates with Experion PKS and other Honeywell process control platforms
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 45 x 110 mm |
| Weight | 0.5 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Type | Discrete (digital) |
| Channels | 16 output channels |
| Output Voltage | 24 VDC nominal |
| Output Current | Up to 0.5 A per channel |
| Power Supply | Supplied via I/O chassis |
| Isolation | Channel-to-channel and channel-to-ground isolation |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| System Integration | Compatible with Honeywell Experion and TDC systems |
| Configuration Tools | Supports Honeywell configuration and diagnostics software |
Industry Applications
-
Power Generation–Ensures reliable operation of safety and control actuators in turbine and generator systems
-
Oil & Gas–Used for valve control, emergency shutdown systems, and monitoring alarms
-
Chemical Processing–Facilitates automated operations in hazardous and process-critical zones
-
Water and Wastewater–Controls pumps, gate actuators, and treatment process systems
-
Pharmaceutical and Food Industries–Offers precise control for batch processing and packaging lines
The Honeywell CC-TDOR01 51307087-175 Digital Output Module is a dependable and efficient component for digital control systems. Its fault-tolerant design, diagnostic features, and integration flexibility make it ideal for maintaining high system availability in critical industrial environments.
