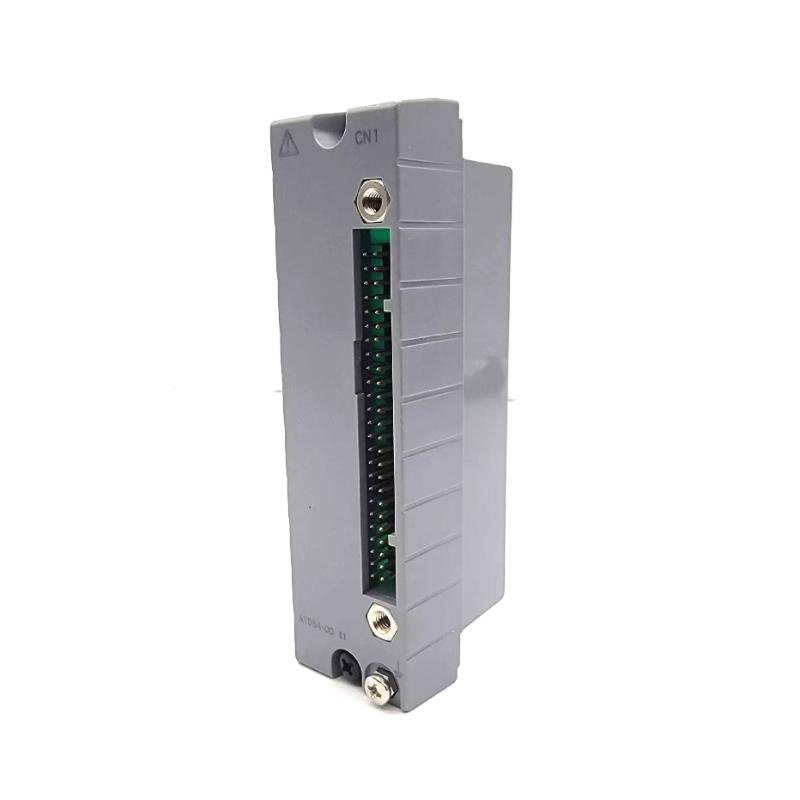

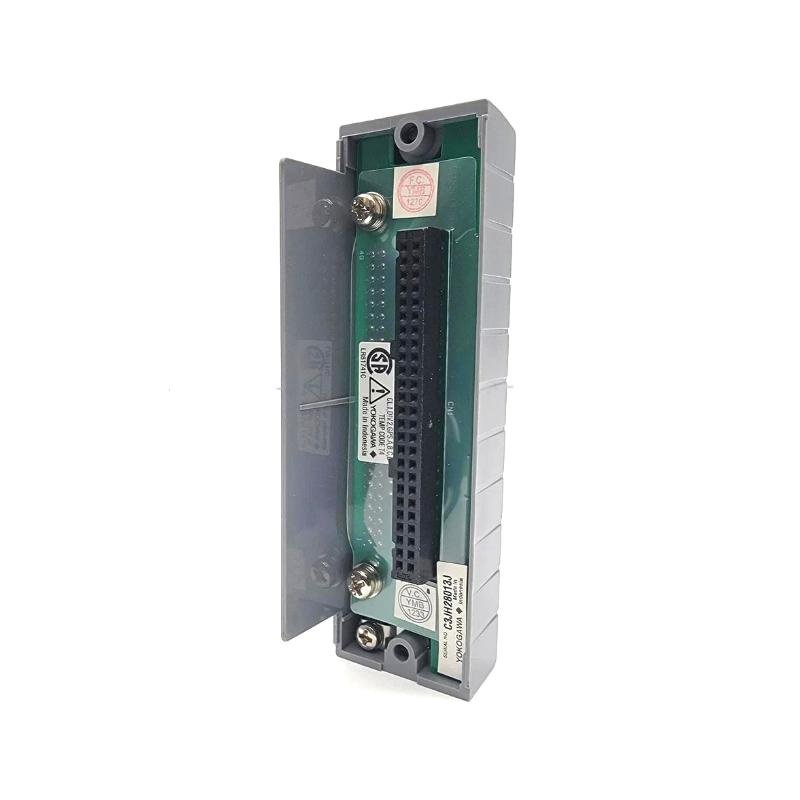

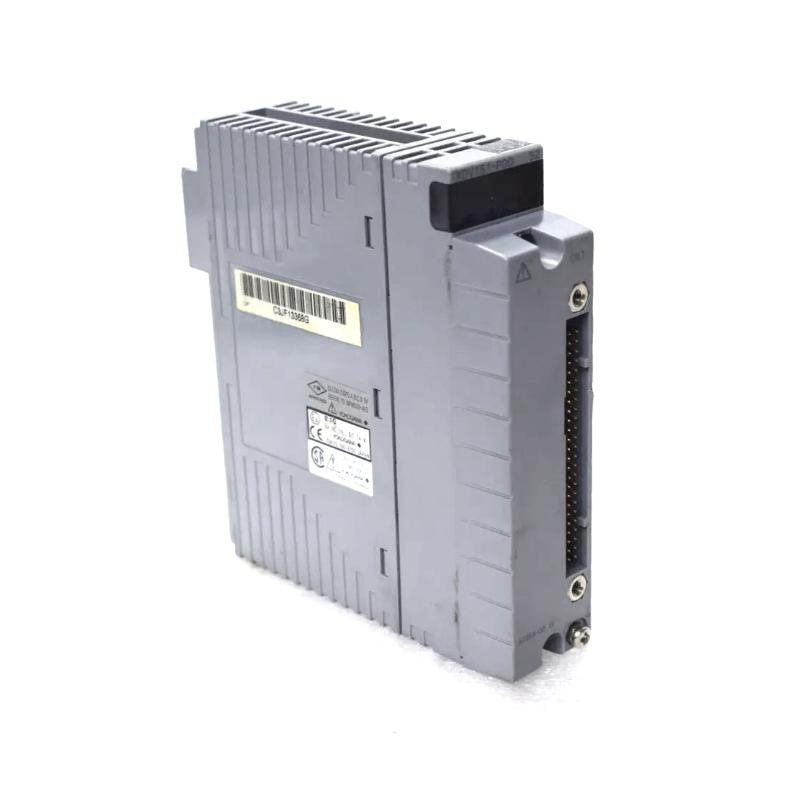

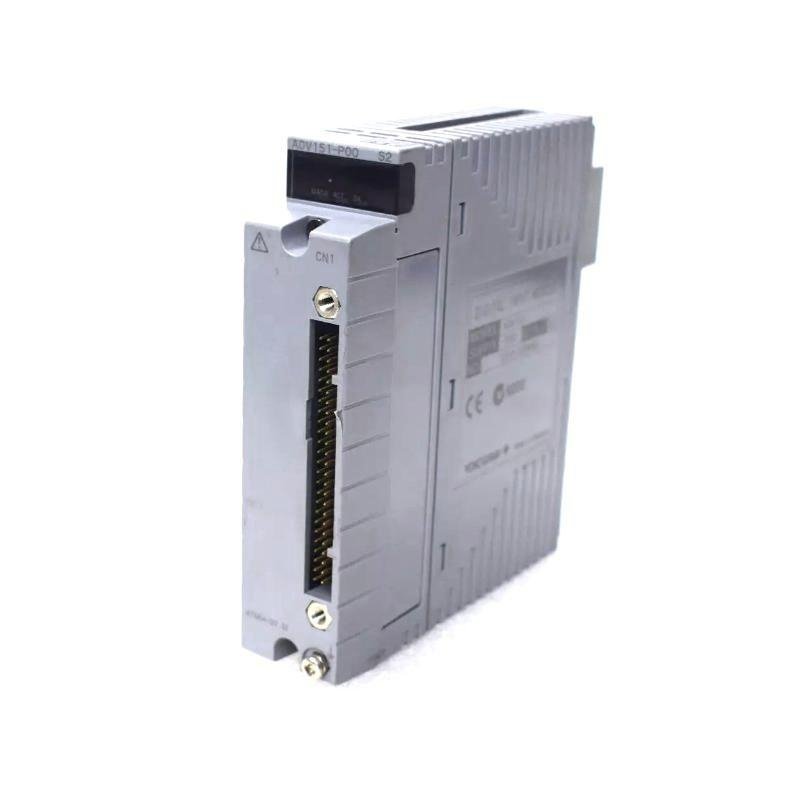

Yokogawa ADV151-P00 S2 ATD5A-00 Digital Input Module
Manufacturer: Yokogawa
Product Number: ADV151-P00 S2 (ATD5A-00)
Category: 32-channel Isolated Digital Input Module (FIO system)
Number of Channels: 32
Input Type: 24 VDC isolated
Features: Supports pushbutton edge detection
System Compatibility: Yokogawa FIO system
Product Description
The Yokogawa ADV151-P00 S2 / ATD5A-00 is a 32-channel isolated 24 V DC digital input module designed for use in Yokogawa’s FIO (Field Input/Output) system architecture.
-
The suffix “P” indicates support for pushbutton input (edge detection) in addition to standard status input.
-
The suffix “00” denotes the basic type, with no LED status indicators or explosion protection.
-
The suffix “S2” specifies the hardware or firmware series version.
-
The option code “/ATD5A-00” designates the KS cable interface adapter, which provides a connector-based wiring interface for 32-channel digital inputs.
This module is suitable for process control and industrial automation systems requiring reliable, isolated, high-density digital signal acquisition.
Key Features
-
32 optically isolated 24 V DC digital input channels.
-
Supports both status input (ON/OFF) and pushbutton input (edge detection) modes.
-
High noise immunity with optical and galvanic isolation between input and system circuits.
-
Compact and lightweight design for space-efficient control cabinet installation.
-
Equipped with KS cable interface adapter (ATD5A-00) for easy field wiring.
-
Provides stable, long-term performance in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P00 S2 / ATD5A-00 |
| Function | 32-channel isolated digital input module |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Input ON Voltage | 18 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | 4.1 mA ± 20 % |
| Maximum Allowable Input Voltage | 30 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common every 16 channels) | 500 V AC for 1 minute |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Pushbutton Input) | 20 ms |
| Maximum ON/OFF Frequency (Pushbutton Input) | 25 Hz |
| SOE Function | Not available |
| External Connections | KS cable interface adapter (ATD5A-00) |
| Mounting Method | Mounted on FIO baseplate |
| Operating Temperature Range | −20 °C to +70 °C |
| Operating Humidity | 5 % to 95 % RH (non-condensing) |
| Cooling Method | Natural air cooling |
| Status Indicators | None (basic type) |
| Dimensions (H × D × W) | 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.30 kg |
| Installation Location | Indoor control cabinet |
