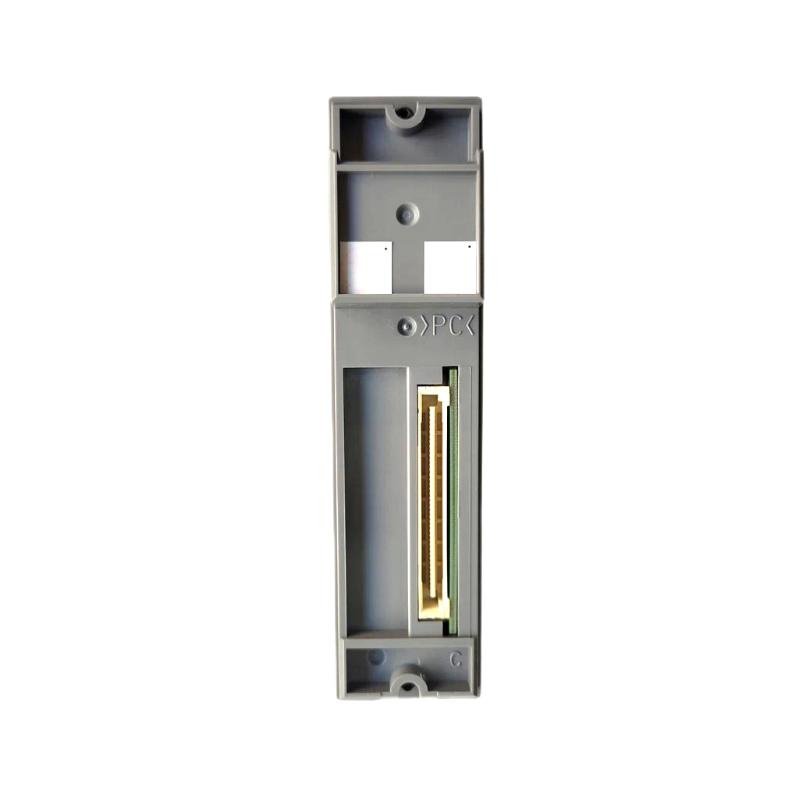

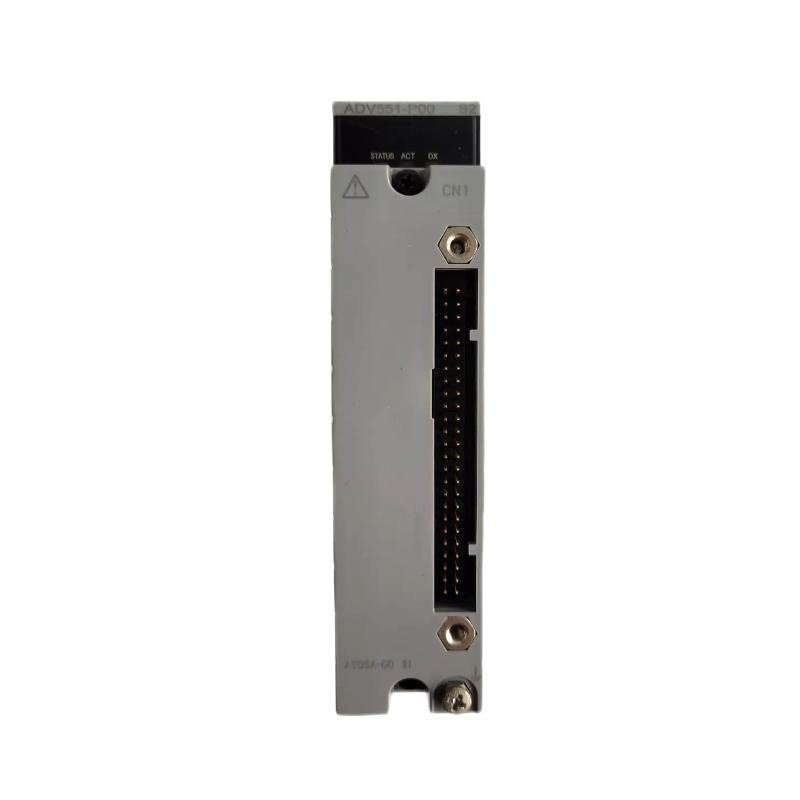

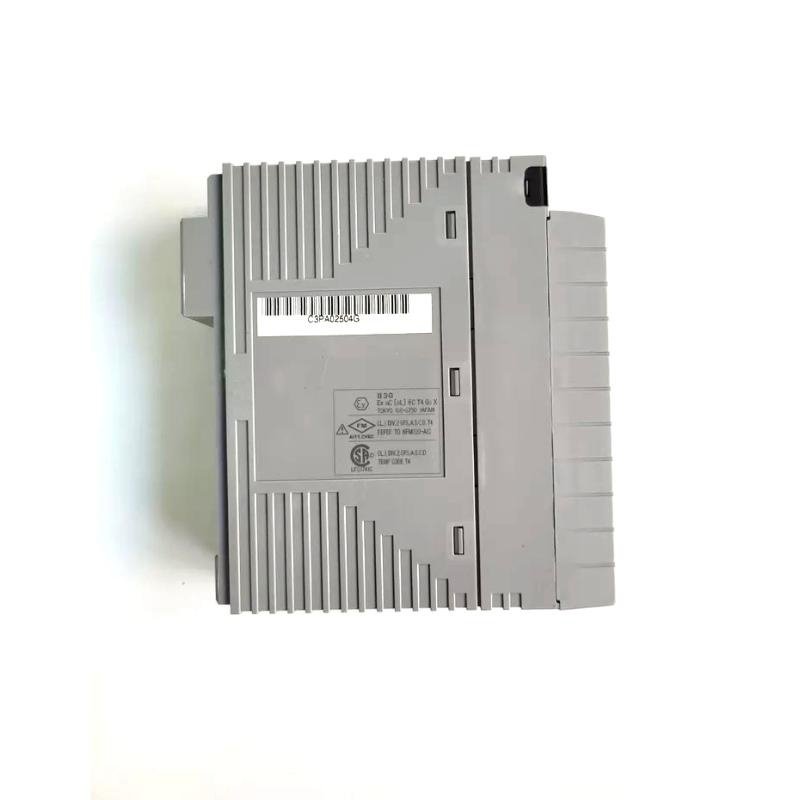

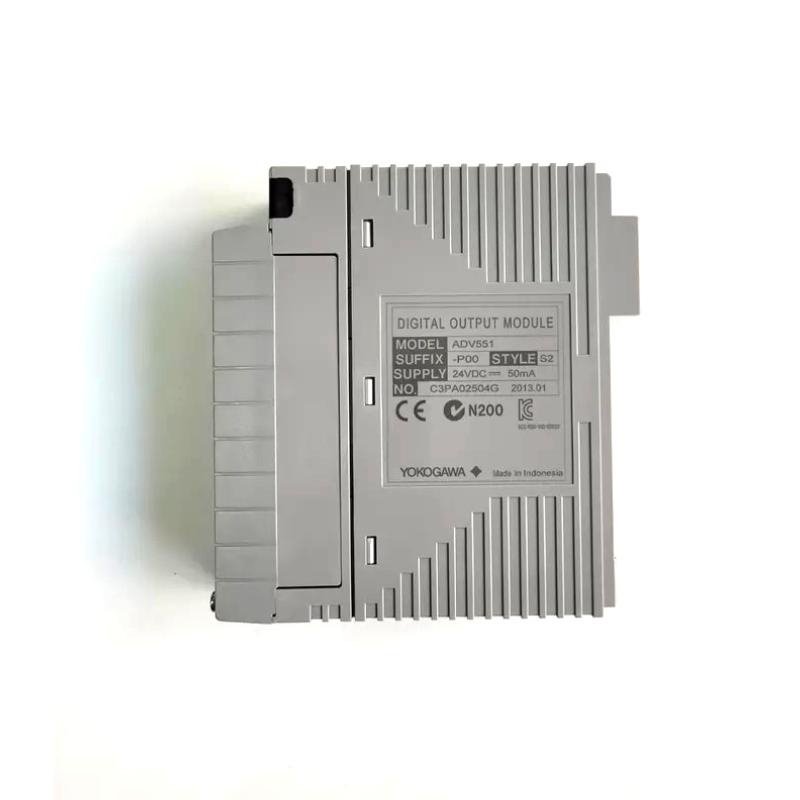

Yokogawa ADV551-P00/D5A00D Digital Output Module
Manufacturer: Yokogawa
Product Number: ADV551-P00/D5A00D
Category: 32-channel Isolated Digital Output Module (FIO system)
Number of Channels: 32
Output Type: 24 VDC isolated digital output
System Compatibility: Yokogawa FIO system architecture
Product Description
The ADV551-P00/D5A00D is a 32-channel isolated 24 V DC digital output module designed for Yokogawa’s FIO (Field Input/Output) system architecture.
-
Model code breakdown:
-
“ADV551” indicates the 32-channel digital output module type.
-
“P” denotes support for pulse-width output and/or time-proportioning output functions.
-
“00” designates the basic version (no status display, no explosion-proof option).
-
“/D5A00D” is the option code variant, signifying use of the KS Cable Interface Adapter (Model ATD5A-00) for 32-channel digital output wiring and includes the “D” suffix (dual-variant or diagnostic variant) which may indicate enhanced diagnostics or dual terminal block support.
-
This module is suitable for industrial automation and process control systems requiring high-density discrete outputs, strong electrical isolation, and connector-based wiring.
Key Features
-
32 optically isolated digital output channels rated at 24 V DC.
-
Supports status output (ON/OFF), one-shot pulse-width output, and time-proportioning output modes.
-
Output format is current-sink type, suitable for driving 24 V DC field loads.
-
Strong isolation between output channels and system bus for enhanced noise immunity.
-
Compact design and light weight for efficient installation in control cabinets or I/O racks.
-
KS Cable Interface Adapter wiring (D5A00D variant) simplifies multi-channel connector wiring and module replacement; the “D” variant may also support dual pressure-clamp terminals or additional diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P00/D5A00D |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 V DC to 26.4 V DC |
| Output ON Voltage (Maximum) | 2 V DC |
| Leakage Current (Output OFF) | 0.1 mA |
| Output Format | Current-sink |
| Maximum Load Current per Channel | 100 mA at 26.4 V DC |
| Output Response Time (Status Output) | ≤ 3 ms |
| Output Response Time (Mixed Status + Pulse) | ≤ 10 ms |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (with additional ON/OFF delay up to 1 ms) |
| Isolation (Output ↔ System) | 2 kV AC for 1 minute |
| Isolation (Common minus side every 16 ch) | 500 V AC for 1 minute |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.20 kg |
| Operating Temperature Range | –20 °C to +70 °C |
| Operating Humidity | 5 % to 95 % RH (non-condensing) |
| Mounting Method | Module mounted on FIO baseplate or rack inside control cabinet |
