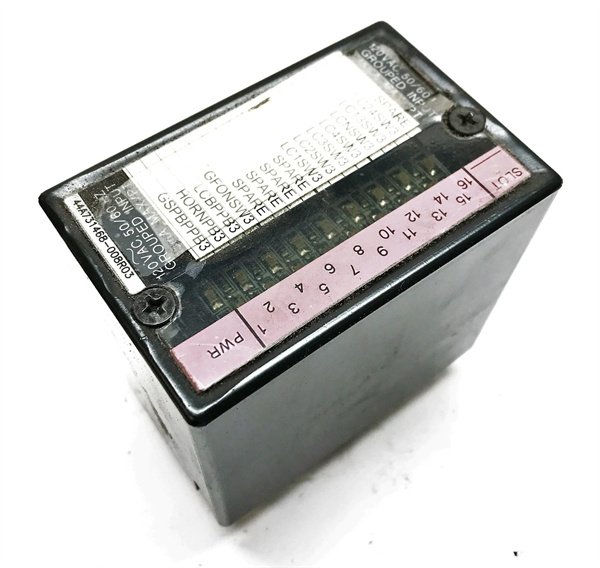

General Electric IC670MDL240K Discrete Input Module
Manufacturer: General Electric
Product Number: IC670MDL240K
Category: Discrete Input Module
Series: GE Field Control series
Application: Industrial automation systems requiring reliable and efficient discrete input signal processing
Product Description
The GE IC670MDL240K is a high-performance discrete input module designed for industrial automation systems. It is part of the Field Control series and is engineered to provide reliable and efficient discrete input signal processing for various industrial applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC670MDL240K |
| Manufacturer | GE Fanuc |
| Product Category | Discrete Input Module |
| Number of Channels | 16 |
| Input Signal Type | 120 VAC |
| Input Signal Range | 0-132 VAC |
| Input Frequency | 47-63 Hz |
| Input Current per Channel | 15 mA |
| Power Supply | 120 VAC (external) |
| Current Draw from BIU | 77 mA (max) |
| Operating Temperature Range | -20°C to +60°C |
| Response Time (ON) | 12 ms (typical), 20 ms (max) |
| Response Time (OFF) | 25 ms (typical), 40 ms (max) |
| Isolation Voltage | 250 VAC (continuous), 1500 VAC (1 minute) |
| Dimensions | 3.5 × 13 × 13.6 cm |
| Certifications | UL, CE, TUV |
Core Advantages and Technical Highlights
High-Performance Signal Processing
The IC670MDL240K features 16 input channels, each capable of handling AC input signals with a nominal voltage of 120 VAC and a range of 0-132 VAC.It supports a wide input frequency range of 47-63 Hz, ensuring compatibility with various industrial power standards.
Robust and Reliable Design
The module is designed for harsh industrial environments, with a wide operating temperature range of -20°C to +60°C.It features robust isolation capabilities, with a continuous isolation voltage of 250 VAC and a peak isolation voltage of 1500 VAC for 1 minute.
Fast Response Times
The IC670MDL240K offers fast response times, with a typical ON response time of 12 ms and a maximum of 20 ms. The OFF response time is 25 ms (typical) and 40 ms (maximum), ensuring rapid signal detection and processing.
User-Friendly and Flexible
The module includes individual LED status indicators for each input channel, providing clear visual feedback on the state of each input.It also features a PWR LED to indicate power status.
Typical Application Scenarios
The GE IC670MDL240K is widely used in:
-
Manufacturing: For monitoring and controlling production line equipment.
-
Energy Management: For interfacing with sensors and control devices in power plants.
-
Process Control: For precise control of pumps, valves, and mixers in chemical and petroleum industries.
Installation Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
