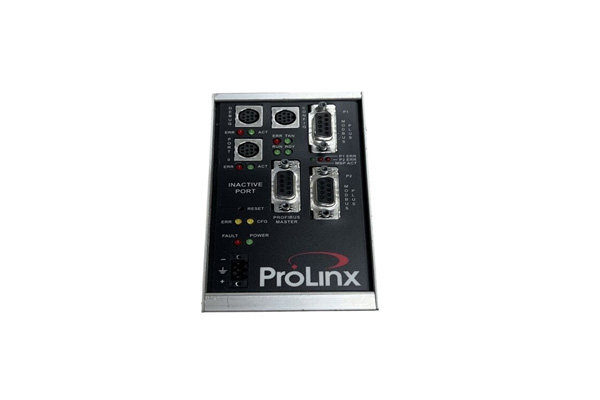

PROSOFT 5304-MBP-PDPM module is a powerful industrial automation control module, mainly used to connect controllers and remote I/O devices, to achieve data transmission and control. The following is a detailed introduction to the module:

Basic functions

Communication Protocol: This module communicates through Modbus protocol, which is a widely used communication protocol with high reliability and compatibility.

Diagnostic function: Supports PDPM technology, which can add additional diagnostic information to the data packet, improve diagnostic capabilities, and help quickly locate and solve problems.

Remote I/O connection: used to connect controllers and remote I/O devices, achieve data transmission and control, and improve system integration and automation level.

Technical features

Preset scaling range: This module defines the output voltage of the BIU and channel, with two preset scaling ranges:+/-10 volts and 0 to+10 volts. The default range is+/-10 volts for bipolar scaling, with spans and engineering units ranging from -10000 to+10000 millivolts; Another preset range of 0 to+10 volts is used for single pole scaling, while providing spans and engineering units of 0 to+10000 millivolts.
