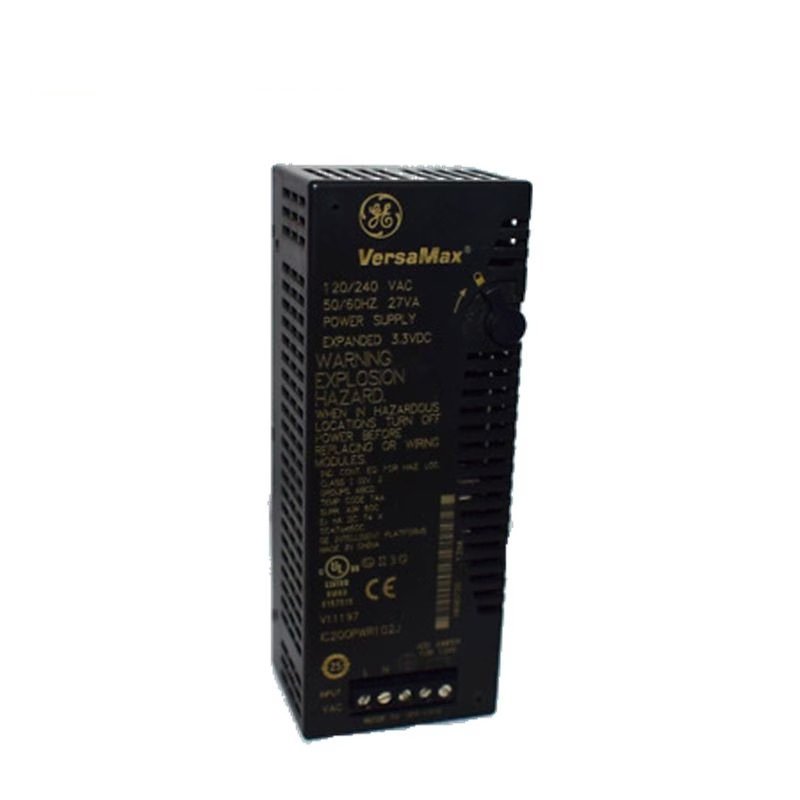

The GE Fanuc IC200PWR102J is a reliable power supply module designed for the GE Fanuc VersaMax PLC system. It provides the necessary power for the system’s CPU, input/output modules, and communication interfaces. This power supply ensures the proper functioning of the PLC system by delivering stable DC outputs of 5 VDC and 3.3 VDC.

Technical Specifications

• Input Voltage:
  • 120/240 VAC
  • Input voltage range: 85-132 VAC (with jumper); 176-264 VAC (without jumper)
• Output Voltage:
  • 5 VDC
  • 3.3 VDC
• Input Power: 27 VA
• Output Current:
  • 5 VDC: 1.5 A maximum
  • 3.3 VDC: 1.0 A maximum
• Protection:
  • Short circuit protection
  • Overload protection
  • Reverse polarity protection
• Input Frequency: 47-63 Hz
• Holdup Time: 20 ms
• Dimensions:
  • Width: 49 mm
  • Depth: 39 mm
  • Height: 133.4 mm
