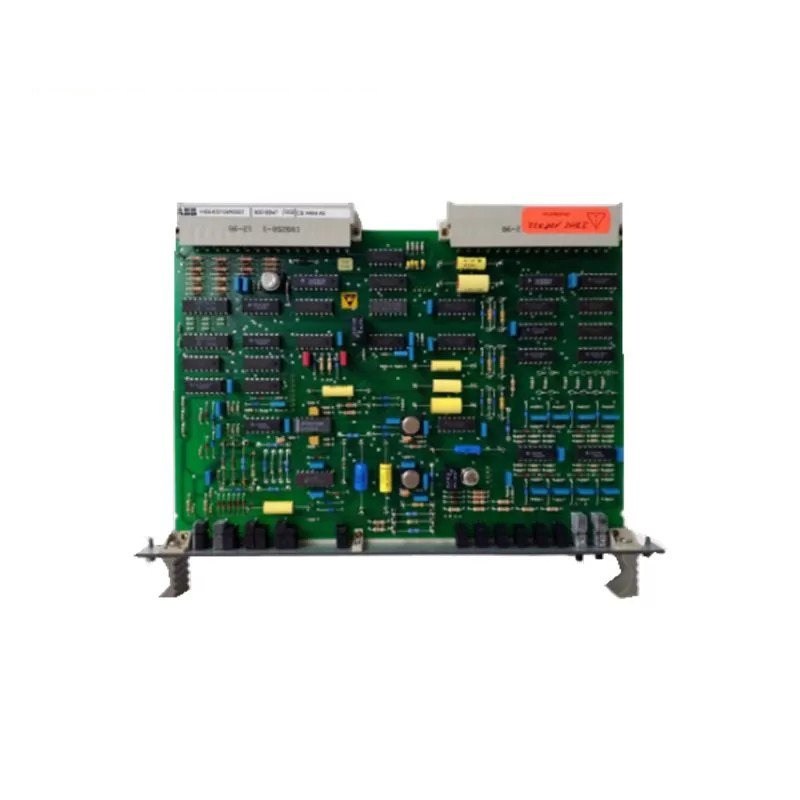

ABB HIEE400106R0001 Analog/Digital I/O Card

The ABB HIEE400106R0001 analog/digital I/O module, part of the Advant OCS series, offers robust capabilities for industrial automation:

Technical Specifications

• Input/output channels: 16 analog inputs, 16 digital inputs, 8 analog outputs, 8 digital outputs
• Analog input range: -10 V to +10 V
• Analog output range: 0 V to 10 V
• Digital input voltage: 24 V DC
• Digital output voltage: 24 V DC
• Communication protocol: Modbus RTU
• Power supply: 24 V DC
• Operating temperature range: -20°C to +60°C
• Dimensions: 114 mm x 114 mm x 23 mm
• Weight: 0.35 kg

Applications

1. Process Control: Monitoring and controlling variables like temperature, pressure, and flow.
2. Machine Control: Managing operations of industrial machinery such as robots, conveyors, and packaging machines.
3. Data Acquisition: Collecting sensor data for analysis and monitoring purposes.

Features

• Configurable Input Channels: Supports various signal types including analog voltage, analog current, and digital signals.
• Status and Diagnostic Indicators: Provides real-time status and diagnostics for troubleshooting.
• Hot Swap Support: Allows for module replacement without system shutdown, reducing downtime.

Benefits

• Improved Reliability: Built to endure harsh industrial environments for continuous operation.
• Increased Productivity: Enhances efficiency through accurate data handling and automated control.
• Reduced Downtime: Facilitates quick module replacement to minimize operational disruptions.
