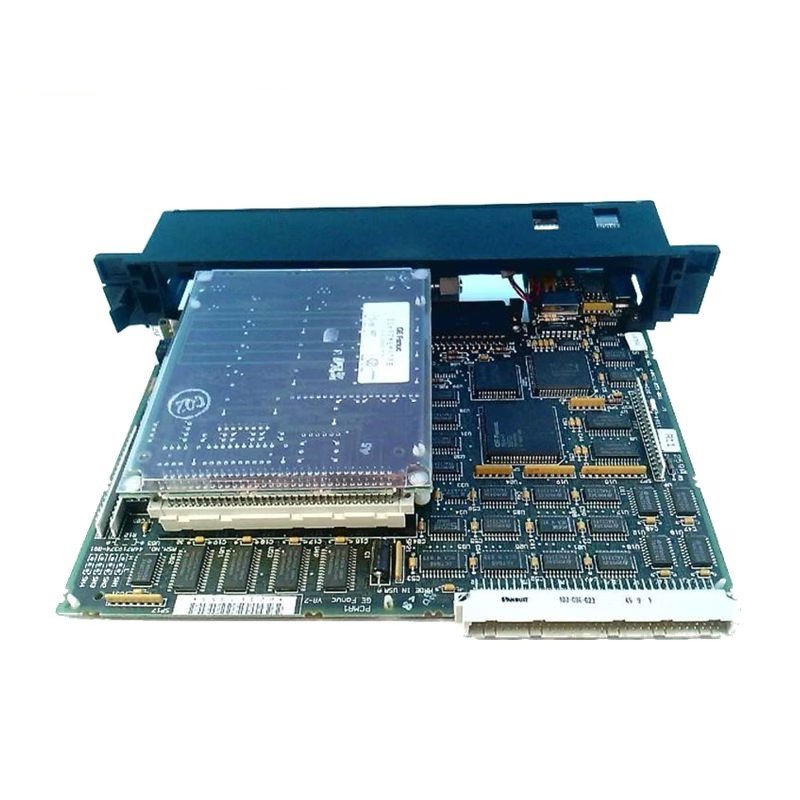

The IC697PCM711G is a programmable coprocessor module designed for use with GE Fanuc Series 90-70 PLCs. This module works alongside the main CPU to handle specific tasks, enhancing the PLC’s capabilities. It is ideal for applications that require complex calculations, high-speed data acquisition, or specialized communication protocols. The IC697PCM711G significantly improves system performance by offloading time-sensitive or computationally heavy tasks from the main processor.

Technical Specifications

• Module Type: Programmable Coprocessor
• Slot Compatibility: 1 single-slot in the Series 90-70 PLC rack
• Current Requirement: 1.0 Amp from the 5V bus
• Serial Ports: 2 ports (RS-232/RS-422/RS-485 compatible)
• Programming Interface: Dedicated PCM development software
• Program Memory: 64K, 128K, 512K, or 2.586M bytes
• Connectors: 3PL and 4PL
• Shelf Life: 10 years at 20°C (68°F)
• Memory Retention: 6 months without applied power
• Clock Speed: 12 MHz
• Processor: 80C186 Microprocessor
• Optional Expansion Memory: Up to 512K bytes
• Weight: 1.10 lbs
