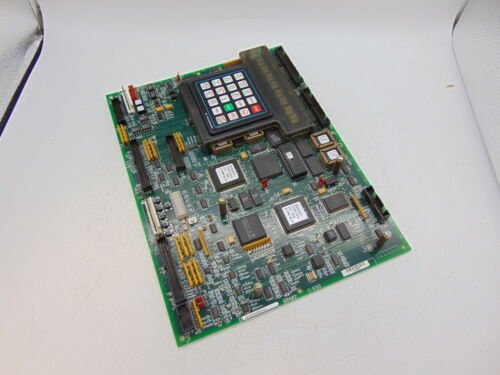

The DS200LDCC Drive Control/LAN Communications board (LDCC) serves as the primary control unit for GE’s DIRECTO-MATIC 2000 family of drives and exciters, offering essential features for drive and I/O management.

Key features

• Microprocessor control for drive, motor, I/O functions, and LAN communication
• Application software and customer-specific configuration data
• Onboard interface for adjustments and diagnostics
• Hardware and software reset functions
• Can potentially replace existing control boards

Board identification

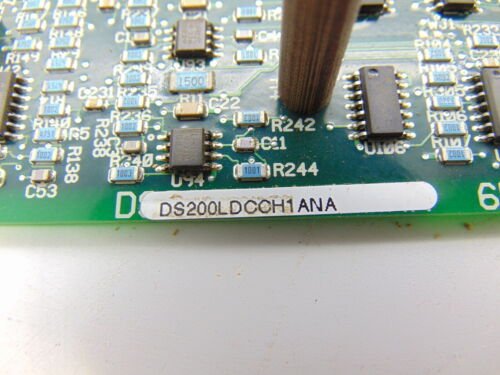

• Alphanumeric part number (e.g., DS200LDCCH#ruu)
• DS200LDCC identifies the board type
• r and u digits indicate revision level (r = major change, u = minor)
• H# identifies a specific variation of the board
