Woodward 5417-1251 USB-to-RJ45 Communication Interface

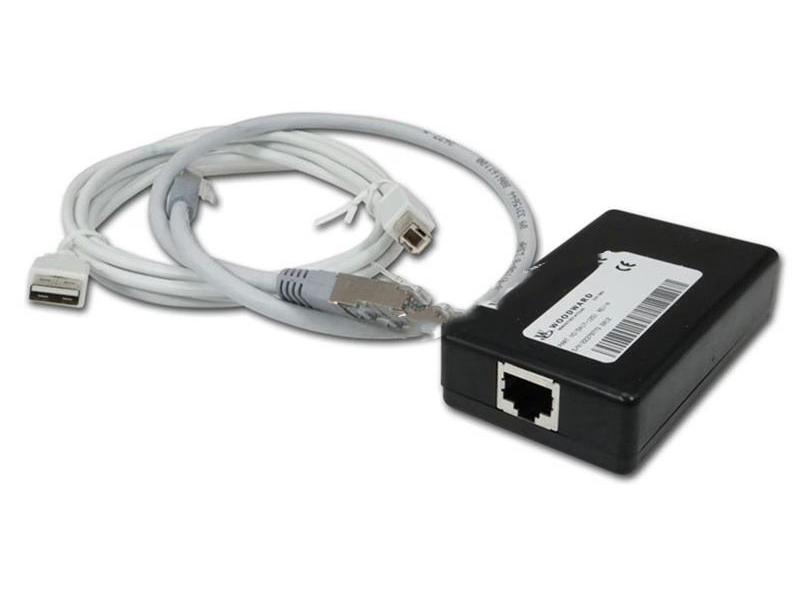

The Woodward 5417-1251 is a compact USB-to-RJ45 communication interface. Engineers use it to configure and troubleshoot EasYgen, DTSC, and LS-5 controllers efficiently. It connects a PC or laptop to a controller through USB and delivers stable data exchange. Furthermore, its rugged design ensures reliable operation in harsh industrial conditions.

Model

• Part Number: 5417-1251

• USB Side: USB Type B, supports USB 2.0
• Controller Side: RJ45, non-standard RS232 levels
• Isolation: Galvanic isolation between PC and controller

Compatibility

• EasYgen-1500 series
• EasYgen-2000 series
• DTSC-200 series
• LS-5 controllers

Electrical Characteristics

• Power Supply: 5 V from USB port
• Current Draw: Supplied by PC
• Protection: Galvanic isolation ensures safe operation

Transmission Speed

• UART Side: Up to 115200 baud
• USB Side: Up to 12 Mbit/s

Environmental Conditions

• Operating Temperature: –20°C to +70°C (–4°F to +158°F)
• Storage Temperature: –40°C to +85°C (–40°F to +185°F)

Physical Specifications

• Dimensions: 85 mm × 50 mm × 22 mm (L × W × H)
• Weight: 0.6 kg
