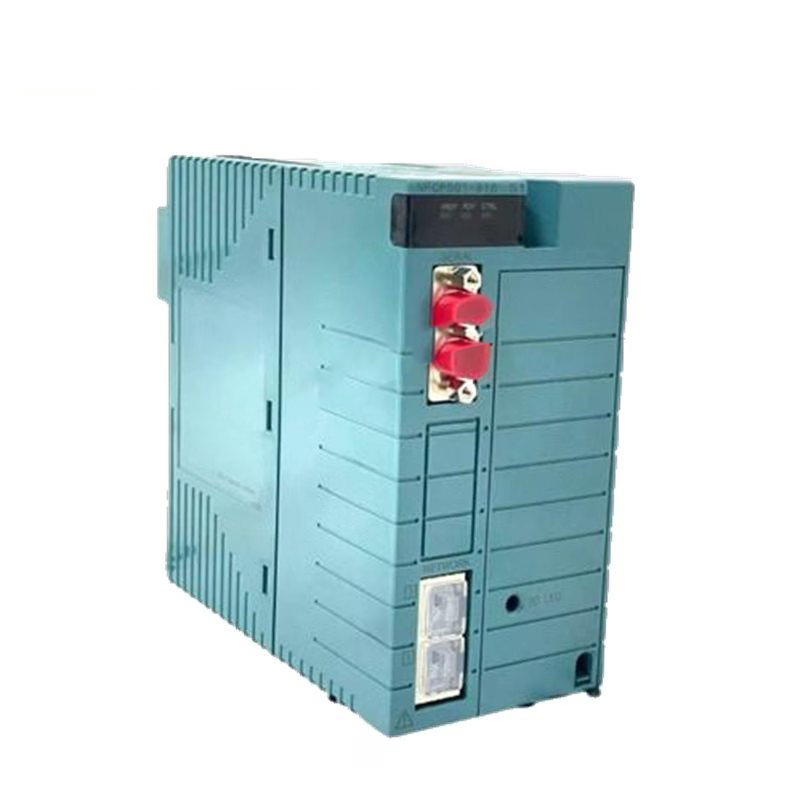

Yokogawa NFCP501-W05 S2 CPU Module

The Yokogawa NFCP501-W05 S2 is a high-performance CPU module from the STARDOM series. It provides fast and reliable control, ensuring efficient operation in industrial automation systems.

Technical Specifications

Processor:

• Atom E3815 (1.46 GHz)

Memory:

• 256 MB main memory with ECC

• 2 MB static RAM with ECC (battery backup, retention capacity: 700 kB)

Storage:

• 1 GB on-board flash memory

• SD card slot (SDHC, 4 to 32 GB, Class 10)

Communication Interfaces:

• Ethernet: 2 ports (1000BASE-T, 100BASE-TX, 10BASE-T)

• RS-232-C: 1 port (0.3 to 115.2 kbps)

Battery:

• 1000 mAh graphite fluoride lithium battery

Protection:

• CPU cover with wire lock hole

Operating Temperature Range:

• -20°C to +70°C

Dimensions:

• 2.2 cm x 12.4 cm x 12.6 cm

Weight:

• 0.3 kg
