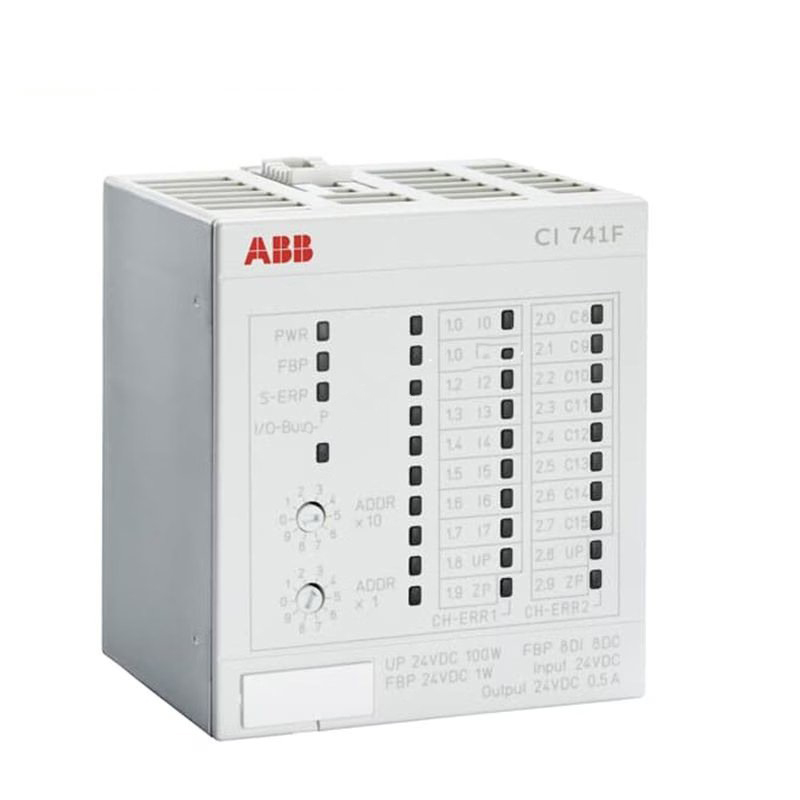

ABB CI741F 3BDH000396R0005 PROFIBUS Slave Communication Interface

The 3BDH000396R0005 is a PROFIBUS Slave communication interface designed for integration with S700 I/O systems. This module enables seamless communication via the PROFIBUS DP protocol. It provides versatile I/O capabilities, including 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs. The interface supports various signal types such as digital, analog, and RTD, making it suitable for a wide range of industrial applications.

Technical Specifications

• Communication Protocol: PROFIBUS DP

• I/O Configuration:

  • 8 Digital Inputs (DI): 24 V DC

  • 8 Digital Outputs (DO): 24 V DC, 0.5 A

  • 4 Analog Inputs (AI):

    • ±10 V, 0/4-20 mA, 24 V DC, RTD

  • 2 Analog Outputs (AO):

    • ±10 V, 0/4-20 mA, 24 V DC, 12-bit + sign

• Power Supply: 24 V DC, 5 W (max)

• Analog Input Options: 0/4-20 mA, ±10 V, RTD

• Analog Output Resolution: 12-bit with sign

• Signal Types Supported: 2-wire and 1-wire for different analog configurations

Additional Features

• Interface: Sub-D plug for PROFIBUS DP connection

• Operating Temperature: Not specified

• Protection Class: IP20

• Life Cycle Status: Active

• Line Redundancy: Not supported

• Hot Swap: Not supported

Environmental and Certification Details

• CE Marking: Yes

• RoHS Compliance: Directive 2015/863

• WEEE Compliance: Directive 2012/19/EU

Dimensions and Weight

• Width: 67.5 mm

• Height: 76 mm

• Depth: 62 mm

• Weight: 158 g
