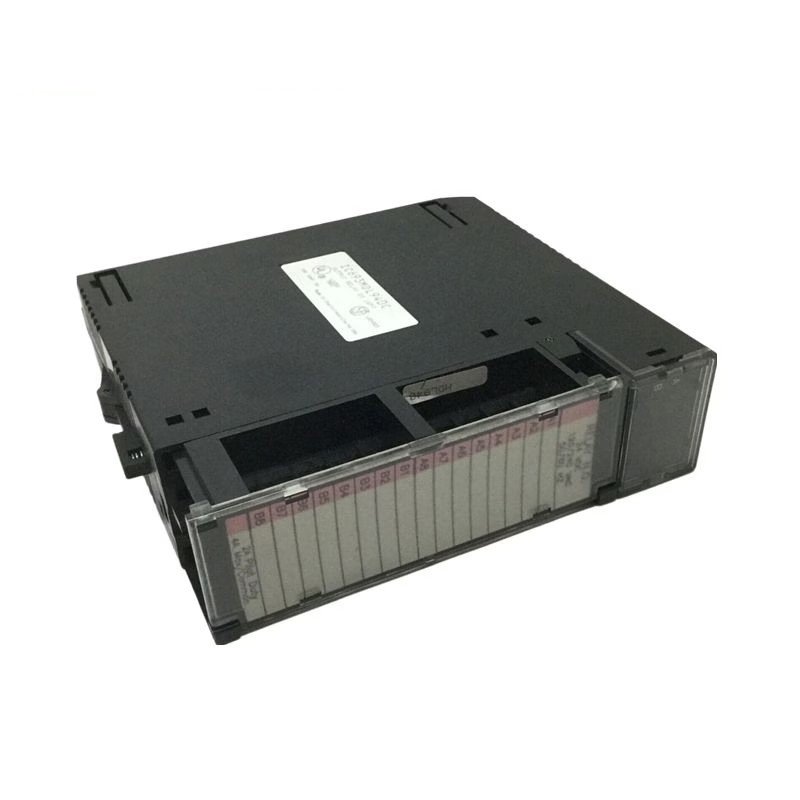

GE Fanuc IC693MDL940C Relay Output Module

The GE Fanuc IC693MDL940C is a 16-point relay output module designed for use in GE Fanuc Series 90-30 PLC systems. It features 16 normally-open (NO) relay outputs, each capable of switching up to 2 amps. This module is suitable for controlling a wide range of output devices such as solenoids, motor starters, relays, and valves. The module supports both AC and DC voltages, making it versatile for various industrial automation applications.

Technical Specifications

• Manufacturer: GE Fanuc
• Part Number: IC693MDL940C
• Product Type: 16-Point Relay Output Module
• Output Type: Normally Open (NO) Relay
• Voltage Range:
  • DC: 5 to 30 VDC
  • AC: 5 to 250 VAC (50/60 Hz)
• Rated Voltage: 24 VDC, 120/240 VAC
• Outputs per Module: 16 (organized in four groups of four outputs each)
• Maximum Load:
  • 2 amps per output
  • 4 amps per common
  • 16 amps per module
• Minimum Load: 10 mA
• Maximum Inrush Current: 5 amps
• Isolation:
  • 1500 VAC between field side and logic side
  • 500 VAC between output groups
• Response Time:
  • On Response Time: 15 ms maximum
  • Off Response Time: 15 ms maximum
• Internal Power Consumption:
  • 7 mA from 5V bus on backplane
  • 135 mA from 24V relay bus on backplane
• LED Indicators: 16 LEDs for output status (green for active, red for inactive)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5-95% non-condensing
• Weight: 0.41 kg (0.90 lbs)
