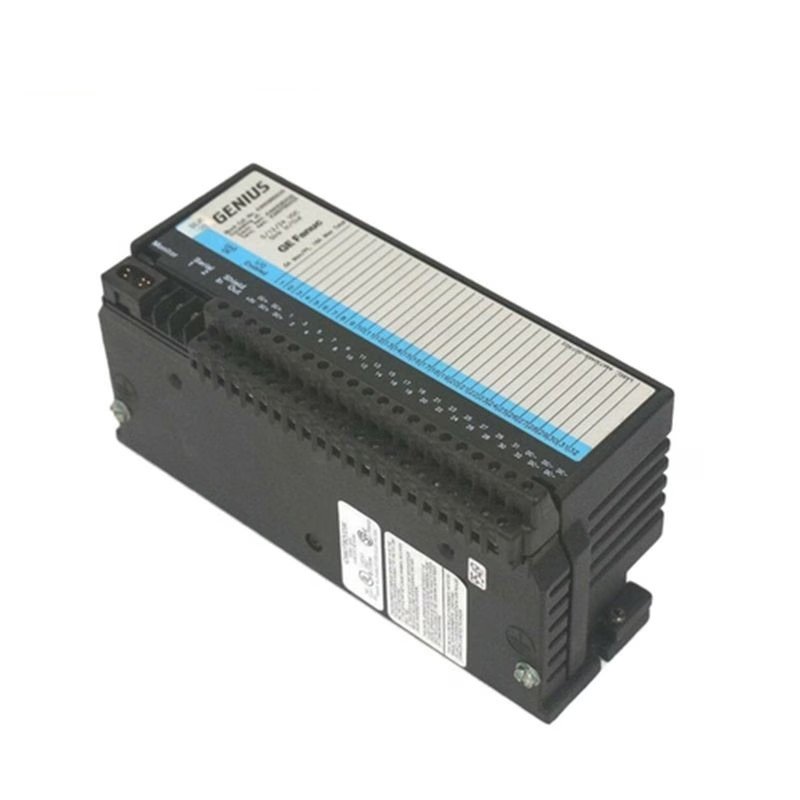

GE Fanuc IC660EBD025 Electronics Assembly

The GE Fanuc IC660EBD025 is an electronic assembly designed for use with GE Fanuc Genius I/O blocks. It integrates seamlessly with the IC660BBD025 32-circuit DC sink block, which handles current from field output devices. The module operates at a voltage range of 12 to 24 volts DC and supports a variety of input devices, including 2-wire and 3-wire electronic proximity switches. As part of the GE Fanuc Genius I/O system, it offers advanced diagnostics and communication features for industrial automation applications.

Technical Specifications

• Part Number: IC660EBD025
• Manufacturer: GE Fanuc
• Product Type: I/O Module
• Circuits: 2, 32-circuit DC blocks (source and sink)
• Operating Voltage: 5/12/24 VDC
• Input Voltage: 24 VDC
• Output Current: 0.5 Amps per channel (steady state)
• Maximum Inrush Current: 4 Amps (up to 10 microseconds)
• Output Voltage: 5 VDC, 12 VDC, 24 VDC
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 100°C
• Relative Humidity: 5% to 95% (non-condensing)
• Dimensions: 153 mm x 66 mm x 30 mm
• Weight:   1.47 kg
• Block to Block Isolation: 850 V
• Maximum Output Current: 16 Amps
• Output Turn-on Delay: 0.5 microseconds
• Output Diagnostic: Switch fault
• LED Indicators: For block operation and CPU communication
