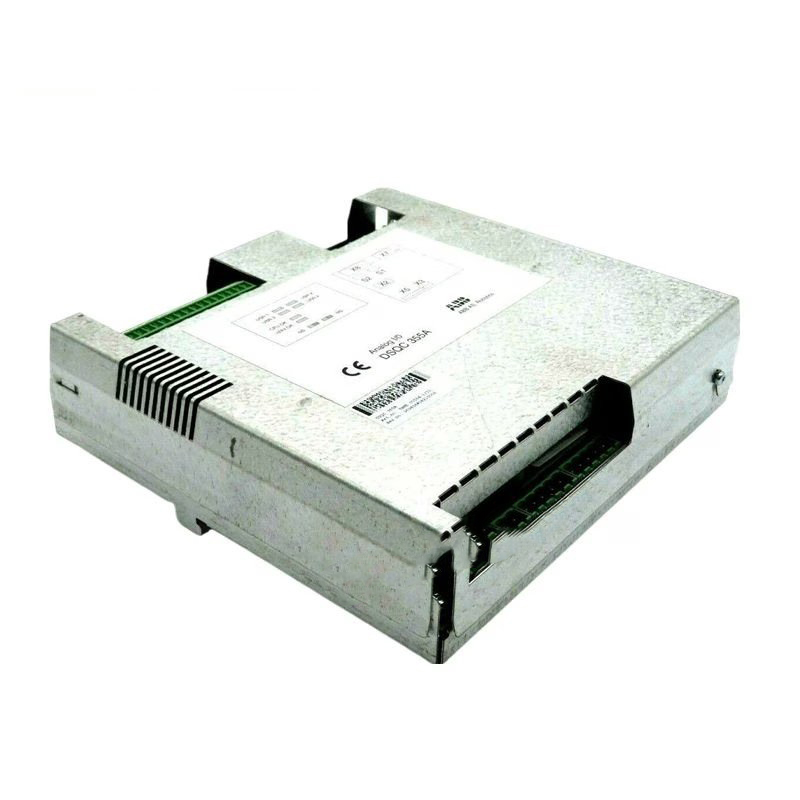

The ABB DSQC355A is a digital I/O module designed for industrial automation systems. It facilitates the connection between a control system (such as a PLC or DCS) and external devices like sensors and actuators. This module provides both analog input and output channels, enabling effective communication with various sensors and actuators that use analog signals. It is commonly used in ABB industrial robot systems, providing essential functionality for precise control and monitoring.

Technical Specifications

• Input Voltage: 24V DC
• Output Voltage: 0-10V DC
• Output Current: 2A
• Operating Temperature Range: -10°C to 60°C
• Dimensions: 100 mm x 50 mm x 20 mm (3.9 in x 1.9 in x 0.8 in)
• Weight: 0.22 kg

Analog Inputs

• Number of Channels: 4
• Resolution: 16 bits
• Input Range: ±10V, 0-10V, 4-20mA (configurable)
• Input Impedance: > 1 MΩ

Analog Outputs

• Number of Channels: 4
• Resolution: 16 bits
• Output Range: ±10V, 0-10V, 4-20mA (configurable)
• Output Current: ±10 mA

General

• Communication: Fieldbus (DeviceNet, Profibus)
• Power Supply: 24 VDC
• Operating Temperature: 0°C to 50°C
