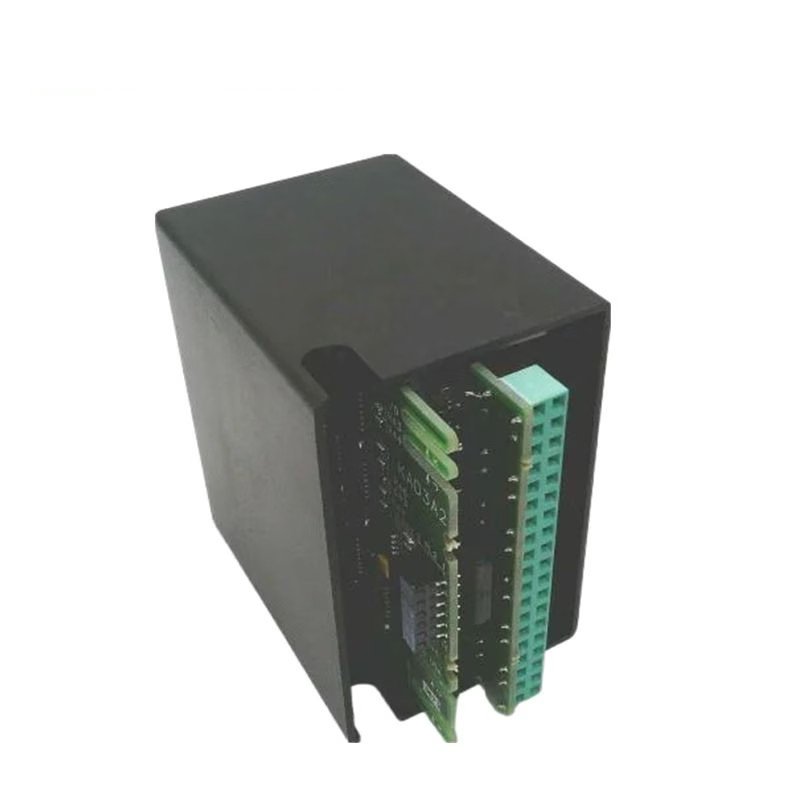

The GE Fanuc IC670ALG320A is an analog output module designed for industrial automation applications. It features four analog output channels, which can be configured for either current or voltage output. This module is commonly used to control devices such as valves, actuators, and positioners. It is compatible with the GE Fanuc Genius I/O systems and provides flexible configuration options.

Technical Specifications

• Manufacturer: GE Fanuc
• Model Number: IC670ALG320A
• Product Type: Analog Output Module
• Output Channels: 4 analog outputs (current/voltage)
• Output Range:
  • Current: 4-20mA or 0-20mA
  • Voltage: 0-10V or 0-12.5V
  • Configurable with jumper
• Power Supply Range: 20-29 VDC
• Power Dissipation:
  • Minimum: 1.5 Watts
  • Maximum: 4.3 Watts
• Accuracy: ±0.5% of full scale
• Mounting: DIN rail mountable
• Terminal Blocks: Removable for easy wiring
• LED Indicators: For module and output status
• Weight: 0.55 lbs
