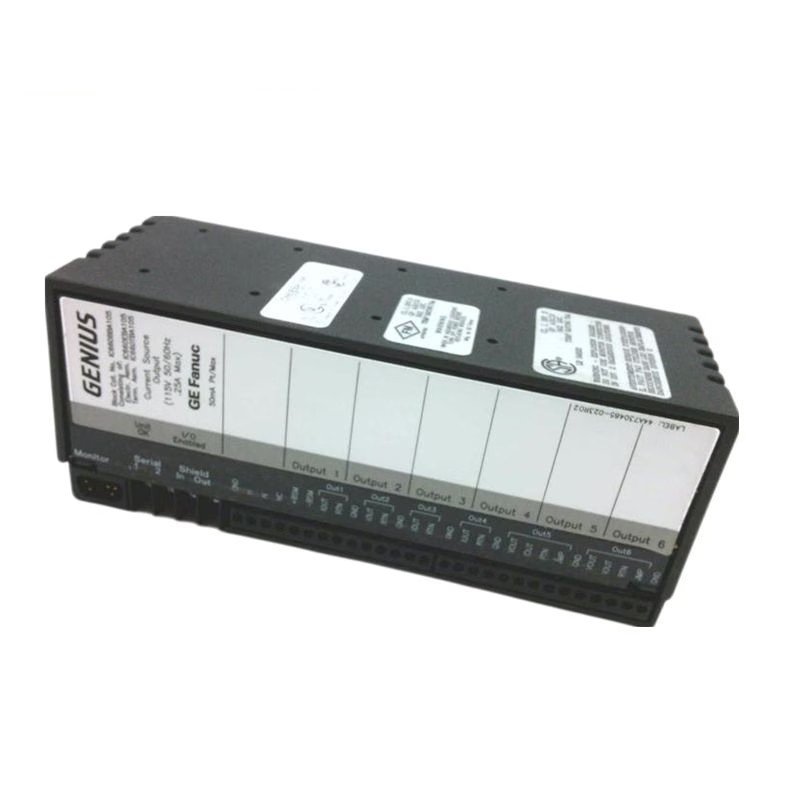

The GE Fanuc IC660BBA105 is a Genius I/O block designed for use with GE Fanuc Series 90-30 PLCs. It provides precise analog output functionality for a variety of industrial applications. This module offers six independent analog output channels, each providing a 4-20mA current signal commonly used to control various industrial devices. Its key feature is its ability to source current, which improves its resistance to noise and voltage fluctuations.

Technical Specifications

• Part Number: IC660BBA105
• Series: Genius I/O
• Manufacturer: GE Fanuc (now Emerson Automation)

Electrical Specifications

• Input Voltage: 115 VAC or 125 VDC
• Output Type: 4-20 mA (0-24 mA)
• Number of Outputs: 6
• Resolution: 6 µA
• Accuracy: 0.15% of full-scale reading
• Update Rate: 25 ms
• Baud Rate: 76.8/38.4 kbaud
• Isolation: 1500V for 1 minute
• Power Consumption: 12 Watts (Heat Dissipation)

Physical Specifications

• Size: 22.44 cm x 8.89 cm x 10.00 cm
• Weight: 3.15 lbs

Features and Performance

• Isolated Power: The output circuitry is isolated from the power source to minimize interference.
• Current Sourcing: Provides accurate and stable 4-20 mA signals for control applications.
• Configurable States: Holds the last output state or reverts to default in case of communication loss.
• Diagnostics: Includes over-range/under-range detection and feedback monitoring for fault management.
• Compatibility: Works with all Genius bus controllers and requires a handheld monitor (version 3.7 or later) for configuration.
