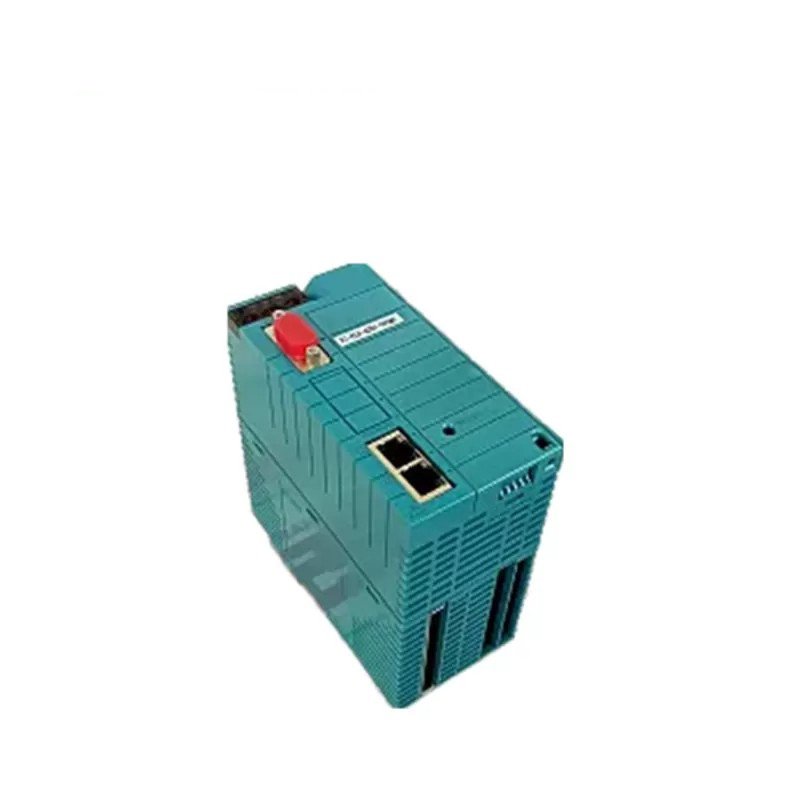

YOKOGAWA NFCP501-S05 CPU Module

The Yokogawa NFCP501-S05 is a high-performance CPU module designed for Yokogawa’s FCN-500 series of autonomous controllers. This module is central to executing control programs and managing system functions. It is engineered for reliable and efficient operation in industrial automation applications.

Technical Specifications

Real-time Operating System

• Function: Ensures deterministic and timely execution of control tasks.

IEC 61131-3 Compliance

• Support: Programming languages compliant with IEC 61131-3, enabling flexible and standardized control program development.

Duolet Virtual Machine

• Purpose: Provides a virtualized environment for running multiple control applications simultaneously.

Ethernet Connectivity

• Ports: Multiple Ethernet ports for seamless network communication.

SD Card Slot

• Function: Allows for convenient storage and loading of control programs and data.

Redundancy

• Configuration: Can be set up in a duplex configuration with another identical module for high availability and fault tolerance.

Dimensions

• Size: 65.8 x 130 x 149.3 mm

Weight

• Mass: 0.9 kg

Power Consumption

• Maximum: 1200 mA

Operating Temperature

• Range: Standard or extended temperature ranges

Additional Features

• RESET switch
• SHUTDOWN switch
• FUNC switch
• EXEC switch
• SD card LED
• Ethernet LEDs

Applications

• Process Control
• Machine Control
• Factory Automation
• Power Generation

Benefits

High Performance

• Capability: High-speed processing for real-time control of complex processes.

Reliability

• Design: Ensures reliable operation in harsh industrial environments.

Flexibility

• Support: Compatible with a wide range of programming languages and adaptable to various applications.

Scalability

• System: The FCN-500 system allows easy expansion and customization.
