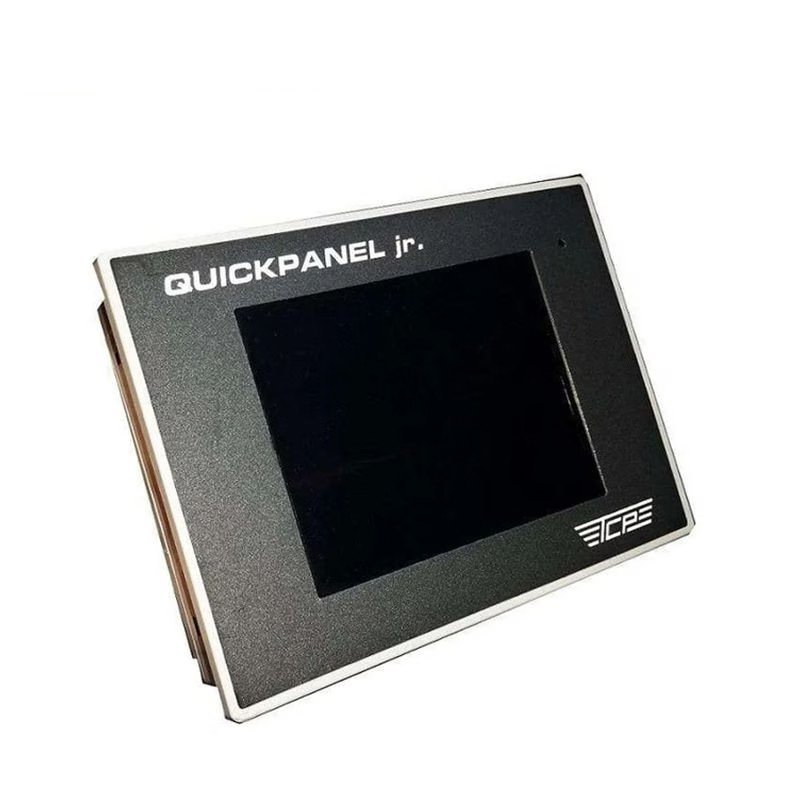

The GE Fanuc QPJ-1D100-S2P is a 4.7-inch Human-Machine Interface (HMI) designed for industrial automation applications. Part of the QuickPanel Jr. series, it offers a user-friendly, high-performance interface for control and monitoring tasks. Built to withstand harsh environments, it features a rugged design with NEMA 4X/12 and IP65 ratings for dust and water resistance. It is powered by 24 VDC and provides excellent display clarity with an STN color LCD.

Technical Specifications

• Model: GE Fanuc QPJ-1D100-S2P
• Screen Size: 4.7 inches
• Display Type: STN Color LCD
• Resolution: 320 x 240 pixels
• Input Voltage: 24 VDC
• Power Consumption: Up to 50 VA
• NEMA Rating: Type 4X/12, IP65 (dust and water-resistant)
• Software: QuickDesigner Version 3.7
• Operating Temperature: -20°C to +55°C
• Cooling: Natural air convection
• Dimensions: 6.5 in x 4.8 in x 3.0 in (16.5 cm x 12.2 cm x 7.6 cm)
• Weight: 0.7 kg
• Communication: Modbus RTU via RS485 or RS232
