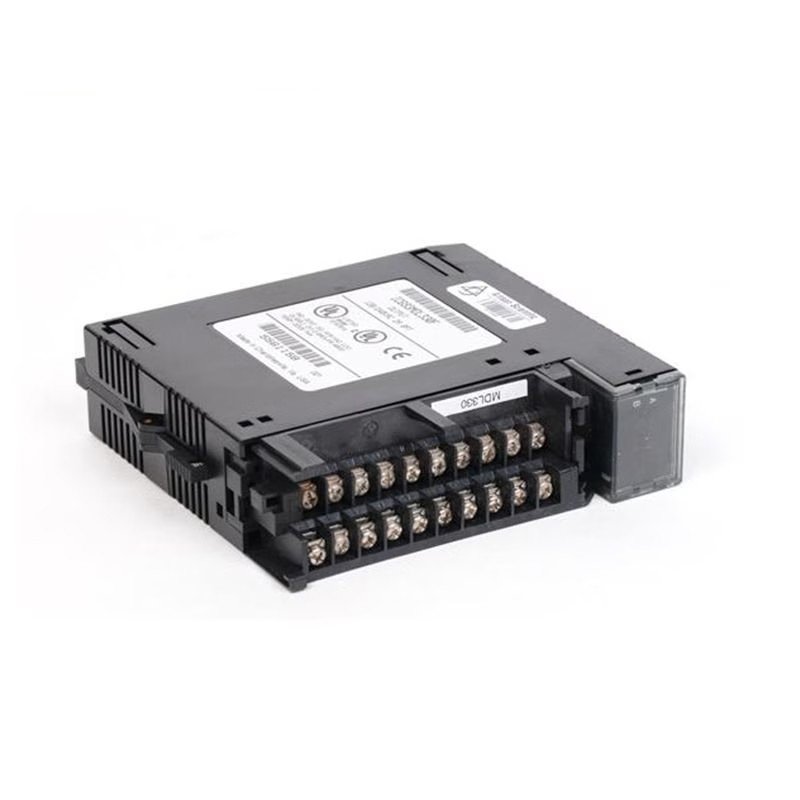

The GE Fanuc IC693MDL330 is an output module designed for the GE Series 90-30 programmable logic controller (PLC). It operates with AC voltage ranging from 120 to 240 V and supports a current rating of 2 A per point. This module features 8 output points organized into 2 isolated groups of 4 points each, making it suitable for controlling both resistive and inductive loads.

Technical Specifications

• Brand: GE Intelligent Platforms/GE Fanuc
• Series: Series 90-30
• Part Number: IC693MDL330
• Product Type: Output Module
• Rated Voltage: 120 to 240 V AC
• Output Voltage Range: 85 to 264 V AC
• Output Points: 8 (2 isolated groups of 4 points each)
• Isolation: 1500 V between field and logic sides
• Max. Inrush Current per Cycle: 20 A
• Minimum Load Current: 100 mA
• Max. Output Voltage Drop: 1.5 V
• Output Current per Point: 2 A
• Frequency: 50 to 60 Hz
