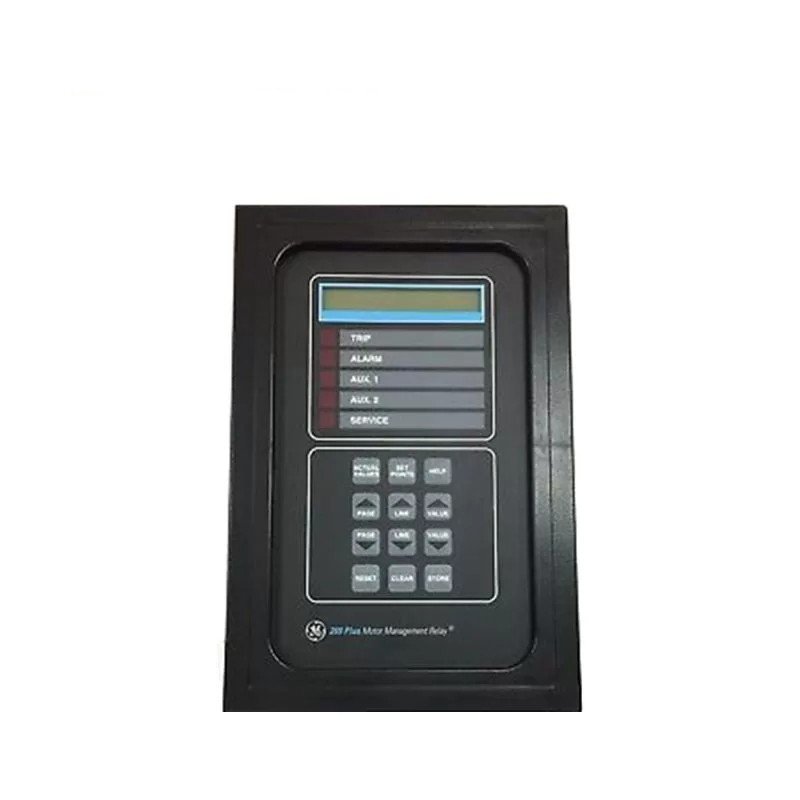

GE Fanuc 269PLUS-100P-HI Motor Management Relay

The 269PLUS-100P-HI is a motor management relay manufactured by GE Multilin. It features a 100 Ohm platinum RTD for temperature sensing. The relay is designed for monitoring and protecting medium-sized motors, ensuring both operational safety and efficiency.

Specifications

• Shipping Dimensions: 11.40″ (W) x 7.50″ (H) x 16.00″ (D)
• Shipping Weight: 7.75 lbs
• Ambient Temperature Range: -25°C to 60°C (storage and operation)
• Inputs:
  • Meter communication port
  • Spare input
  • Differential relay input
  • Speed switch input
  • Programming access keyswitch
  • External reset pushbutton
  • Emergency restart keyswitch
  • 6 stator RTDs, 4 additional RTDs
  • Ground fault and phase CTs
  • Universal AC/DC supply terminals

Motor Protection Features

• Overload Protection: Prevents motor overheating and protects from operator misuse.
• Shock Hazard Prevention: Safeguards personnel from electrical hazards.
• Mechanical Jam Detection: Protects equipment like pumps, fans, and compressors.
• Custom Overload Curves: Supports FlexCurve for unique rotor or stator damage protection.

Control Features

• Actual Values Mode: Displays real-time motor parameters with the press of a key.
• Setpoints Mode: Allows users to adjust trip, alarm, and relay setpoints for precise control.

Inputs/Outputs

• 12 Programmable RTDs: Provides flexible monitoring for motor protection.
• 5 Factory-Programmed Digital Inputs: Customizable for specific motor needs.
• Programmable Analog Input: Enhances adaptability for various applications.
• 4 Output Relays: Facilitates comprehensive control and monitoring.
