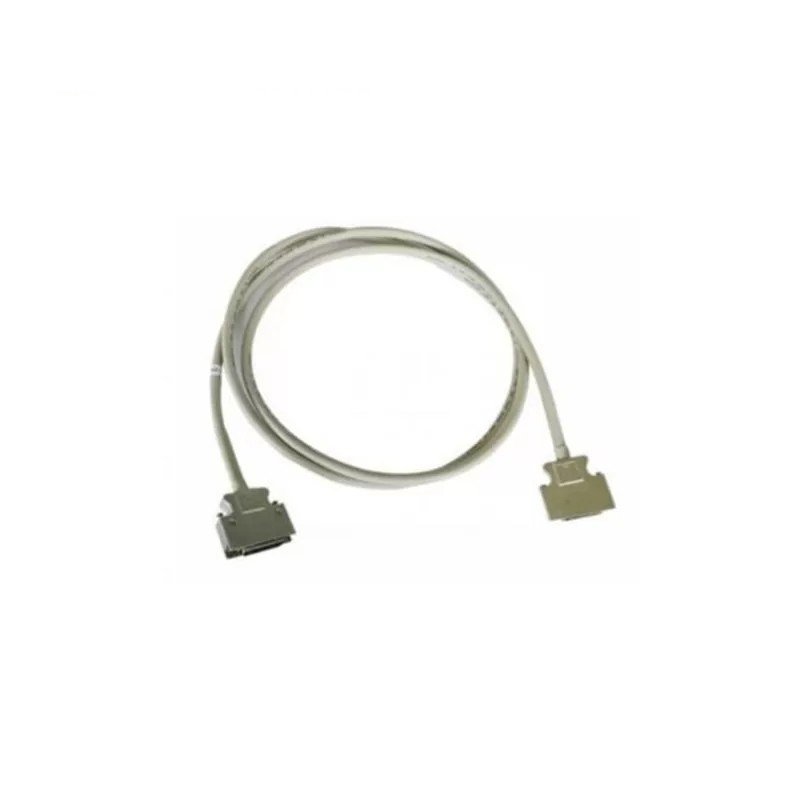

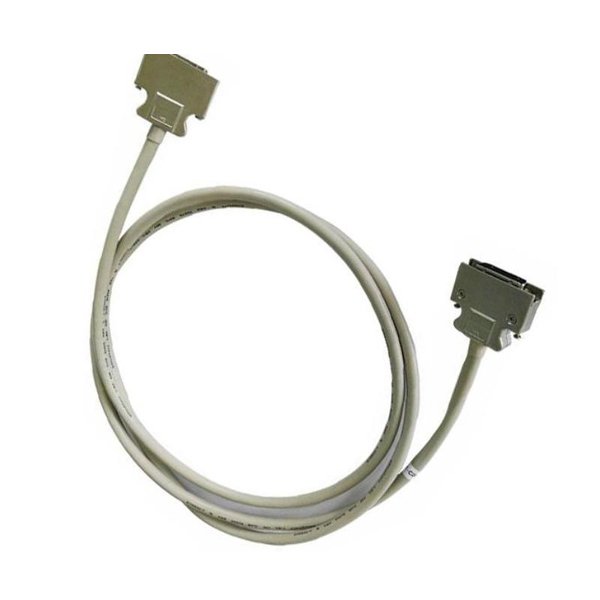

The Yokogawa YCB301-C100 is a 1-meter cable designed for Yokogawa’s Electronic Serial Bus (ESB) network. It facilitates reliable data exchange between Field Control Units (FCUs) and Advanced Network Bus (ANB) node units.

Features

• Connects ESB devices: Enables seamless communication between Yokogawa’s ESB system components.
• 1-meter length: Ideal for shorter distances within an automation system cabinet.

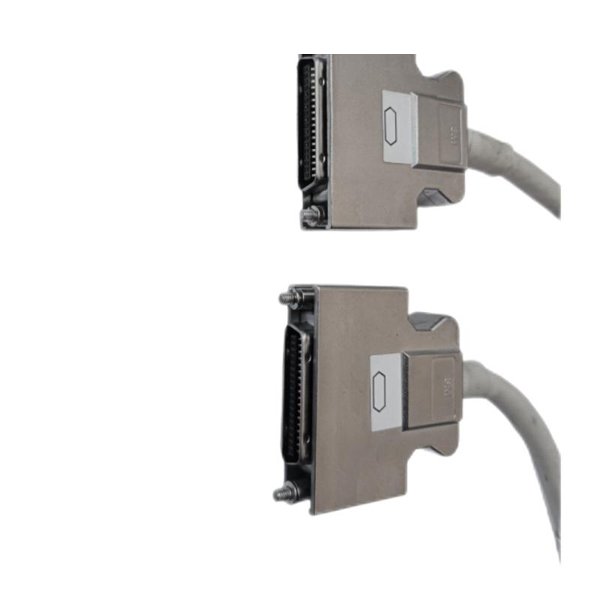

• 36-pin connectors (both ends): Ensures secure and reliable signal transmission.
• Power and data transmission: Supports both power delivery and data exchange over a single cable.

Applications

• Yokogawa automation systems using ESB bus architecture
• Industrial process control and data acquisition systems

Logical Steps

• Yokogawa FCU and ANB node units require communication for data exchange.
• The YCB301-C100 cable connects these devices via its 36-pin connectors.
• The cable transmits both power and data signals, simplifying system wiring.
• This enables real-time data exchange within the Yokogawa ESB network.

In essence, the YCB301-C100 provides a reliable and efficient way to connect Yokogawa ESB devices, promoting seamless communication within industrial automation systems.
