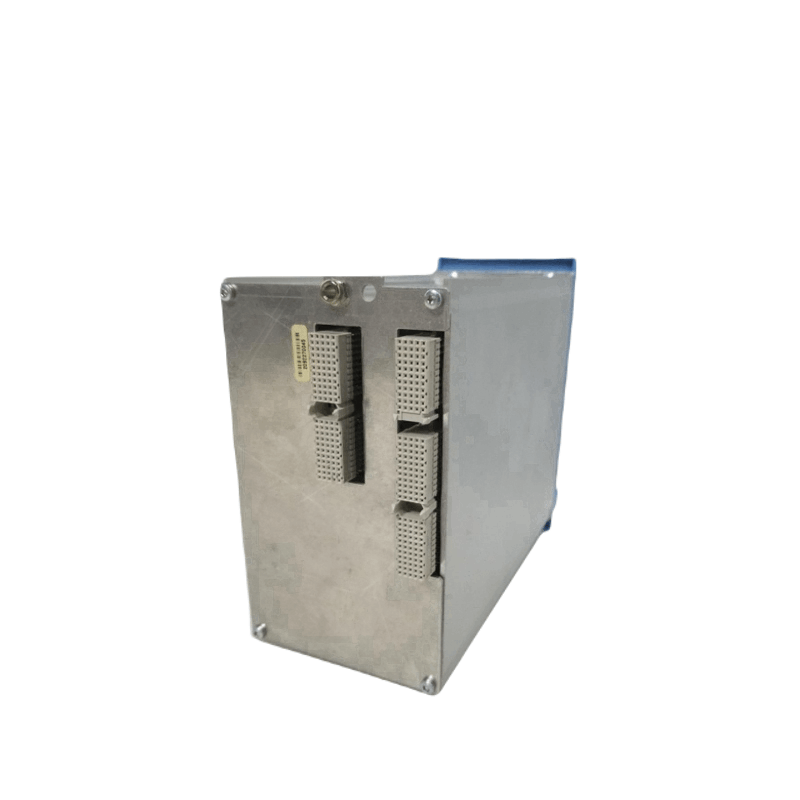

The Honeywell QPP-0002 is a high-performance processor used in the Honeywell Safety Manager system. This second-generation module offers improved performance compared to its predecessor, the QPP-0001.

Product Information

• Part Number: FC-QPP-0002
• Category: PLCs/Machine Control
• Subcategory: PLC Module/Rack
• Manufacturer: Honeywell
• Product Type: Quad Processor
• Product No.: FC-QPP-0002
• Status: Discontinued by Manufacturer

Technical Specifications

• Operating Temperature:
  • Outside module: –5°C to +70°C (23°F to 158°F)
  • Inside module: –5°C to +70°C (23°F to 158°F)
• Storage Temperature: –40°C to +85°C (–40°F to +185°F)
• Relative Humidity: 10% to 95% (non-condensing)

Power Supply

• 24 Vdc Supply Voltage: –15% to +30%
• 24 Vdc Supply Current: Max. 25 mA
• 5 Vdc Supply Voltage: ±5%
• 5 Vdc Supply Current: Max. 1.2 A
• Output Supply Voltage: 15 to 31 Vdc
• Output Resistance: Approx. 1.1 kΩ
• Short Circuit Protection: Continuous
• Voltage (High): 15 to 32 Vdc
• Voltage (Low): <4 V (reverse polarity protected)
• Input Current: Approx. 8 mA at 24 Vdc
• Output Current: 750 mA per output

Dimensions and Weight

• Dimensions (H × W × D): 176 mm × 88.5 mm × 212 mm
• Weight: 1.3 kg
