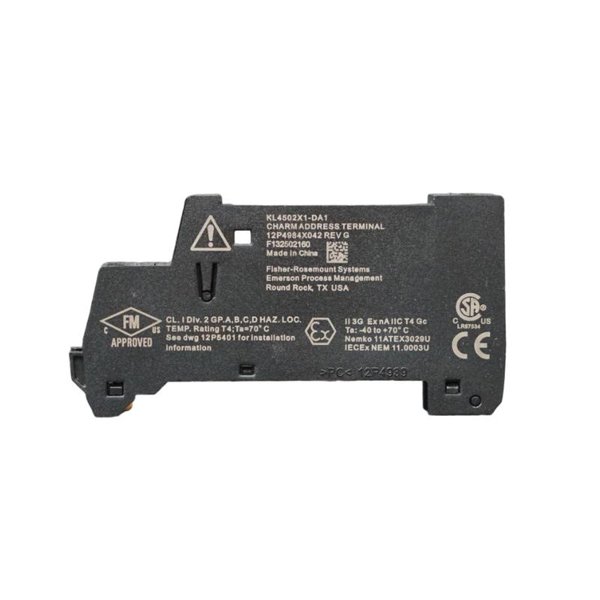

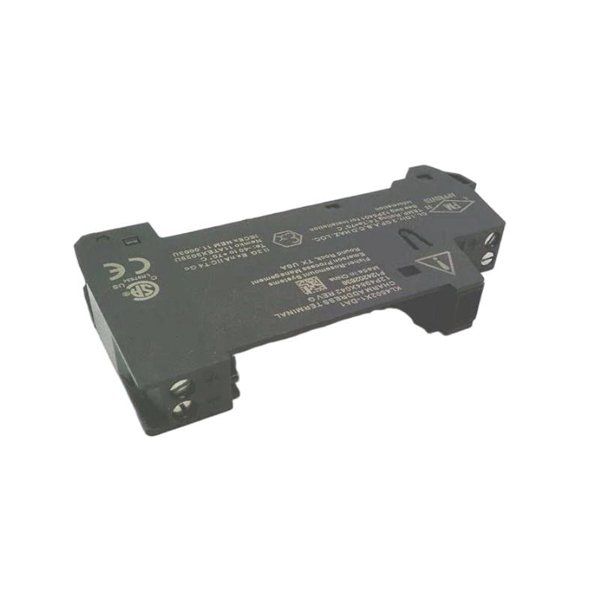

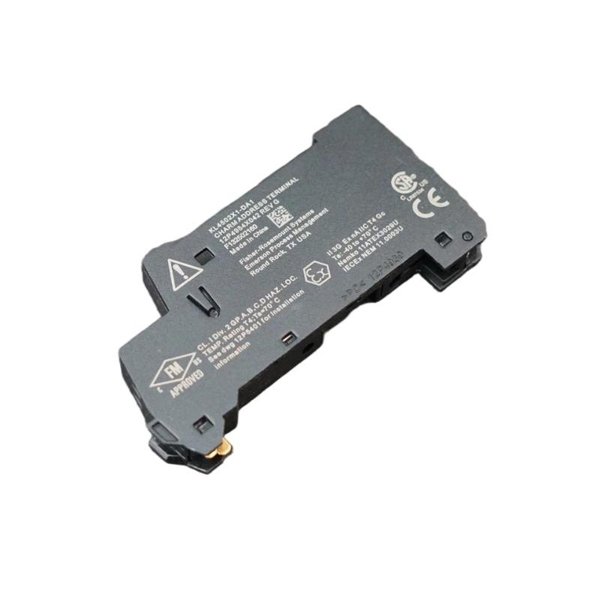

The Emerson KL4502X1-DA1 CHARM Terminal Block is an essential component for the Emerson CHARM I/O system, designed to provide secure and reliable connections between field devices and CHARM I/O modules. This terminal block serves as a connection point for wiring, allowing easy and safe integration of sensors, actuators, and other industrial devices into the control system. The KL4502X1-DA1 terminal block is ideal for use in applications requiring flexible and modular I/O configurations, where efficient wiring and integration are essential.

With a compact design and reliable build quality, the KL4502X1-DA1 terminal block supports the quick and secure termination of multiple I/O signals, ensuring efficient communication between field devices and controllers. It helps simplify the process of connecting devices to the Emerson CHARM system, reducing installation time and minimizing the potential for wiring errors.

Technical Specifications

The following table outlines the key technical specifications for the Emerson KL4502X1-DA1 CHARM Terminal Block:

Product Applications

The Emerson KL4502X1-DA1 CHARM Terminal Block is used in industrial environments where secure and efficient wiring between field devices and the CHARM I/O modules is required. Key applications include:

• Industrial Automation: Facilitates reliable signal wiring between sensors, actuators, and control systems in automated industrial settings.

• Process Control Systems: Essential in process industries where multiple I/O signals need to be routed from field devices to the control system.

• Energy Management: Used in energy monitoring systems to ensure proper termination of signals from energy meters and sensors.

• Manufacturing Systems: Enables the connection of multiple inputs and outputs in automated manufacturing lines, improving system flexibility and control.

• Water and Wastewater Treatment: Ideal for connecting sensors and controllers in water treatment plants, ensuring efficient data collection and control.

• Oil & Gas: Provides reliable connection points for critical field devices in the oil and gas industry, ensuring operational continuity.

Product Advantages

• Flexible I/O Integration: The terminal block enables easy and secure wiring of multiple I/O signals, ensuring smooth integration with CHARM modules.

• Compact Design: With its small form factor (107 x 41 x 105 mm), it is designed for space-constrained installations without compromising performance.

• Efficient Power Consumption: Consuming only 0.5 W of power, the KL4502X1-DA1 is an energy-efficient solution, helping to reduce overall system power usage.

• High Number of Terminals: The terminal block offers 16 terminals for connecting multiple signals, providing flexibility in system configuration.

• Durable Construction: Designed to operate in a wide range of industrial environments, it is built to withstand harsh conditions and maintain reliable performance.

• IP20 Protection: The terminal block is protected from solid objects larger than 12 mm, ensuring safety and reliability in industrial applications.

FAQ

1. What is the power supply requirement for the KL4502X1-DA1 terminal block?

The terminal block requires a 24V DC ±10% power supply.

2. How many terminals does the KL4502X1-DA1 have for signal connections?

The terminal block has 16 terminals available for signal input and output connections.

3. Can the KL4502X1-DA1 terminal block be used in high-humidity environments?

Yes, the KL4502X1-DA1 can be used in environments with humidity levels ranging from 5% to 95% RH, non-condensing.

4. What is the power consumption of the KL4502X1-DA1?

The power consumption of the KL4502X1-DA1 terminal block is 0.5 W.

5. What is the operating temperature range for the KL4502X1-DA1?

The operating temperature range for the KL4502X1-DA1 is from -20°C to 60°C.

6. Can the KL4502X1-DA1 be used in energy management systems?

Yes, the terminal block is ideal for use in energy management systems for connecting I/O signals from energy meters and sensors.

7. What type of protection does the KL4502X1-DA1 provide?

The KL4502X1-DA1 has an IP20 protection rating, meaning it is protected from solid objects larger than 12 mm but not from water.

8. How is the KL4502X1-DA1 terminal block mounted?

The terminal block is designed for direct connection to CHARM modules, making installation straightforward.

9. What is the storage temperature range of the KL4502X1-DA1?

The storage temperature range for the terminal block is from -40°C to 85°C.

10. Does the KL4502X1-DA1 terminal block support diagnostics?

No, the KL4502X1-DA1 is a simple terminal block used for wiring and signal connection, and it does not have built-in diagnostic features.
