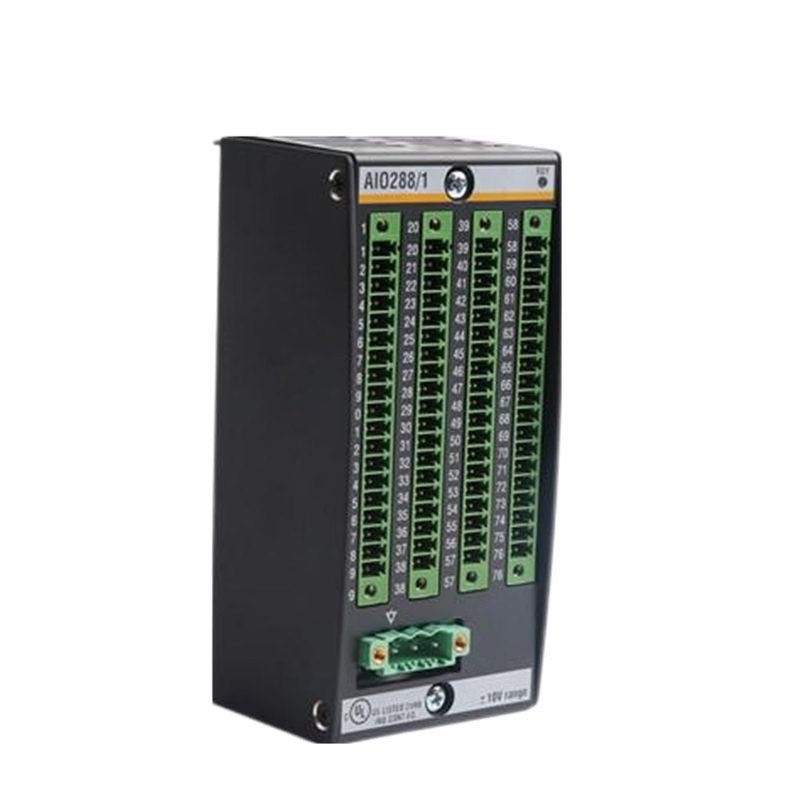

Bachmann AIO288/1 Analog Input/Output Module
Popular Product

Bachmann AIO288/1 Analog Input/Output Module


Manufacturer:Bachmann electronic GmbH

Product No.:AIO288/1

Condition:Brand NEW & in Stock

Product Type:Analog Input/Output Module

Product Origin:Austria

Payment:T/T, Western Union

Unit Price:USD700

Dimensions:230 mm x 170 mm x 100 mm

Weight:0.2 kg

Product Description

The Bachmann AIO288/1 is an advanced analog input/output module, designed to offer high precision and reliability for industrial automation systems. With 8 analog input channels and 8 analog output channels, it enables precise control and monitoring in complex industrial applications. Its versatile input signal types and exceptional accuracy make it an ideal choice for process control and data acquisition systems.

Technical Specifications

  • Product Type: Analog Input/Output Module
  • Manufacturer: Bachmann
  • Part Number: AIO288/1
  • Channels: 8 analog input channels, 8 analog output channels

Input Signal Types

  • Voltage: ±1V or ±10V
  • Current: 0-20mA
  • Input Impedance:
    • 100 kΩ for voltage inputs
    • 243 Ω for current inputs

Resolution and Accuracy

  • Resolution: 14 bits
  • Accuracy:
    • Voltage Inputs: ±0.05% FS at 25°C
    • Current Inputs: ±0.1% FS at 25°C

Performance

  • Sampling Time: 200 μs
  • Communication: Galvanically isolated from the system

Physical Characteristics

  • Dimensions: 230 mm x 170 mm x 100 mm
  • Weight: 0.2 kg
  • Operating Temperature Range: -30°C to +60°C
