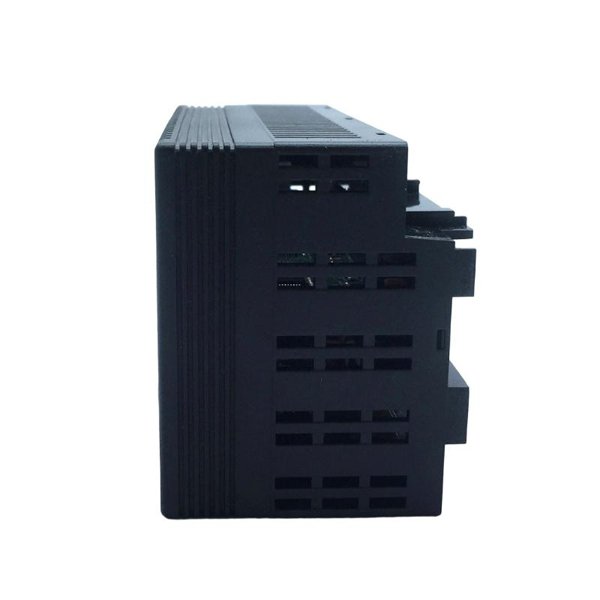

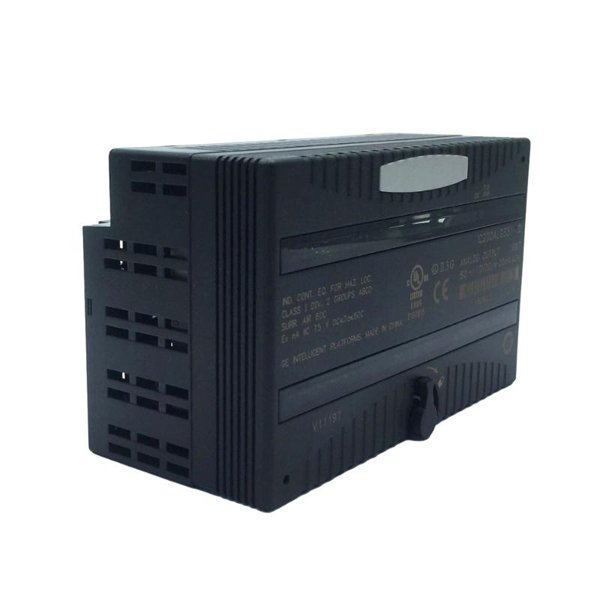

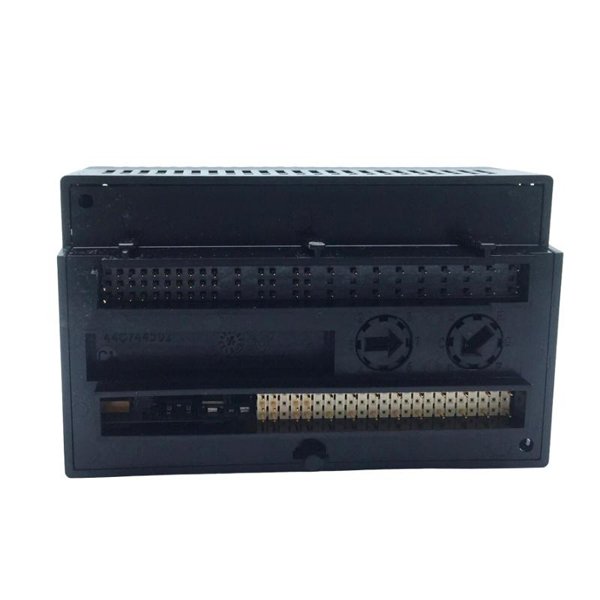

The GE IC200ALG331 is a high-precision Analog Output Module from the VersaMax series, designed for industrial automation systems. It provides 4 high-resolution analog output channels, capable of delivering both voltage and current signals to control devices such as actuators, valves, and motors.

The module is engineered with 14-bit resolution and 1500 VAC isolation, ensuring accurate signal transmission while protecting the module and connected devices from electrical noise or transients. Its compact design allows easy integration into VersaMax PLC racks, making it suitable for distributed and modular control systems.

The IC200ALG331 is widely recognized for reliable performance, precise output, and robust electrical protection, making it a core component for process control, manufacturing automation, and other industrial applications.

Product Specifications

Applications

The IC200ALG331 module is commonly used in a variety of industrial scenarios:

• Process Control Systems: Precise control of temperature, pressure, and flow via analog actuators.

• Manufacturing Automation: Drives servo motors, hydraulic valves, and proportional control devices.

• Water & Wastewater Treatment: Regulates pumps and chemical dosing systems with accurate analog outputs.

• Energy Management Systems: Interfaces with energy meters, variable speed drives, and load controllers.

• Building Automation: Controls HVAC systems, lighting dimmers, and other analog-controlled equipment.

• Industrial Robotics: Provides smooth, precise analog signals to robotic actuators and motion systems.

Advantages

• High Accuracy: 14-bit resolution ensures precise analog output.

• Electrical Isolation: 1500 VAC isolation protects both the module and connected devices.

• Dual Output Capability: Supports both voltage and current signals.

• Fast Response: 7 ms update rate allows real-time control in dynamic systems.

• Compact and Modular: Fits seamlessly into VersaMax I/O racks.

• Reliable Operation: Designed for industrial environments with wide temperature and humidity tolerance.

• Ease of Integration: Compatible with other VersaMax modules for modular system design.

• Safety Compliance: UL and CE certified for industrial standards.

FAQ

1. What types of analog signals can IC200ALG331 output?

   It supports both voltage (±10 VDC) and current (4–20 mA) outputs.

2. How many channels does this module provide?

   It provides 8 individually isolated analog output channels.

3. What is the resolution of the output signals?

   The module features 14-bit resolution for high-precision control.

4. What is the maximum update rate for each channel?

   Each channel can update outputs at approximately 7 milliseconds.

5. Does the module provide isolation between field and logic?

   Yes, it has 1500 VAC isolation for each channel.

6. What load resistances are supported?

   Voltage output requires ≥2 kΩ, and current output supports 500 Ω to 1000 Ω.

7. Can the module be mounted in a VersaMax I/O rack?

   Yes, it is fully compatible with standard VersaMax I/O racks.

8. What is the operating temperature range?

   The module operates reliably from 0°C to 60°C.

9. Is this module suitable for precise process control applications?

   Yes, its 14-bit resolution and accurate voltage/current outputs make it ideal for process control.

10. Does the module comply with industrial safety standards?

    Yes, it is UL and CE certified.
