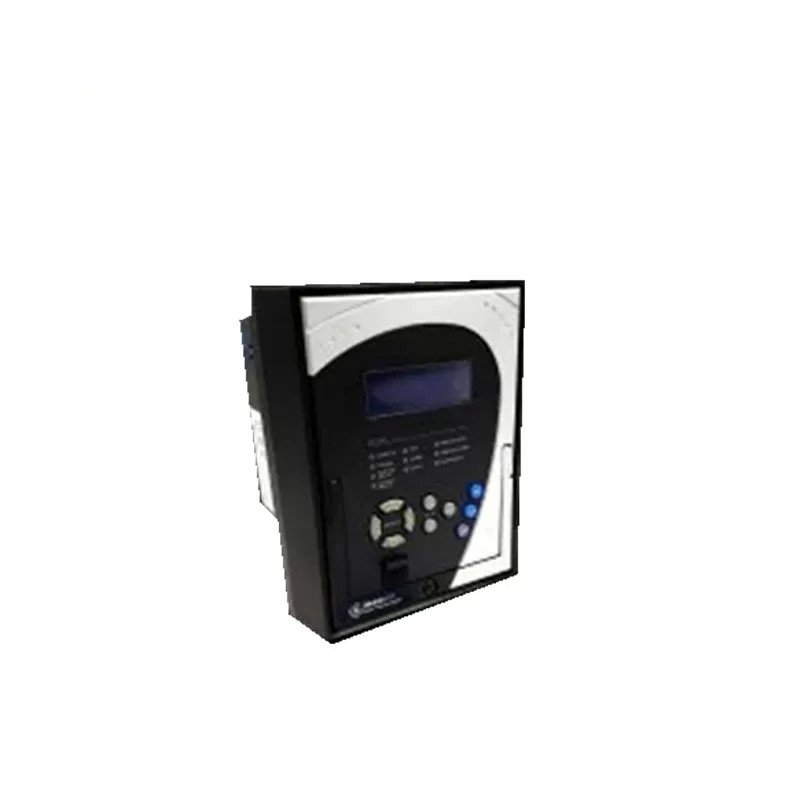

GE 350-C-P5-G5-H-S-M-N-P-SN-D-N Feeder Protection System

The GE 350-C-P5-G5-H-S-M-N-P-SN-D-N is a feeder protection relay from GE Multilin’s product line. It protects feeders in power distribution systems from faults like overcurrent, ground faults, and phase faults. The relay offers various protection functions, including:

• Overcurrent protection: Detects and trips on overcurrent conditions to prevent conductor and equipment damage.
• Ground fault protection: Detects and trips on ground faults to prevent personnel injury and equipment damage.
• Phase fault protection: Detects and trips on phase faults to isolate faulted sections of the feeder and prevent further damage.
• Reclosing: Automatically attempts to re-energize the feeder after a fault clears, restoring power quickly.
• Communication: Communicates with SCADA systems for remote monitoring and control.

Applications

The GE 350-C-P5-G5-H-S-M-N-P-SN-D-N is versatile and reliable, making it well-suited for various applications, including:

• Industrial power distribution systems
• Commercial power distribution systems
• Utility power distribution systems

Technical Specifications

• Power supply: 125-250VDC, 100-240VAC
• Control: CLP, Lockout (86)
• Case design: Drawout
• 3-phase current inputs: 5A
• Ground input: 5A

Additional Features

• Compact footprint: Saves valuable space in control panels.
• Easy-to-use menu-driven interface: Simplifies configuration and operation.
• Extensive self-testing capabilities: Ensures reliable performance.
• Backward compatible: Works with previous GE Multilin feeder protection relays.
