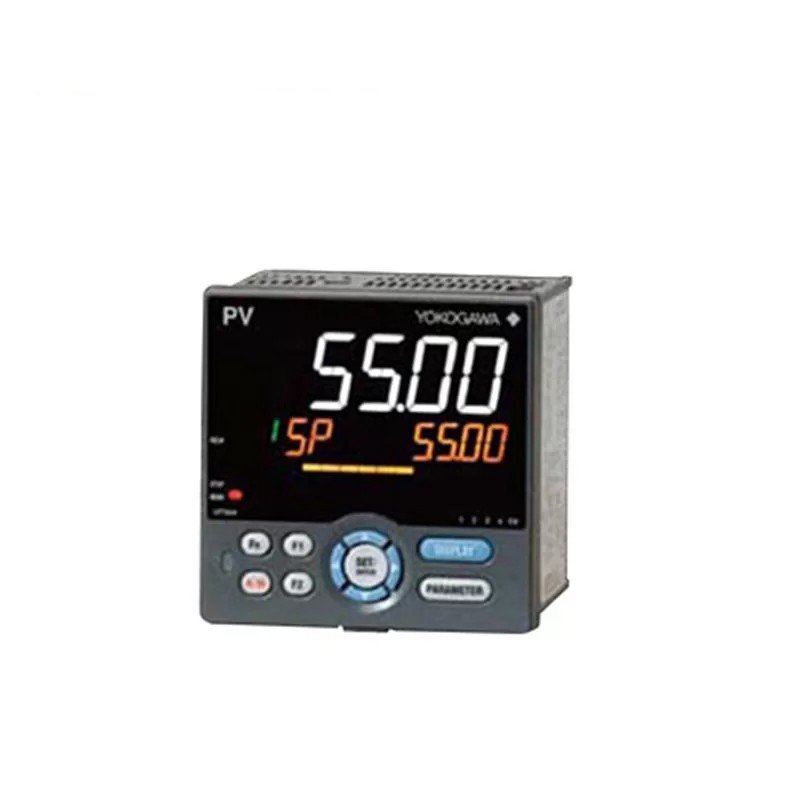

Yokogawa UP55A-002-11-00/HA/CT Profile Controller
Manufacturer: Yokogawa
Product Number: UP55A-002-11-00/HA/CT
Category: Programmable Profile Controller (1/4 DIN)
Program Capacity: Up to 30 program patterns
Monitoring Functions: Multiple PV events, time events, alarms
Control Functions: PID control with auto-tuning
Special Features: Ladder sequence control, program pattern retransmission
Communication: RS-485 standard
Application: Temperature, pressure, flow control in heat treatment, washing, sterilizing processes
Product Description
The YOKOGAWA UP55A-002-11-00/HA/CT is a highly advanced profile controller designed for precise temperature control in various industrial applications. It integrates cutting-edge features to ensure optimal performance, reliability, and user-friendliness.
Technical Specifications
- Control Type: PID, ON/OFF
- Input Types: Thermocouple, RTD, Voltage, Current
- Control Outputs: Relay, Voltage pulse, Current
- Power Supply: 100-240V AC, 50/60Hz
- Display: 5-digit LED display for process value (PV) and setpoint (SP)
- Communication: RS-485 (Modbus/RTU protocol)
- Programming: 30 programs with 300 segments
- Alarm Functions: 3 independent alarms (high, low, deviation, band, etc.)
- Operating Temperature: -10 to 50°C
- Dimensions: 96 x 96 x 100 mm
- Weight: 500g
- Mounting: Panel mounting
Features
- Profile Control: Supports complex temperature profiles with multiple segments for versatile applications.
- Auto-tuning: Automatically optimizes PID parameters for accurate and stable control.
- Easy Configuration: User-friendly interface with clear LED display for quick setup and monitoring.
- Versatile Inputs/Outputs: Compatible with various sensor types and output configurations.
- Communication Capability: RS-485 interface for integration with other devices and systems.
Loading comments...
Yokogawa UP55A-002-11-00/HA/CT Profile Controller
Manufacturer: Yokogawa
Product Number: UP55A-002-11-00/HA/CT
Category: Programmable Profile Controller (1/4 DIN)
Program Capacity: Up to 30 program patterns
Monitoring Functions: Multiple PV events, time events, alarms
Control Functions: PID control with auto-tuning
Special Features: Ladder sequence control, program pattern retransmission
Communication: RS-485 standard
Application: Temperature, pressure, flow control in heat treatment, washing, sterilizing processes
Product Description
The YOKOGAWA UP55A-002-11-00/HA/CT is a highly advanced profile controller designed for precise temperature control in various industrial applications. It integrates cutting-edge features to ensure optimal performance, reliability, and user-friendliness.
Technical Specifications
- Control Type: PID, ON/OFF
- Input Types: Thermocouple, RTD, Voltage, Current
- Control Outputs: Relay, Voltage pulse, Current
- Power Supply: 100-240V AC, 50/60Hz
- Display: 5-digit LED display for process value (PV) and setpoint (SP)
- Communication: RS-485 (Modbus/RTU protocol)
- Programming: 30 programs with 300 segments
- Alarm Functions: 3 independent alarms (high, low, deviation, band, etc.)
- Operating Temperature: -10 to 50°C
- Dimensions: 96 x 96 x 100 mm
- Weight: 500g
- Mounting: Panel mounting
Features
- Profile Control: Supports complex temperature profiles with multiple segments for versatile applications.
- Auto-tuning: Automatically optimizes PID parameters for accurate and stable control.
- Easy Configuration: User-friendly interface with clear LED display for quick setup and monitoring.
- Versatile Inputs/Outputs: Compatible with various sensor types and output configurations.
- Communication Capability: RS-485 interface for integration with other devices and systems.
