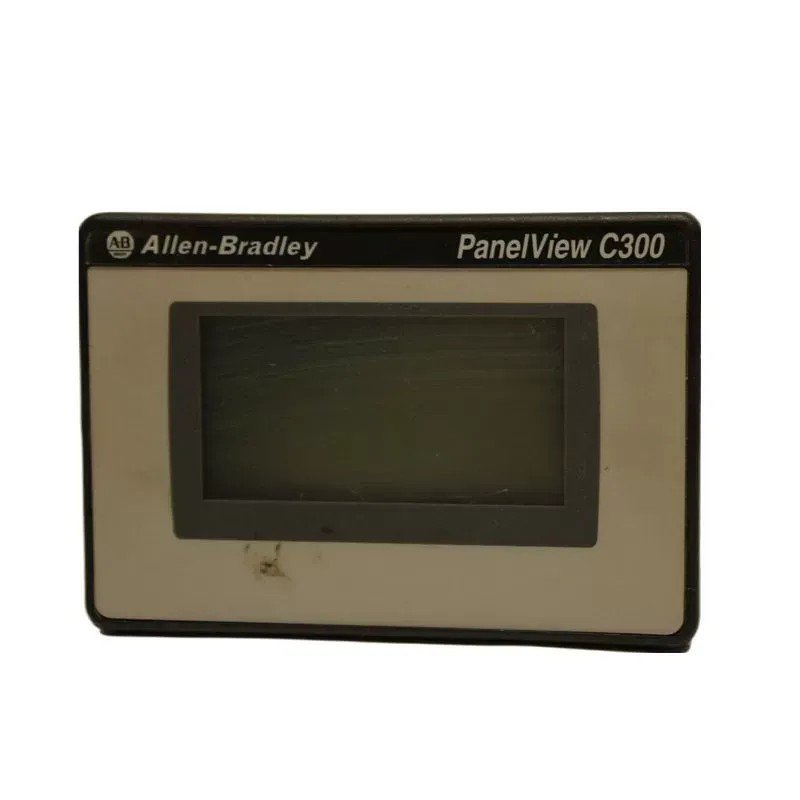

Allen-Bradley 2711C-T3M PanelView C300 Component Terminal

The Allen-Bradley 2711C-T3M is a PanelView C300 Component Terminal designed for compact and efficient human-machine interface (HMI) applications. This operator terminal provides essential control and monitoring capabilities in industrial environments with its compact form factor and clear display.

Technical Specifications

• Type: PanelView C300 Component Terminal
• Display Size: 3 inches diagonal
• Display Area (WxH): 67 x 33 mm (2.64 x 1.30 in.)
• Resolution: 128 x 64 pixels
• Backlight: Minimum 50,000 hours life; non-replaceable
• Status Indicator: White
• Battery Life: Minimum 5 years at 25 °C (77 °F)
• Programming Port: USB device port
• Communication Ports:
  • RS-232 (DH-485)
  • RS-232 (DF1)
  • RS-485
• Multi-Vendor Communication: Supports Modbus and Siemens MPI devices
• Memory Card: USB flash drive
• Preferred Controllers: MicroLogix, SLC™, and Micro800 controllers
• Input Voltage, DC: 18…30V DC (24V DC nominal)
• Power Consumption, DC: 5 W maximum (0.21 A at 24V DC)
• Weight: 0.30 kg (0.65 lb)
• Dimensions (HxWxD): 119 x 139 x 55 mm (4.69 x 5.47 x 2.15 in.)
• Cutout Dimensions (HxW): 100 x 120 mm (3.94 x 4.72 in.)
