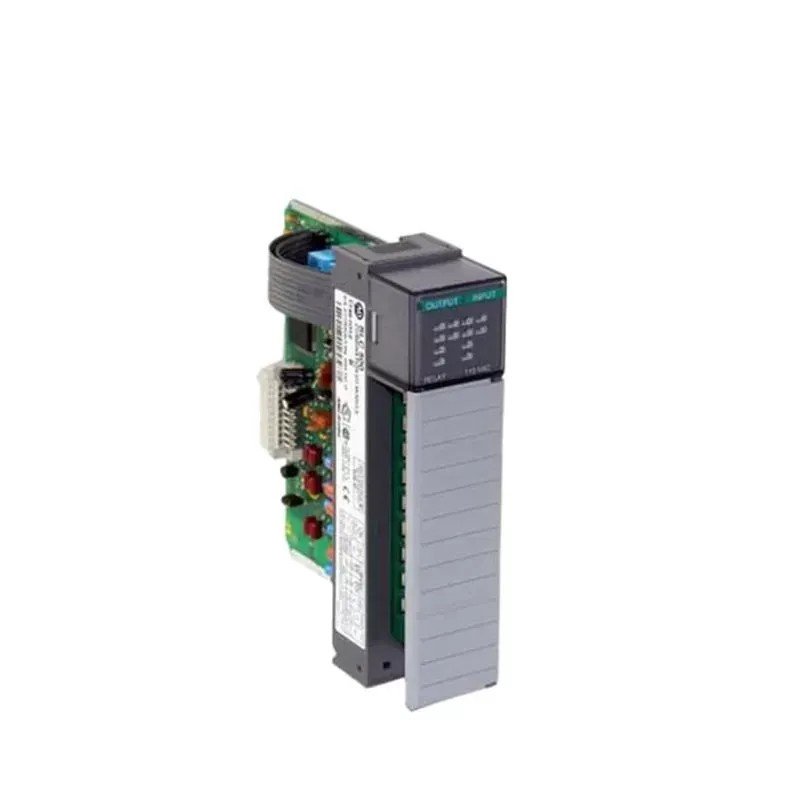

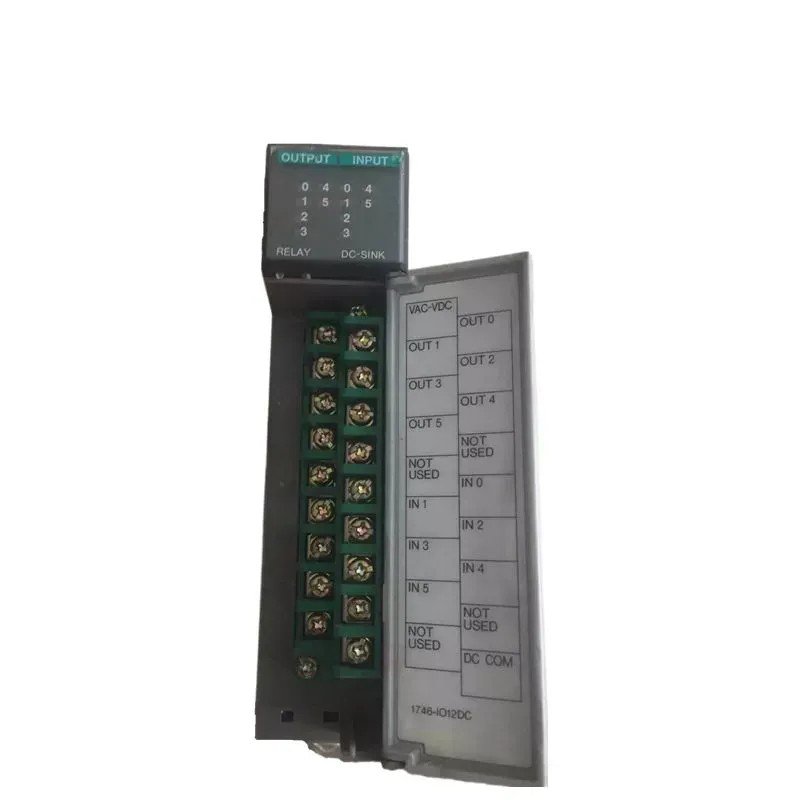

The Allen-Bradley 1746-IO12DC is a compact, versatile digital I/O combination module for SLC 500 controllers. It provides a reliable, efficient solution for a wide range of industrial automation tasks.

Key Features

• 12 points: This module includes 12 configurable points for digital inputs or outputs.
• Digital inputs: Monitor sensors, switches, or devices by detecting signal presence or absence.
• Digital outputs: Control relays, solenoids, or actuators by turning outputs on or off.
• Voltage range: It operates on 10-30 VDC, ensuring compatibility with multiple power supplies.
• Compact size: Its small footprint allows for easy integration in confined spaces.
• Reliability: Designed to endure harsh industrial environments, it delivers consistent performance.

Technical Specifications

• Manufacturer: Allen-Bradley
• Product Type: Digital I/O Combination Module
• Model Number: 1746-IO12DC
• Number of Points: 12
• Input Voltage: 10-30 VDC
• Output Type: Relay contact
• Mounting: DIN rail
• Operating Temperature: 0 to 55°C (32 to 131°F)

Applications

• Machine control: Monitor limit switches and control solenoids effectively.
• Process automation: Use it to monitor sensors and control valves with precision.
• Safety systems: Implement safety interlocks and emergency stop functions with confidence.
• Data acquisition: Gather data from sensors and devices efficiently.

Benefits

• Flexibility: Configure each point as an input or output to meet design needs.
• Reliability: Its rugged design ensures long-term performance in industrial settings.
• Compatibility: It works seamlessly with a wide variety of SLC 500 controllers.
• Cost-effective: Provides a budget-friendly solution for diverse I/O requirements.
