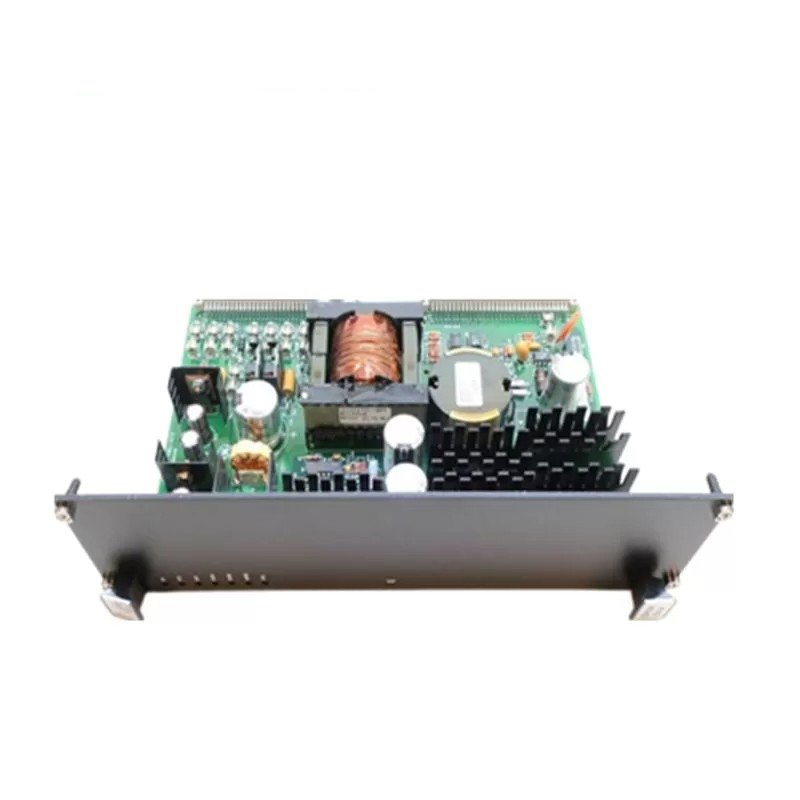

GE IS200EPSMG1A Excitation Power Supply Model
Manufacturer: GE
Product Number: IS200EPSMG1A
Category: Excitation Power Supply Module (EX2100 Series)
Function: Provides logic-level power for EX2100 excitation control systems
Input Power: 125V DC from EPDM module
Output Voltages: 5V DC, 15V DC, 24V DC
Additional Outputs: 24V DC to crowbar module, EDCF, EGDM, EDEX; isolated 70V DC for contact wetting
Mounting: EPBP backplane
System Compatibility: GE EX2100 excitation control
Application: Generator excitation control
Product Description
The IS200EPSMG1A is an Exciter Power Supply Module (EPSM) produced by GE Industrial Systems. It plays a crucial role in the EX2100 excitation control system by converting 125 VDC power into various lower voltage outputs needed by other system components.
Technical Specifications
Model Number: IS200EPSMG1A
Manufacturer: GE Industrial Systems, General Electric Company USA, GE Energy
Series: EX2100 Excitation Control
Weight: 1 lb 8 oz
Input Voltage: 125 VDC
Output Voltages: 5 VDC, 15 VDC, 24 VDC
Power Distribution: Supplies power to internal controllers (M1, M2, C) and external modules, including crowbar, EDCF, EGDM, EDEX, ECTB, and EXTB
Mounting: EPBP backplane
Compatibility: Not compatible with previous versions (version A)
Manuals: GEI-100462 (product-specific), GEH-6632 (EX2100 Users Guide)
Availability: Discontinued but available through AX Control
Repair Services: Available through various providers
