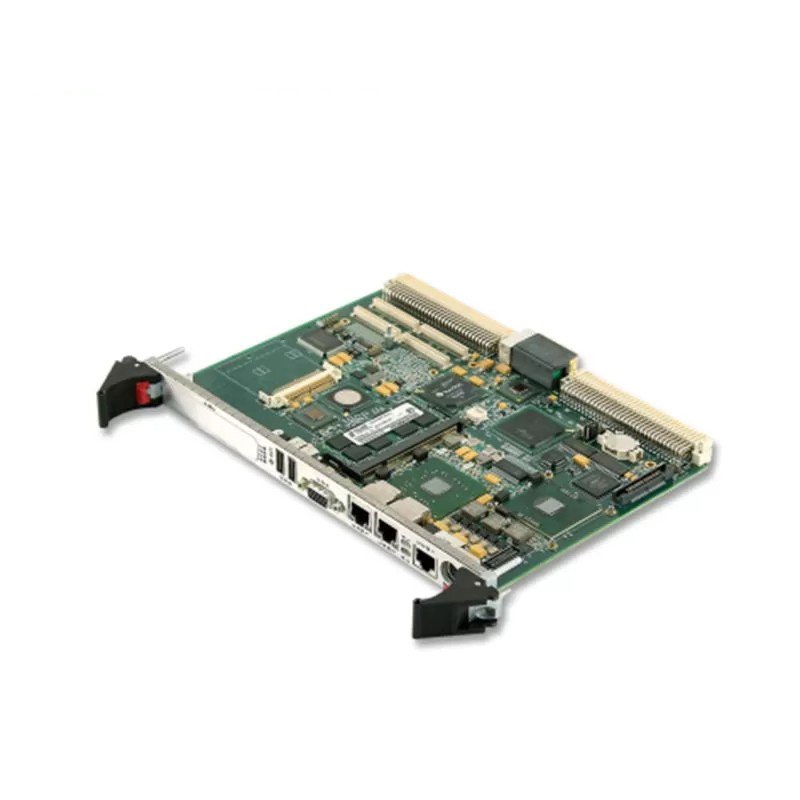

GE V7865 Single Board

The GE V7865 is a high-performance VMEbus single board computer designed for demanding applications in defense, aerospace, and homeland security. It uses an Intel Core Duo/Core 2 Duo processor, providing exceptional computing power and flexibility. The GE V7865 is available in both commercial and ruggedized versions to withstand harsh operating environments.

Key Features

• Processor: Intel Core Duo/Core 2 Duo up to 2.16 GHz
• Memory: Up to 3 GB DDR2 SDRAM, up to 4 GB CompactFlash
• Bus: 667 MHz system and memory bus, ANSI/VITA 1.5-2003 VMEbus (up to 320 MB/s)
• Networking: Optional VITA 41.3 Gigabit Ethernet
• I/O: Two RS-232/422 serial ports, four USB 2.0 ports, single PCI-X PMC site
• Compliance: RoHS compliant

Technical Specifications

• VMEbus: ANSI/VITA 1.5-2003, up to 320 MB/s
• Memory: Up to 3 GB DDR2 SDRAM (1 GB on-board), up to 4 GB CompactFlash
• Ethernet: Optional VITA 41.3 Gigabit Ethernet
• Serial Ports: Two RS-232/422
• USB: Four USB 2.0 ports
• Expansion: Single PCI-X PMC site
• Operating System: Supports multiple operating systems
• Environment: Commercial and rugged extended temperature options

Benefits

• High Performance: The Intel Core Duo/Core 2 Duo processor and 667 MHz bus deliver exceptional computing power.
• Versatility: Comprehensive I/O options and support for multiple operating systems.
• Reliability: Ruggedized options ensure operation in harsh environments.
• Expansion: A PCI-X PMC site allows additional functionality.
• Efficiency: Optimized power consumption enhances efficiency.

Applications

• Advanced defense systems
• Aerospace applications
• Homeland security
• Industrial automation
• Medical imaging
