General Information

• Product ID: 3BSE019297R1
• ABB Model Name: DSRF 197

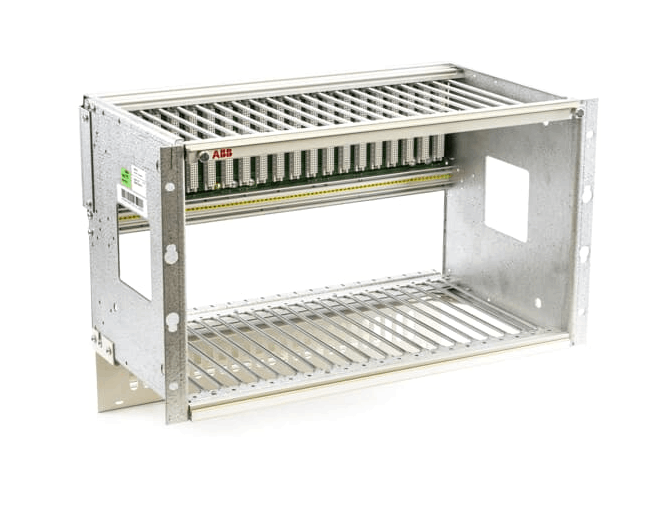

• Catalog Description: DSRF 197 Equipment Frame
• Detailed Description: DSRF 197 I/O Equipment Frame with DSBB 172B Bus Back Plane

Note: This part is exempt from compliance with the scope of 2011/65/EU (RoHS) as outlined in Article 2(4)(c), (e), (f), and (j) therein (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY – ABB Advant Master Process Control System)

Other Information

• Media Description: I/O Equipment Frame
• Product Application Type: Central Unit

Ordering

• HS Code: 853890 – Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37.- Other
• Customs Tariff Number: 85389099

Dimensions

• Product Net Depth: 283.5 mm
• Product Net Height: 418.5 mm
• Product Net Width: 238.5 mm
• Product Net Weight: 8.1 kg

Environmental Conditions

• RoHS Status: Following EU Directive 2011/65/EU
• WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
• Number of Batteries: 0
