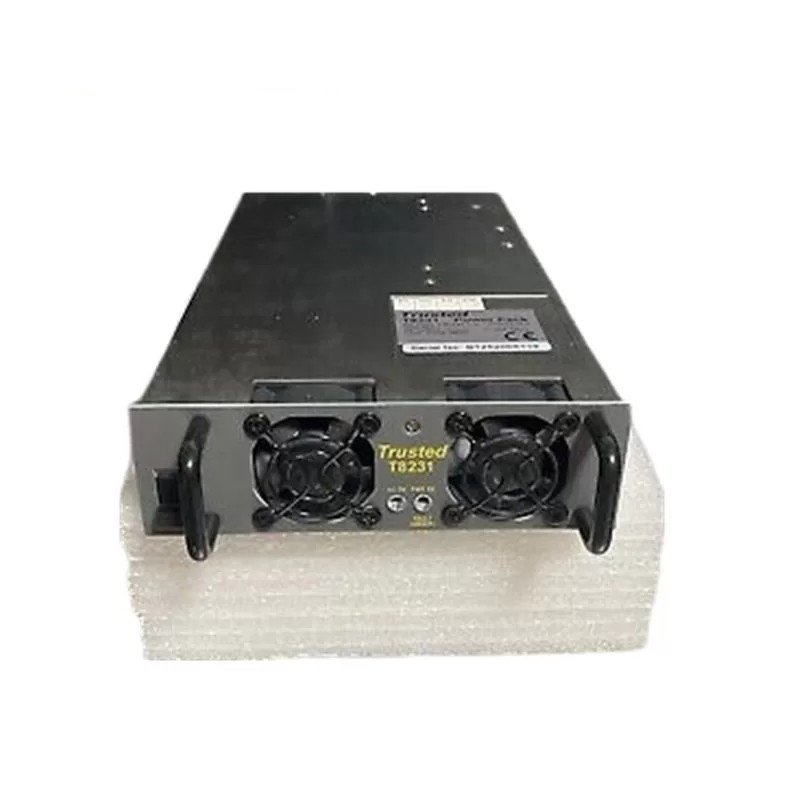

ICS Triplex T8231C Power Pack
Manufacturer: ICS Triplex (Rockwell Automation)
Product Number: T8231 / T8231C
Category: Triple Modular Redundant Power Supply Module
Power Rating: 750W continuous per module
Input Voltage: 85-264 VAC (47-63 Hz) or 100-300 VDC universal
Output Voltage: 24 VDC nominal (±5%), adjustable to 28V
Output Current: 10A max at 24VDC
Redundancy Architecture: Triple Modular Redundant (TMR) with 2oo3 voting
Efficiency: ≥85% (up to 90% typical)
Hot-Swap: Yes, zero transfer time
Safety Integrity Level: SIL 3 capable (IEC 61508)
Operating Temperature: 0°C to +60°C (standard), -40°C to +70°C (extended)
Protection Features: Overvoltage, undervoltage, overcurrent, short-circuit, thermal shutdown
Isolation Rating: 250V continuous working, reinforced isolation
Communication: RS-485/RS-232 for status monitoring
Form Factor: 19-inch 1U rackmount
Status Indication: LED indicators (Power OK, Fault, Self-Test); relay contacts for remote annunciation
Cooling: Forced air with integrated fans
Certifications: CE, UL, CSA, ATEX (system-level), TÜV SIL 3
Application: Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Fire & Gas detection, Burner Management Systems (BMS)
System Compatibility: Trusted TMR processor and I/O chassis
Product Description
The ICS Triplex T8231C is a high-quality, reliable 24Vdc 750W power supply designed for Trusted TMR systems. It meets stringent safety-critical application requirements.
Key Features
- High Efficiency: The T8231C operates efficiently, reducing energy loss and minimizing heat dissipation.
- Low Ripple and Noise: It delivers a clean output with minimal ripple and noise, ensuring stable device operation.
- Wide Operating Temperature: The power supply functions reliably across a broad temperature range, suitable for various environments.
- Universal Input: It supports a universal input voltage range, accommodating different power sources.
- Trusted TMR System Compatibility: Designed for Trusted TMR systems, it provides redundancy and fault tolerance.
Applications
The ICS Triplex T8231C excels in applications where safety and reliability are crucial, including:
- Industrial automation and control systems
- Railway signaling and control systems
- Aerospace and defense systems
- Medical equipment
- Power generation and distribution systems
Technical Specifications
- Output Voltage: 24Vdc
- Output Power: 750W
- Protection Features: Includes overcurrent, overvoltage, short circuit, and thermal protection
