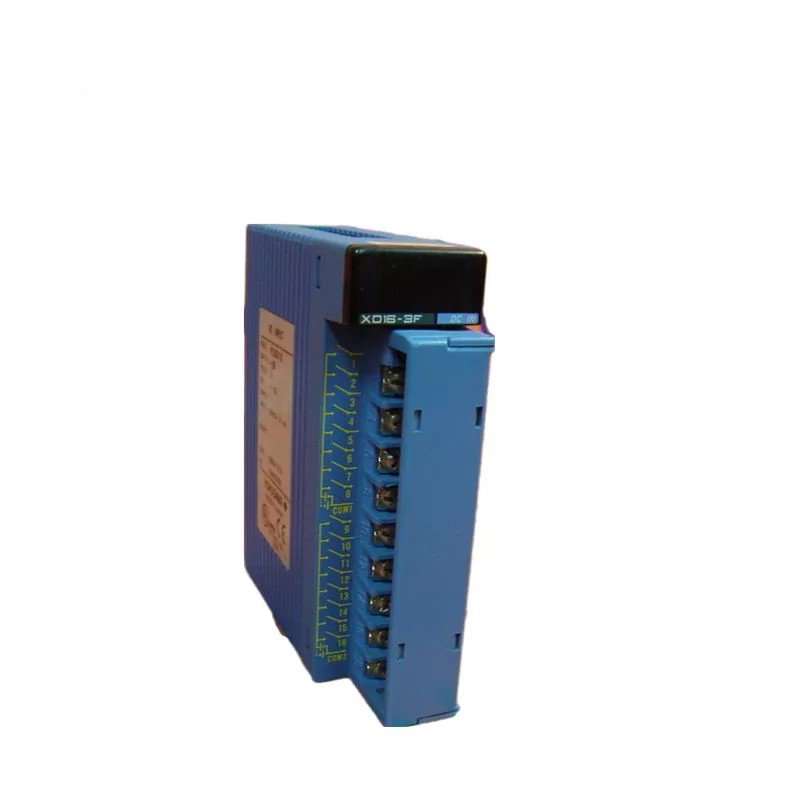

Yokogawa F3XD16-3F DC Input Module

The YOKOGAWA F3XD16-3F is a DC input module designed for the FA-M3 programmable controller system. It converts DC voltage signals from field devices into digital signals for PLC processing. This module has 16 input channels and supports a wide range of input voltages from -10 V to +10 V.

Key Features

• 16 DC input channels
• Input voltage range: -10 V to +10 V
• High accuracy: ±0.1% of full scale
• Low noise: <100 μVrms
• Fast response time: <2 ms
• Isolation between channels: 2,000 V
• DIN rail mountable

Applications of the YOKOGAWA F3XD16-3F

You can use the YOKOGAWA F3XD16-3F in a wide variety of applications. It is versatile and performs well in industrial automation, process control, machine control, and test and measurement.

Technical Specifications of the YOKOGAWA F3XD16-3F

• Input channels: 16
• Input voltage range: -10 V to +10 V
• Accuracy: ±0.1% of full scale
• Noise: <100 μVrms
• Response time: <2 ms
• Isolation between channels: 2,000 V
• Power consumption: 1.2 W
• Operating temperature: -20 to +60 °C
• Operating humidity: 5 to 95% RH (non-condensing)
• Dimensions: 90 x 30 x 25 mm
• Weight: 150 g
