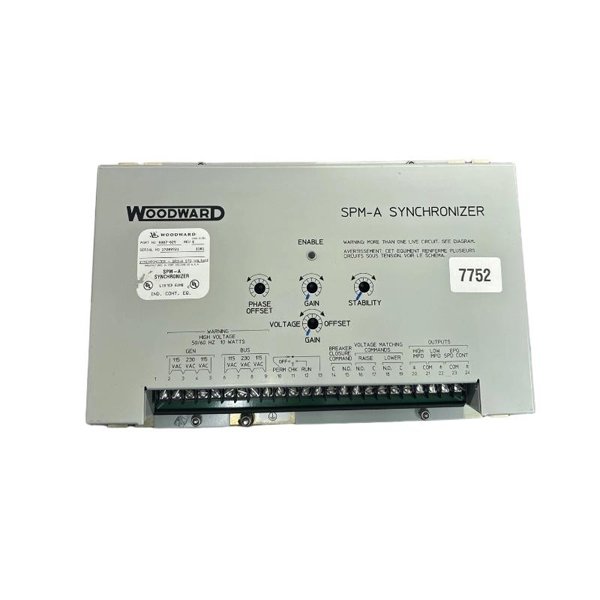

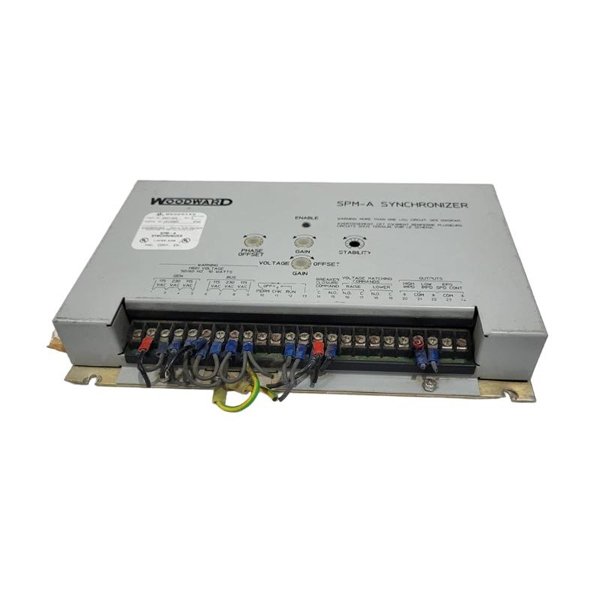

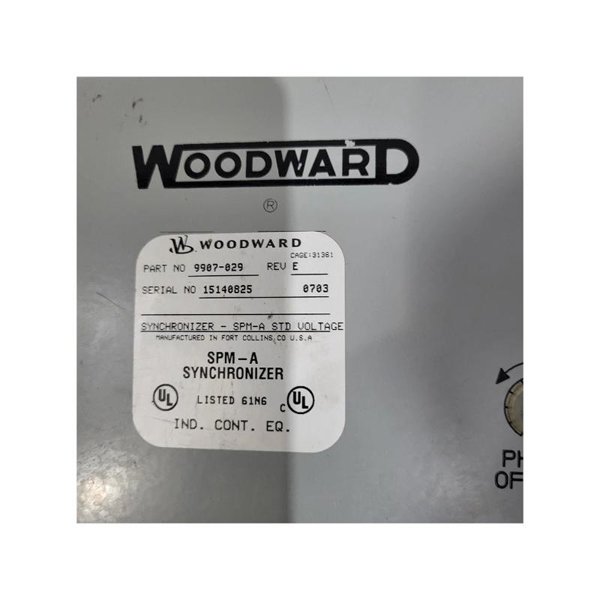

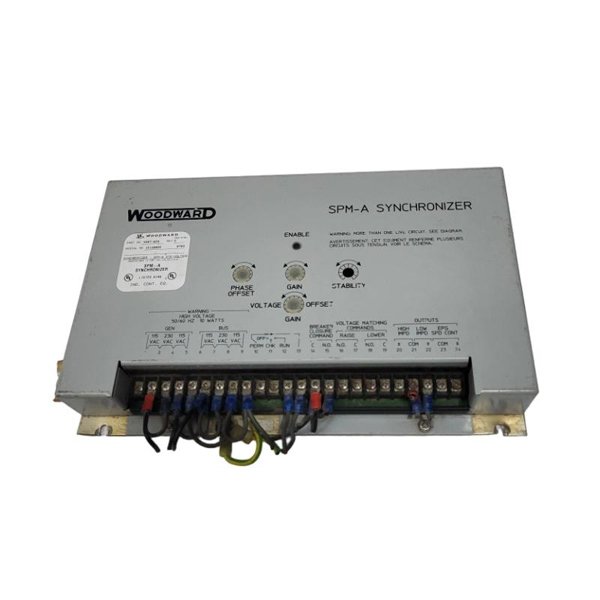

The Woodward 9907-029 SPM-A Synchronizer is a precision control system designed for synchronizing generators with the grid or with other generators. The device ensures smooth and reliable synchronization by continuously monitoring critical parameters such as frequency, voltage, and phase angle. It is widely used in power generation and industrial applications where synchronization is essential for maintaining system stability and performance.

Product Specifications

Product Applications

• Power Generation: Used in power plants and substations for synchronizing generators to the grid.

• Industrial Plants: Critical in industries where multiple generators need to be synchronized for efficient power distribution.

• Marine: Used in marine applications to synchronize shipboard power systems.

• Data Centers: Ensures reliable power backup synchronization for data center operations.

Product Advantages

1. Accurate Synchronization: Offers precise synchronization to prevent damage to generators and avoid power surges.

2. Versatile Input Range: Operates over a broad voltage input range (90–264 VAC), making it suitable for various power systems.

3. User-Friendly Interface: Simplifies configuration and setup with clear and intuitive controls.

4. Compact Design: Designed for ease of integration into various systems, with a lightweight and compact form factor.

5. Durable and Reliable: Built to withstand a wide range of environmental conditions, ensuring long-term performance in harsh environments.

6. Cost-Effective: Provides a cost-efficient solution for generator synchronization without compromising on performance.

FAQ

1. What is the main function of the Woodward 9907-029 SPM-A Synchronizer?

• The Woodward 9907-029 SPM-A Synchronizer is designed to synchronize generators with each other or with the power grid, ensuring safe and reliable power connections without overloading or damaging equipment.

2. What voltage range can the SPM-A Synchronizer handle?

• The synchronizer can handle an input voltage range of 90–264 VAC.

3. How does the synchronizer detect phase difference?

• The synchronizer uses phase comparison techniques to accurately measure the phase angle between the generator and the grid.

4. Can the synchronizer be used in marine applications?

• Yes, it is commonly used in marine applications to synchronize generators on ships, ensuring stable and reliable operation of onboard power systems.

5. Is it suitable for use in extreme temperatures?

• The SPM-A Synchronizer can operate in temperatures ranging from -10°C to +60°C, making it suitable for both indoor and outdoor environments.

6. Does the synchronizer have an analog output?

• Yes, the device features both analog and digital output options for integration with various control systems.

7. What is the synchronization method used?

• The synchronizer utilizes phase comparison for precise synchronization.

8. What are the main advantages of using the SPM-A Synchronizer over other models?

• The SPM-A Synchronizer offers a combination of accuracy, durability, and a broad input voltage range, making it a versatile choice for various applications.

9. Can the SPM-A Synchronizer be used in industrial power plants?

• Yes, it is ideal for use in industrial power plants to ensure safe synchronization of multiple generators.

10. How do I install the SPM-A Synchronizer?

• The unit is designed for easy installation, and it can be mounted on a panel with straightforward connections for both input and output.
