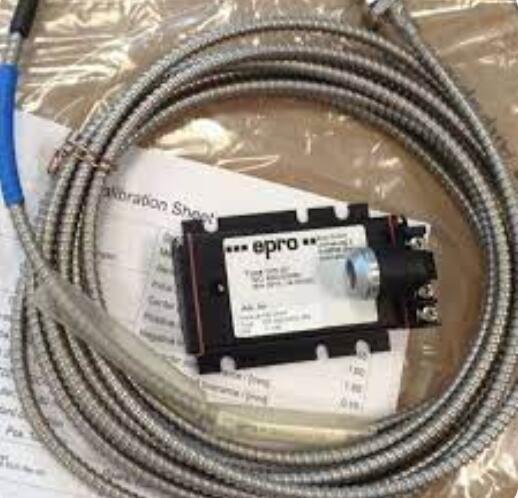

Epro PR6423/10R-131 Eddy Current Sensor

The EPRO PR6423/10R-131 serves as an 8mm eddy current sensor featuring a reverse mount configuration. Its primary purpose is the precise measurement of conductive material thickness. Operating on a non-contact measurement principle, this sensor finds its ideal application in scenarios where material accessibility is restricted or contamination risk is high.

Key Features

• Utilizes non-contact measurement technology
• Engineered with a reverse mount setup
• Comes with an 8mm diameter
• Offers an accuracy of ±0.01mm
• Boasts a repeatability of ±0.005mm
• Can operate within a temperature range of -25 to 85°C
• Suitable for storage within a temperature range of -40 to 125°C

Technical Specifications

• Employs an eddy current sensing element
• Outputs measurements as analog voltage
• Measurement range spans from 0 to 10V
• Resolution of measurements is 1mV
• Input impedance measures at 100Ω
• Output impedance stands at 50Ω
• Operational current consumption is 10mA

Applications

The EPRO PR6423/10R-131 proves its versatility in a range of applications including:

• Measuring metal thickness
• Gauging plastic thickness
• Determining paper thickness
• Assessing film thickness
• Measuring foil thickness
• Gauging wire diameter
• Measuring tube diameter
