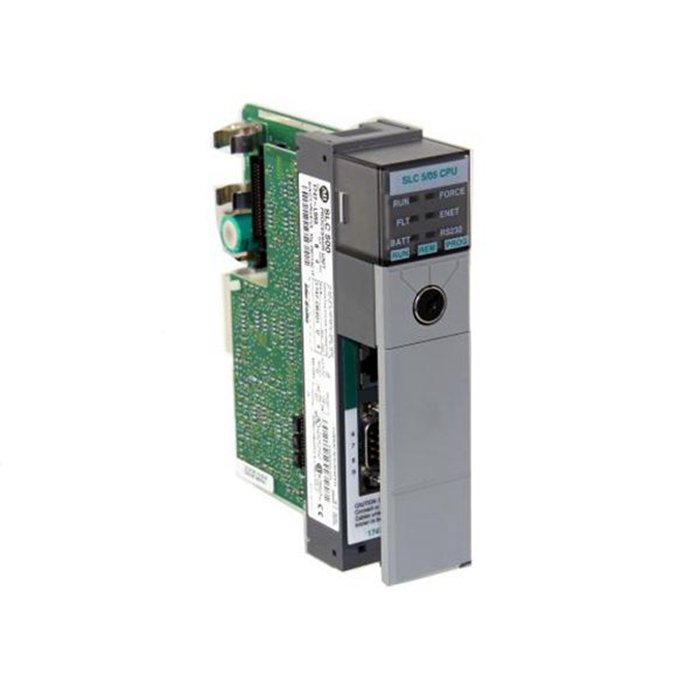

The 1747-L553 is a high-performance SLC 5/05 Processor by Allen-Bradley, equipped with 64K Memory and versatile Ethernet & RS-232 Communication Ports.

Key Specifications

• User Memory, Max: 64K words (60K for data/programming, 4K for data only)
• Total I/O Capacity: 4096 inputs + 4096 outputs (absolute maximum)
• Maximum Local Analog I/O: 480
• Program Scan Time per 1K words: 0.9 ms (typical)
• I/O Scan Time: 0.225 ms (typical)
• Maximum Local I/O Chassis: 3
• Maximum I/O Module Slots in Local I/O Chassis: 30
• Communication Ports: Ethernet & RS-232 (RS-232 can be configured for DH-485 network)
• Backup Memory: Flash
• Battery-backed RAM: Standard

Miscellaneous

The Allen-Bradley 1747-L553 SLC 5/05 Processor is a versatile solution designed to meet the demands of industrial automation. It offers substantial memory capacity, extensive I/O options, and robust communication capabilities, including Ethernet and RS-232. This processor is well-suited for a wide range of applications.

Documentation

FAQs

Q: What is the operating temperature range of the 1747-L553 module?

A: The operating temperature range of the 1747-L553 module is -40°C to 75°C.

Q: What are the dimensions and weight of the 1747-L553 module?

A: The dimensions of the 1747-L553 module are 4.75 x 3.75 x 2.25 inches, and it weighs 1 pound.

Q: Does the 1747-L553 module support any specific communication protocol?

A: Yes, the 1747-L553 module supports the following communication protocols:

• Modbus RTU
• DeviceNet
• ControlNet
• Ethernet/IP

Q: What are some of the applications for the 1747-L553 module?

A: The 1747-L553 module can be used in a variety of applications, including:

• Machine control
• Motion control
• Data acquisition
• HMI
• SCADA
• Industrial automation

Q: What are some of the benefits of using the 1747-L553 module?

A: Some of the benefits of using the 1747-L553 module include:

• Provides a powerful and versatile platform for industrial automation applications
• Supports a wide range of devices and peripherals
• Easy to install and configure
• Durable construction for long-lasting performance
