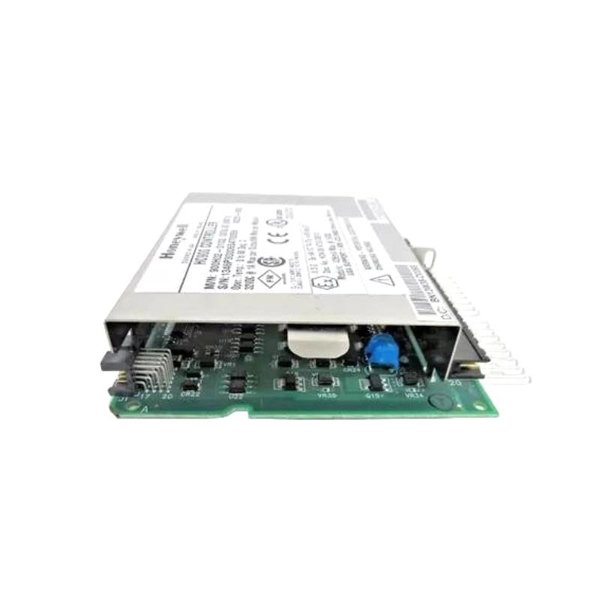

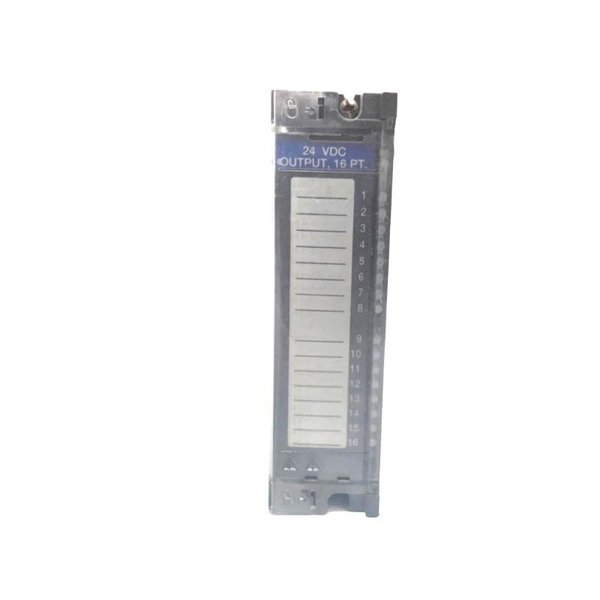

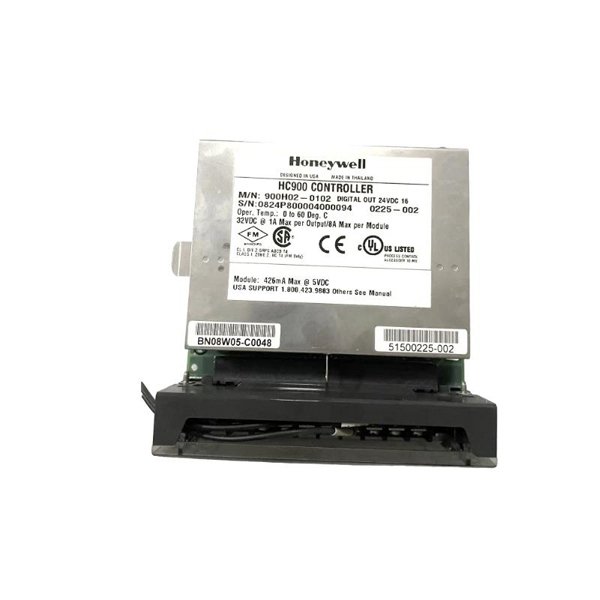

Honeywell 900H02-0102 Digital Output Module
Manufacturer:Honeywell
Product Number:900H02-0102
Product Type:Digital Output Module
Origin:USA
Dimensions:137 x 35.6 x 137.16 mm
Weight:0.425 kg
Views:79
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell 900H02-0102 is a 16-point DC digital output module from the ControlEdge HC900 series, designed for efficient low-side (current sinking) switching of digital loads. It features galvanic isolation, robust overload protection, and intelligent power switching—ideal for demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900H02-0102 |
| Output Channels | 16 (current sinking) |
| Output Voltage Range | 6.5 to 32 VDC |
| Output Type | Intelligent Power Switch (IPS) |
| Maximum Load Current | 1 A per point (8 A max. per module) |
| Peak Voltage | 34 VDC |
| Inrush Current | 4 A for 10 ms |
| Voltage Drop (ON) | 0.3 VDC @ 1 A |
| Overload Protection | Electronic, auto-reset on power cycle |
| Galvanic Isolation | 2 groups of 8 outputs |
| Response Time | 6 ms (ON and OFF) |
| LED Indicators | Per channel (green), status (tri-color) |
| Dimensions | 137 x 35.6 x 137.16 mm |
| Weight | 0.425 kg |
| Power Supply Requirement | 5V @ 340 mA, 24V @ 0 mA |
Applications
-
Industrial process control systems
-
Machine automation
-
Safety interlock and discrete signal management
-
Energy systems requiring robust switching
-
Distributed I/O in modular control environments
Product Advantages
High Channel Density: 16 outputs in compact form
Overload Protection: Prevents hardware damage
Galvanic Isolation: Enhanced safety and noise immunity
Hot Swap Capability: Replace under power without downtime
Diagnostics: Built-in LED indicators and fault detection
Flexible Power Handling: Supports wide DC voltage range
Frequently Asked Questions (FAQ)
Q1: What type of load can the 900H02-0102 switch?
A1: It supports DC loads up to 1 A per channel, including resistive and small inductive loads.
Q2: Is each output individually protected?
A2: Yes, each output includes electronic overload and over-temperature protection.
Q3: Does the module support hot swapping?
A3: Yes, it can be inserted or removed under power without system shutdown.
Q4: What does “current sinking” mean?
A4: It means the module connects the load to ground (0V) when turned on.
Q5: How are outputs grouped electrically?
A5: Outputs are isolated in two groups of 8 channels.
Q6: What does the tri-color LED indicate?
A6: Green = OK, Amber = Forced, Red = Fault.
Q7: What is the minimum load requirement?
A7: The minimum load is 0.0 mA—no load required.
Q8: What type of field wiring connection is supported?
A8: Compatible with Euro-style terminal blocks.
Q9: Is external power required?
A9: Yes, field power is needed for output operation.
Q10: What environments is this module rated for?
A10: It supports harsh environments with conformal coating (G3 class).
