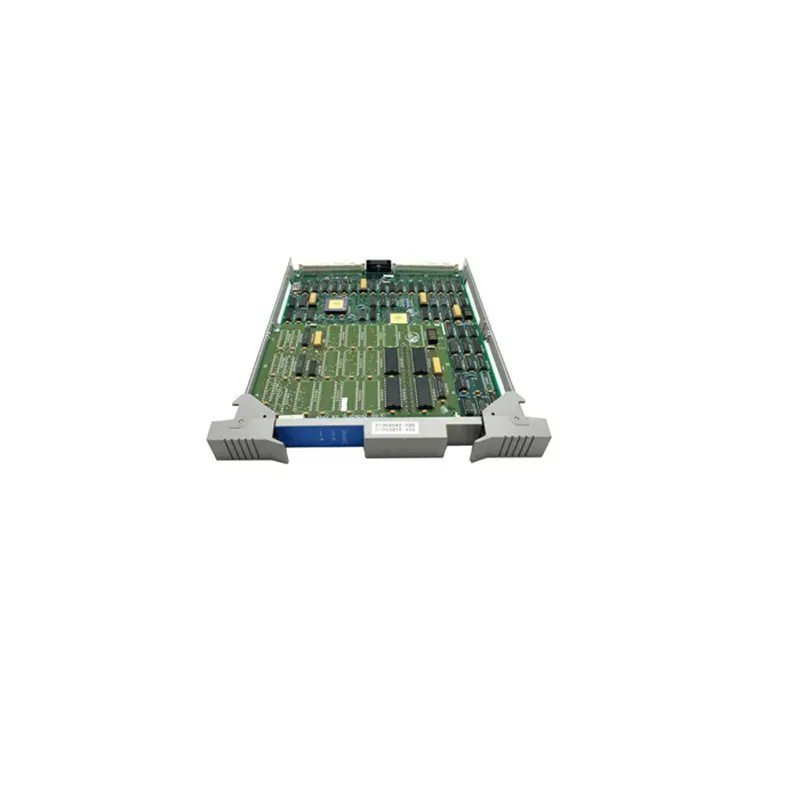

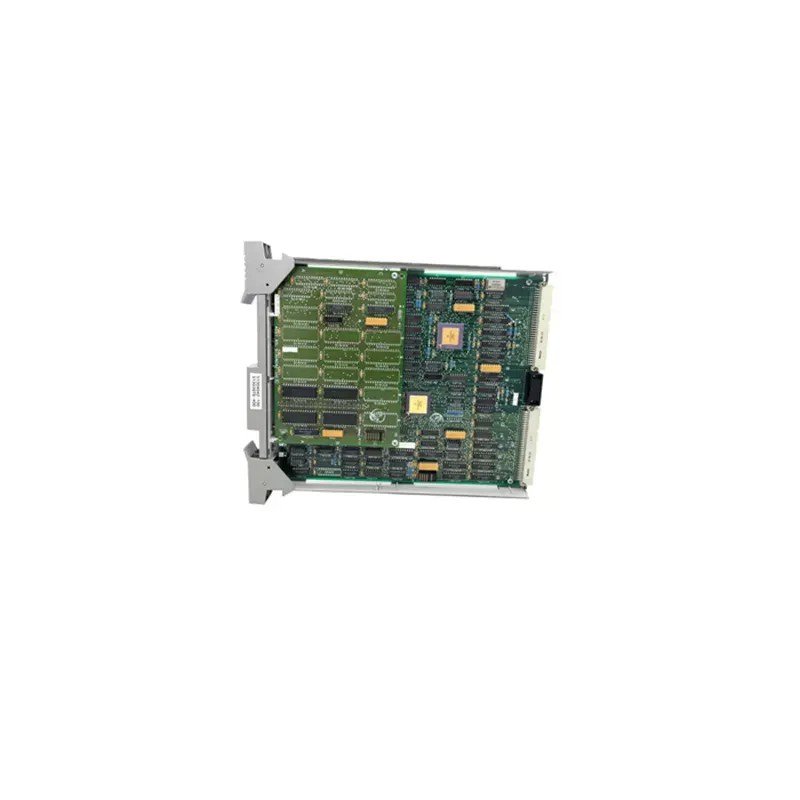

Honeywell 80363972-100 is a 24 VDC Digital Input Module with 32 points, also known as the MC-PDIY22. It’s used in conjunction with Honeywell’s Process Manager and TMR Series controllers.

General

• Manufacturer: Honeywell
• Model Number: 80363972-100
• Product Name: MC-PDIY22
• Type: Digital Input Module
• Number of Points: 32
• Voltage: 24 VDC
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions: 70 x 143 x 57 mm (2.76 x 5.63 x 2.24 in)

Input Specifications:

• Input Type: Dry contact, voltage, or current
• Voltage Range: 0 to 28 VDC
• Current Range: 0 to 5 mA
• Response Time: < 1 ms
• Isolation Voltage: 2500 VAC

Output Specifications:

• Output Type: LED indicator for each point
• LED Color: Green (normal), Red (fault)
