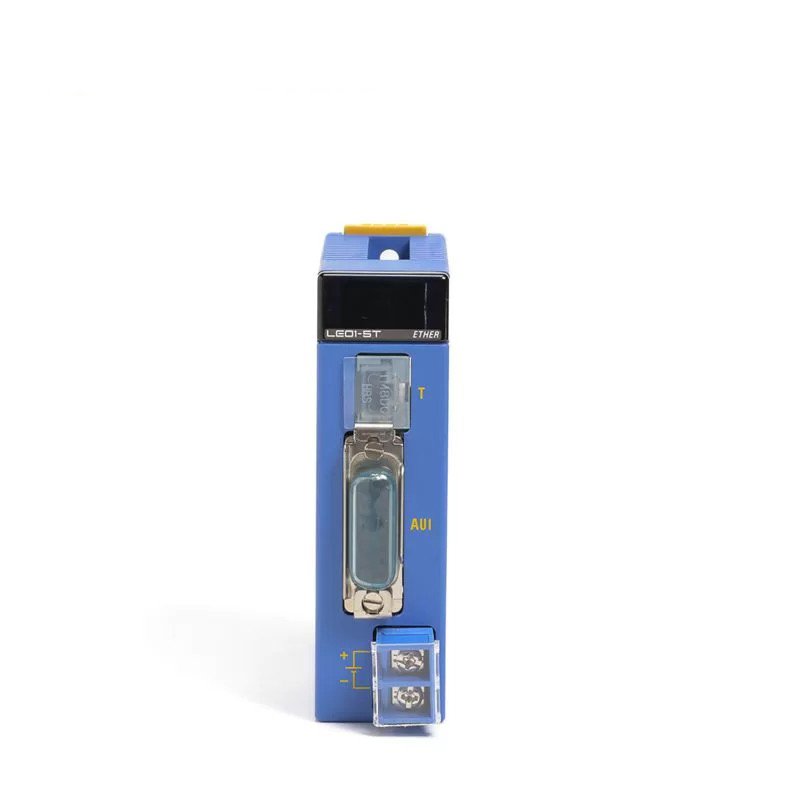

Yokogawa F3LE01-5T Ethernet Interface Module

The Yokogawa F3LE01-5T is an Ethernet interface module for the FA-M3 range-free controller. It allows the controller to communicate with other devices over an Ethernet network. The module has one RJ-45 Ethernet port and supports 10BASE-T and 100BASE-TX Ethernet protocols.

Specifications

Ethernet port: 1x RJ-45

Ethernet protocol: 10BASE-T, 100BASE-TX

Power consumption: Approx. 2.5 W

Operating temperature: -10 to 60 °C (14 to 140 °F)

Operating humidity: 10 to 90% RH (non-condensing)

Dimensions: 90 x 30 x 25 mm (3.54 x 1.18 x 0.98 in)

Weight: Approx. 100 g (3.53 oz)

Features

The Yokogawa F3LE01-5T:

• Supports Modbus/TCP communication
• Supports Ethernet/IP communication
• Supports TCP/IP communication
• Offers a web server for easy configuration
• Features auto-negotiation for 10BASE-T or 100BASE-TX speed

Applications

The Yokogawa F3LE01-5T excels in various fields:

• Factory automation
• Process control
• Building automation
• Machine control
