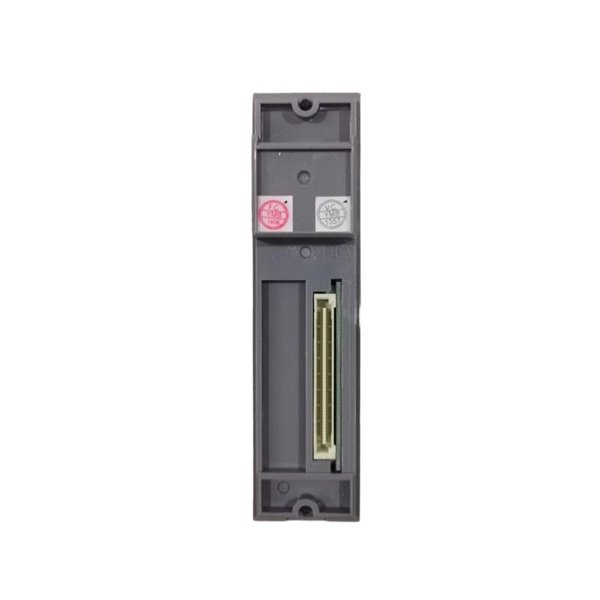

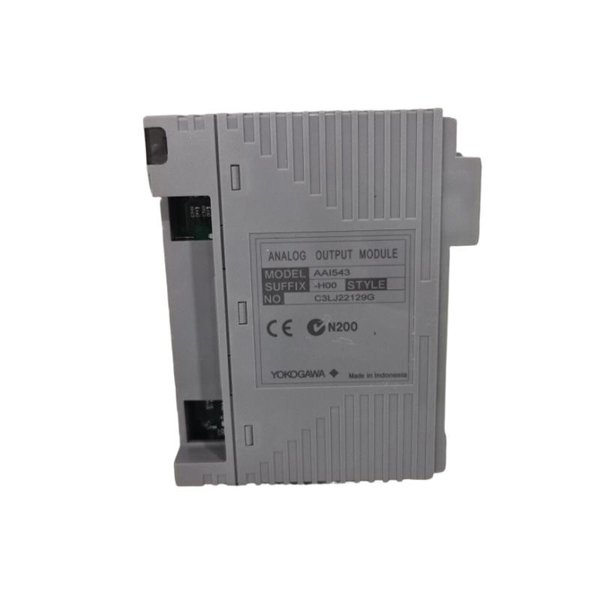

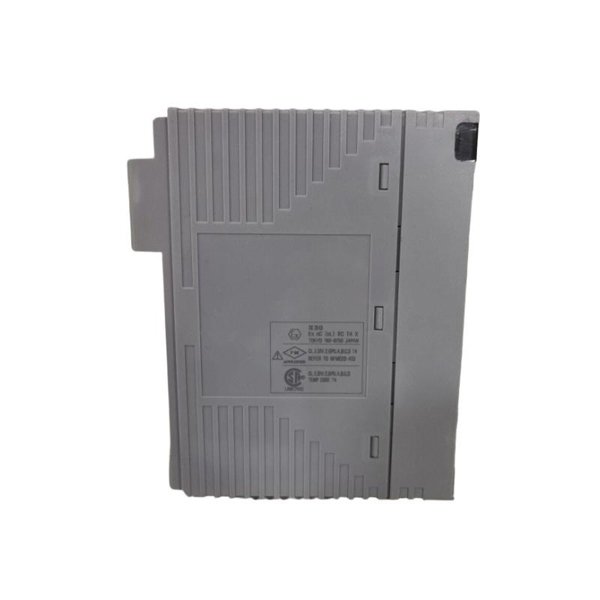

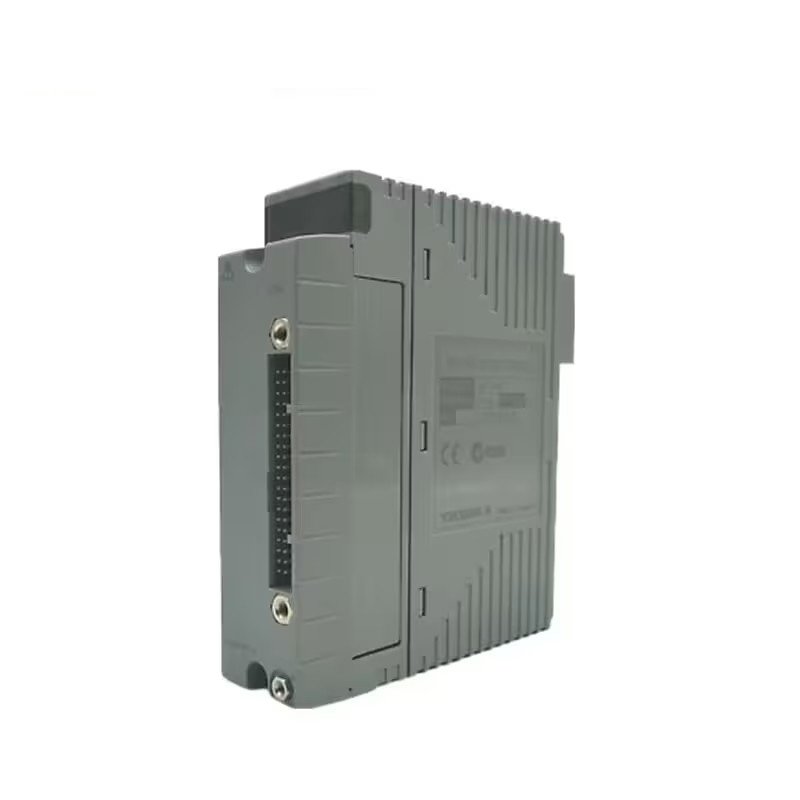

Yokogawa AAI543-H00 S1 Analog Output Module

The Yokogawa AAI543-H00 S1 is a high-performance analog output module designed for use in Yokogawa’s CENTUM VP and ProSafe-RS control systems. With advanced signal accuracy, multi-channel output, and HART communication capabilities, the module is ideal for transmitting precise control signals to field devices such as valves, actuators, and I/P converters. Its compatibility with fieldbus I/O (FIO) architecture ensures seamless integration into safety and non-safety-critical applications, enhancing system flexibility and operational reliability.

Key Features

• 8-channel analog output module with HART communication support

• Output signal range: 4–20 mA (current output)

• Channel-to-channel and channel-to-ground isolation

• HART pass-through and device communication supported

• High accuracy and linearity over full range

• Supports online maintenance with hot-swappable design

• Advanced self-diagnostics and fault detection

• Compatible with both CENTUM VP and ProSafe-RS platforms

Technical Specifications

Industry Applications

• Process control in oil & gas and petrochemical facilities

• Power plant turbine and boiler automation

• Water and wastewater treatment systems

• Food & beverage and pharmaceutical production

• Emergency shutdown (ESD) systems in safety applications

• Batch control and continuous process systems

Frequently Asked Questions (FAQ)

1. What is the primary function of the AAI543-H00 S1?

   It converts control system outputs into precise 4–20 mA signals for field devices.

2. How many output channels does it support?

   The module supports 8 isolated analog output channels.

3. Is HART communication supported?

   Yes, HART pass-through and command communication are supported.

4. Can the module be used in safety instrumented systems (SIS)?

   Yes, when used with ProSafe-RS, it supports SIL applications.

5. Does it provide isolation?

   Yes, channel-to-channel and channel-to-ground isolation are provided.

6. Is online maintenance supported?

   Yes, the module is hot-swappable without interrupting system operations.

7. What is the output signal range?

   4–20 mA DC current output.

8. Does the module have fault diagnostics?

   Yes, it detects open circuits, output failures, and HART errors.

9. Is it compatible with CENTUM VP systems?

   Yes, it is fully compatible with CENTUM VP and ProSafe-RS systems.

10. What is the operating temperature range?

    0 °C to +60 °C (with storage up to –20 °C).
