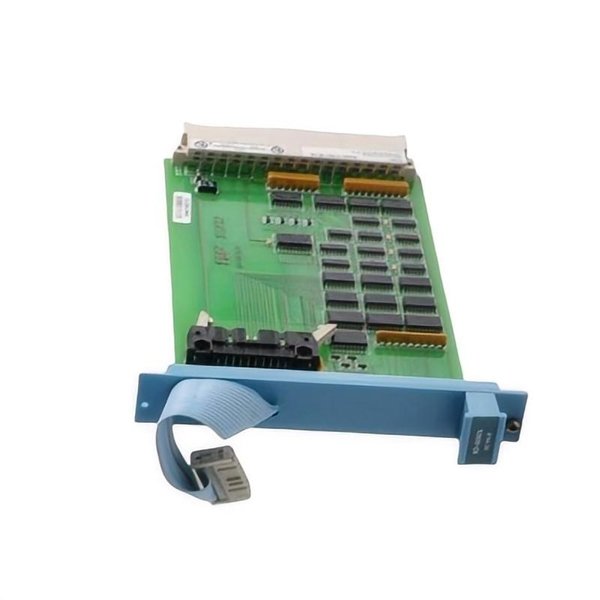

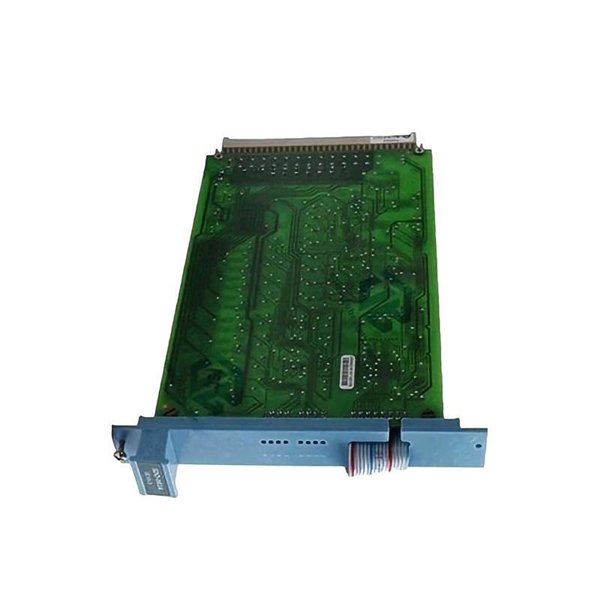

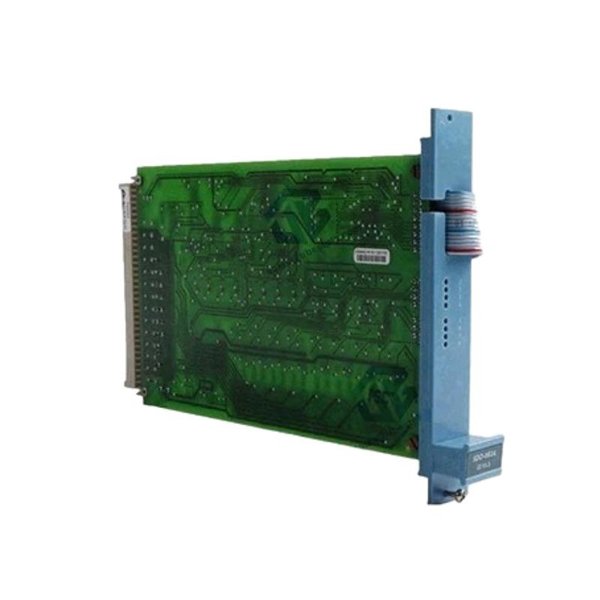

The Honeywell FS-RO-1024 Relay Output Module is a high-performance relay output module designed for industrial automation and control systems. It provides reliable relay outputs for signaling, alarm activation, and control functions in complex process control environments.

The module is engineered to integrate seamlessly with Honeywell automation systems, including PLCs and distributed control systems. Its precise switching, high isolation, and robust construction make it suitable for critical industrial applications requiring reliable relay actuation for machinery, process equipment, and instrumentation.

Product Specifications

Applications

• Industrial Automation – controlling machinery and actuators in manufacturing lines.

• Process Control – providing relay outputs for alarms, shutdowns, and status signaling.

• PLC Integration – extending programmable logic controller output capabilities.

• Building Automation – controlling HVAC, lighting, and security systems.

• Remote Monitoring Systems – acting as remote relay output interface for distributed equipment.

• Safety and Alarm Systems – activating safety devices, sirens, or warning indicators.

Advantages

• Reliable Relay Outputs: Provides accurate and stable switching for industrial applications.

• High Isolation: 1500 V isolation between coil and contacts reduces risk of electrical interference.

• DIN Rail Mountable: Simplifies installation in industrial panels.

• Flexible Output Configuration: 8–16 configurable relay outputs to suit different control requirements.

• Compact Design: Minimizes space usage in control cabinets.

• Durable Construction: Polycarbonate housing and metal components ensure long-term reliability.

• Seamless Integration: Fully compatible with Honeywell automation and PLC systems.

Frequently Asked Questions (FAQ)

1. What is the maximum switching voltage for each relay?

   Each relay can switch up to 250 V AC or 30 V DC.

2. What is the maximum switching current per channel?

   The module supports up to 5 A per relay output.

3. How many outputs does the FS-RO-1024 provide?

   The module provides 8–16 configurable relay outputs.

4. What type of relays are used in this module?

   SPST or SPDT electromechanical relays are employed.

5. Is the module suitable for DIN rail mounting?

   Yes, it is designed for standard DIN rail installation.

6. What is the isolation voltage between coil and contacts?

   The isolation is rated at 1500 V.

7. Can the module be used for alarm and signaling applications?

   Yes, it is designed for alarms, status signaling, and process notifications.

8. Does it integrate with Honeywell PLCs and automation systems?

   Yes, it works seamlessly with Honeywell control systems.

9. What is the typical relay response time?

   The typical response time is 5 ms.

10. Can the module operate in industrial temperature ranges?

    Yes, it operates between -20°C and +60°C.
